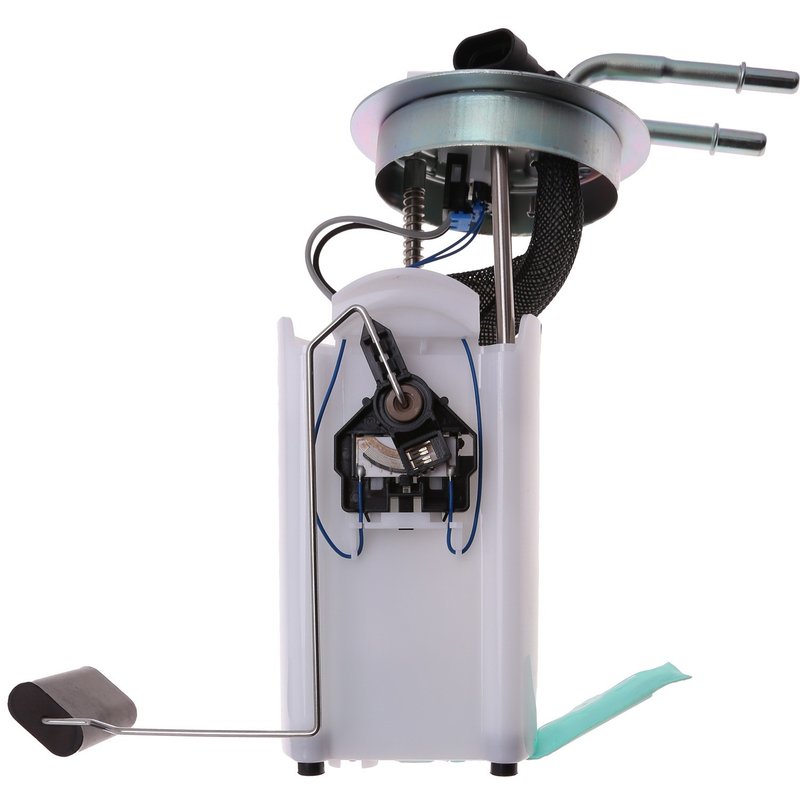

Carter P75023M Fuel Pump Module Assembly

Brand Carter P75023M
Connector Color White
Connector Gender Female
Connector Shape Oval
Fuel Filter Included No
Fuel Sending Unit Included Yes
Fuel Tank Pressure Sensor Included Yes
Gasket Or Seal Included Yes
Grade Type Regular
Height 235
Housing Material POM
Inlet Quantity 1
Inlet Type Strainer
Internal Or External Strainer External
Minimum Flow Rating 20
Minimum Flow Rating 20.0
Minimum Pressure 60.0
Mounting Hardware Included No
Outlet Fitting Thread Size 3/8
Outlet Outside Diameter 9.49
Outlet Quantity 1
Outlet Type Quick Connect
Pump Type Electric
Regulator Included No
Resistance Ohms Full 250.0
Strainer Included Yes
Terminal Gender Male
Terminal Quantity 4
Terminal Type Spade
Top Mount Diameter 115.0
Universal Or Specific Fit Specific
Voltage 12V
Wire Harness Included Yes
Wire Quantity 4
Wiring Harness Length 445.0
Fits Cadillac, Chevrolet, and GMC · 11 vehicles

OE fit, form, and function. Built as a specific-fit fuel pump module assembly.

Complete module assembly. Includes the fuel sending unit, strainer, gasket, and harness.

Electric 12V pump. Delivers consistent fuel flow with a quick-connect outlet.

Cross-references Airtex Fuel Pumps E3556M, Autobest F2567A and Bosch 67317 for the same application. See all 26.

$136.86Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $136.86
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter Fuel Pump Module Assembly P75023M

The Carter P75023M fuel pump module assembly is a specific-fit replacement built for OE-style fit, form, and function. It includes the fuel sending unit, gasket or seal, strainer, wire harness, and fuel tank pressure sensor for a complete service on select GM full-size SUVs and trucks.

Key Features

  • Electric fuel pump module assembly with 12V operation
  • Specific fit for direct replacement on listed applications
  • Fuel sending unit included for fuel level signal service
  • Fuel tank pressure sensor included
  • Strainer and gasket or seal included
  • Wire harness included with 4-wire, female oval connector
  • Quick-connect outlet and 3/8 in. outlet fitting thread size
  • POM housing material with external strainer design
  • Minimum pressure rating of 60.0 and minimum flow rating of 20.0

Detailed Description

Carter P75023M is a fuel pump module assembly engineered for direct replacement in select 2002-2003 Chevrolet Avalanche 1500, 2002-2003 Chevrolet Suburban 1500, 2002-2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2002-2003 GMC Yukon XL 1500 applications. It is built to match OE fit, form, and function expectations while supporting the fuel delivery and tank-sensing needs of the vehicle. The module uses a quick-connect outlet, a 4-terminal spade connection, and a white female connector for straightforward integration with the factory harness layout. Carter P75023M is a practical choice when replacing a worn fuel pump module on GM trucks and SUVs that require a specific-fit assembly with the sender and pressure sensor included.

This part cross-references Bosch 67317 and Delphi FG0273 for the same application.

What It Helps Address

  • Hard starting caused by weak fuel delivery
  • Engine stalling related to inconsistent pump output
  • Fuel gauge inaccuracies from a failing sending unit
  • Fuel pressure sensor faults tied to the tank module
  • Fuel leaks at the module seal or outlet connection

Installation Notes and Tips

Verify the vehicle’s connector style, outlet type, and tank opening dimensions before installation. This module uses a specific-fit design, so confirm the application against the listed GM models and years before service. Inspect the tank, seal surface, and electrical connections during replacement, and transfer only the components required by the vehicle service procedure.

Quality Assurance

Carter’s fuel systems program focuses on OE-style fitment and application coverage, with problem-solving features built into the module design. The P75023M is intended for direct replacement service on the listed vehicles and is built to support consistent fuel delivery and sender operation.

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2003CadillacEscalade ESV6.0LV8—N/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2003CadillacEscalade EXT6.0LV8—N/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2003ChevroletAvalanche 15005.3LV8GASN/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2003ChevroletSuburban 15005.3LV8GASN/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2003GMCYukon XL 15006.0LV8—N/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2003GMCYukon XL 15005.3LV8GASN/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2002CadillacEscalade EXT6.0LV8—N/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2002ChevroletAvalanche 15005.3LV8GASN/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2002ChevroletSuburban 15005.3LV8GASN/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2002GMCYukon XL 15006.0LV8—N/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
2002GMCYukon XL 15005.3LV8GASN/AIncludes Tank Seal, Connectors, and Wire Harness; without Robust Fuel System Sender
Directly replaces or cross-references 26 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3556MAutobest — F2567ABosch — 67317Delphi — FG0273Dorman - OE Solutions — 2630376GMB — 530-2130Spectra Premium — SP61088MUS Motor Works — USEP3556M402-P3556M953-00351500782378482920064191800992534015625345024A30041AFS0853SB11111039TGC0201MC8028M2246724MPA30041MU1738P0041MRE0853S
