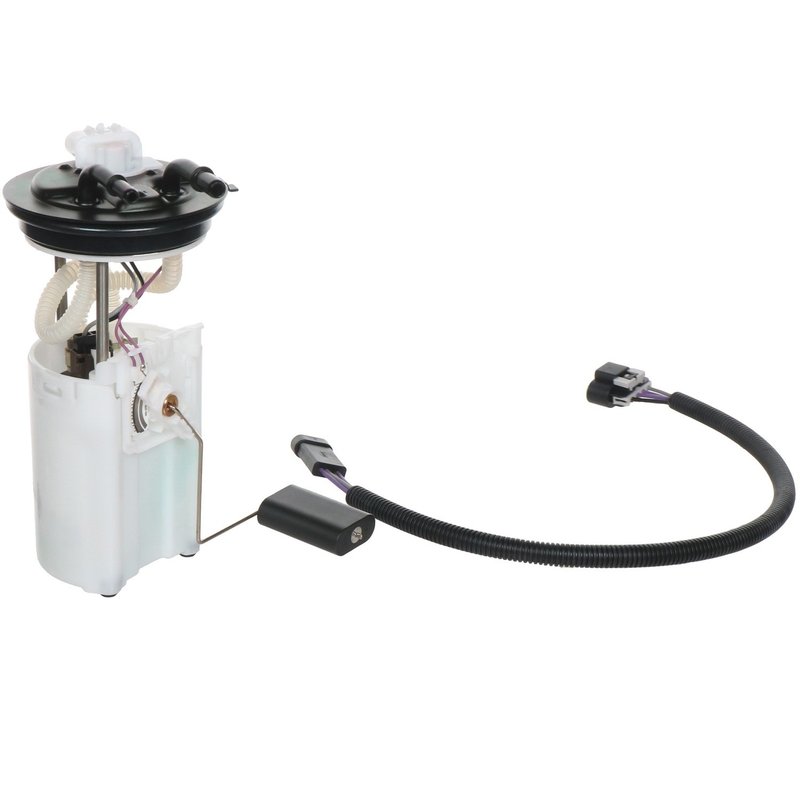

Carter P75053M Fuel Pump Module Assembly
| Brand | Carter P75053M |
|---|---|
| Connector Color | White |
| Connector Gender | Male |
| Connector Shape | Oval |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Inlet Type | Strainer |
| Lock Ring Included | No |
| Minimum Flow Rating | 20 |
| Minimum Flow Rating | 30 |
| Minimum Pressure | 60.0 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Terminal Type | Spade |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | Yes |
| Fits | Buick, Chevrolet, GMC, Isuzu, and Oldsmobile · 29 vehicles |
OE fit, form, and function. Built as a specific-fit fuel pump module assembly.
Electric pump. Delivers dependable 12V fuel delivery with a 60.0 minimum pressure rating.
Complete module assembly. Includes a fuel sending unit, strainer, gasket or seal, and wire harness.
Cross-references Airtex Fuel Pumps E3549M, Autobest F2550A and Bosch 67415 for the same application. See all 33.
Carter P75053M Fuel Pump Module Assembly
The Carter P75053M fuel pump module assembly is a specific-fit replacement for select GM and Isuzu applications, including the 2002-2004 Chevrolet Trailblazer, 2002-2004 GMC Envoy, and 2003-2004 Isuzu Ascender. Built for OE fit, form, and function, it combines the pump, sending unit, strainer, gasket/seal, and wire harness for a direct-service fuel tank repair.
Key Features
- Electric 12V fuel pump module assembly
- Specific fit for confirmed vehicle applications
- Fuel sending unit included
- Strainer included with quick-connect outlet
- Gasket or seal included
- White oval connector with male connector and terminal design
- Blade and spade terminal types, 4 terminals total
- Negative ground configuration
- Minimum pressure rating: 60.0
- Minimum flow rating: 20 to 30
- 3/8 outlet fitting thread size
- Wire harness included
Detailed Description
Carter P75053M is a regular-grade fuel pump module assembly engineered for direct replacement in the fuel tank system. It is built for vehicles that require a specific-fit module with an integrated sending unit and strainer, helping restore fuel delivery and fuel level signal performance in one service part. This part cross-references Airtex Fuel Pumps E3549M and Bosch 67415 for the same application.
Compatible With 2002-2004 Chevrolet Trailblazer, 2002-2004 GMC Envoy, 2003-2004 Isuzu Ascender, 2004 Buick Rainier, 2003-2004 Chevrolet SSR, 2002-2004 Chevrolet Trailblazer EXT, 2002-2004 GMC Envoy XL, 2004 GMC Envoy XUV, and 2002-2004 Oldsmobile Bravada. The Carter P75053M fuel pump module assembly is also a fitment match for drivers searching for a replacement fuel pump module assembly for Chevrolet Trailblazer and GMC Envoy fuel system service.
What It Helps Fix
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent pump output
- Incorrect or erratic fuel level readings from a worn sending unit
- Fuel starvation under load from restricted in-tank flow
- Fuel system service needs tied to a damaged module seal or strainer
Installation Notes and Tips
Verify connector style, outlet type, and tank configuration before installation. Replace the tank seal during service and inspect the fuel tank for contamination that could shorten pump life. Because mounting hardware and lock ring are not included, reuse or source the required service components as needed. Confirm vehicle-specific fitment for the exact year, make, and model before ordering the Carter P75053M.
Quality Assurance
Carter Fuel Systems focuses on OE-style fit, form, and function with broad vehicle coverage and problem-solving fuel system components. The P75053M follows that approach with application-specific construction for confirmed GM and Isuzu fitments.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Buick | Rainier | 4.2L | L6 | N/A | — |
| 2004 | Buick | Rainier | 5.3L | V8 | N/A | — |
| 2004 | Chevrolet | SSR | 5.3L | V8 | N/A | — |
| 2004 | Chevrolet | Trailblazer | 4.2L | L6 | N/A | — |
| 2004 | Chevrolet | Trailblazer EXT | 4.2L | L6 | N/A | — |
| 2004 | Chevrolet | Trailblazer EXT | 5.3L | V8 | N/A | — |
| 2004 | GMC | Envoy | 4.2L | L6 | N/A | — |
| 2004 | GMC | Envoy XL | 5.3L | V8 | N/A | — |
| 2004 | GMC | Envoy XL | 4.2L | L6 | N/A | — |
| 2004 | GMC | Envoy XUV | 4.2L | L6 | N/A | — |
| 2004 | GMC | Envoy XUV | 5.3L | V8 | N/A | — |
| 2004 | Isuzu | Ascender | 4.2L | L6 | N/A | — |
| 2004 | Isuzu | Ascender | 5.3L | V8 | N/A | — |
| 2004 | Oldsmobile | Bravada | 4.2L | L6 | N/A | — |
| 2003 | Chevrolet | SSR | 5.3L | V8 | N/A | — |
| 2003 | Chevrolet | Trailblazer | 4.2L | L6 | N/A | — |
| 2003 | Chevrolet | Trailblazer EXT | 4.2L | L6 | N/A | — |
| 2003 | Chevrolet | Trailblazer EXT | 5.3L | V8 | N/A | — |
| 2003 | GMC | Envoy | 4.2L | L6 | N/A | — |
| 2003 | GMC | Envoy XL | 5.3L | V8 | N/A | — |
| 2003 | GMC | Envoy XL | 4.2L | L6 | N/A | — |
| 2003 | Isuzu | Ascender | 4.2L | L6 | N/A | — |
| 2003 | Isuzu | Ascender | 5.3L | V8 | N/A | — |
| 2003 | Oldsmobile | Bravada | 4.2L | L6 | N/A | — |
| 2002 | Chevrolet | Trailblazer | 4.2L | L6 | N/A | — |
| 2002 | Chevrolet | Trailblazer EXT | 4.2L | L6 | N/A | — |
| 2002 | GMC | Envoy | 4.2L | L6 | N/A | — |
| 2002 | GMC | Envoy XL | 4.2L | L6 | N/A | — |
| 2002 | Oldsmobile | Bravada | 4.2L | L6 | N/A | — |
