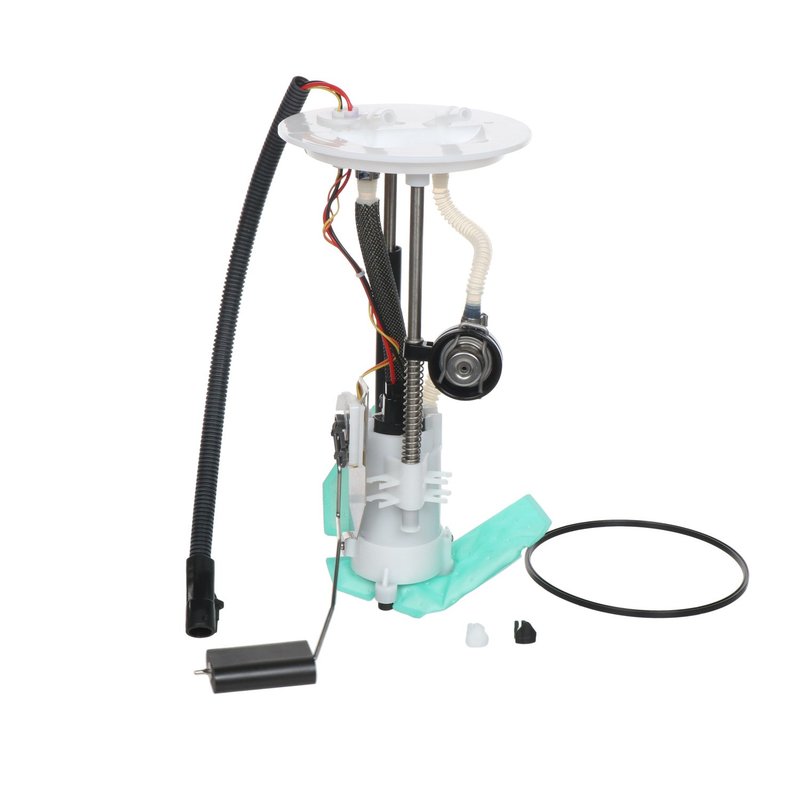

Carter P76022M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Expedition

The Carter P76022M fuel pump module assembly is designed specifically for Ford Expedition models, ensuring precise fitment and dependable fuel delivery. This electric fuel pump module includes essential components to maintain optimal engine performance and fuel efficiency.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical grounding
• Pin-type terminals with four wires for secure connections
• External strainer inlet type with included strainer for fuel filtration
• Round connector shape with male terminals and quick connect outlet
• Pom housing material for durability and resistance
• Includes gasket or seal and wire harness for installation readiness
• Designed for 12V electrical systems with a minimum flow rating of 26 and minimum pressure of 55 psi

Detailed Features and Specifications

The Carter P76022M fuel pump module assembly is engineered to meet the specific requirements of Ford Expedition vehicles. It features an electric pump type with a 12-volt rating, delivering a minimum flow of 26 gallons per hour and maintaining a minimum pressure of 55 psi. The module includes a fuel sending unit for accurate fuel level monitoring and an external strainer inlet to protect the fuel system from contaminants. The housing is made from durable POM material, ensuring long-lasting performance under typical operating conditions. The assembly uses pin-type terminals with four wires and a round connector shape, facilitating straightforward electrical connections. Additionally, the module comes with a gasket or seal and a wire harness, although mounting hardware and lock ring are not included.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Expedition models
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Addresses fuel delivery problems causing engine hesitation or stalling
• Prevents fuel contamination with included external strainer
• Restores proper fuel pressure for consistent engine performance

Installation Notes and Tips

When installing the Carter P76022M fuel pump module assembly, ensure the vehicle is properly grounded as it requires a negative ground system. The included gasket or seal should be carefully positioned to prevent fuel leaks. Use the provided wire harness and pin-type terminals for secure electrical connections. Note that mounting hardware and lock ring are not included, so retain original components or source replacements as needed. The quick connect outlet simplifies fuel line attachment, but verify compatibility with your existing fuel lines. Always follow manufacturer guidelines and safety precautions during installation.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P76022M part undergoes rigorous quality control to ensure reliable operation in Ford Expedition vehicles. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
