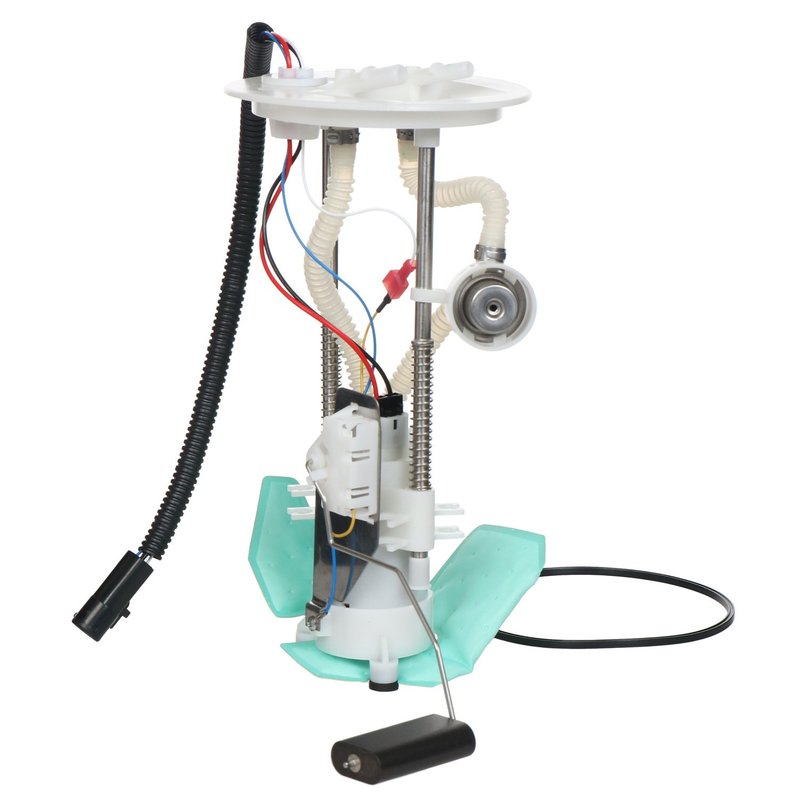

Carter P76023M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Expedition

The Carter P76023M fuel pump module assembly is designed specifically for Ford Expedition models, providing a precise fit and dependable fuel delivery. This electric fuel pump module includes essential components to maintain optimal fuel system performance.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• Pin-type terminals with four male terminals for secure wiring
• External strainer inlet type with one inlet and one quick connect outlet
• Includes gasket and wire harness for installation readiness
• Designed for 12-volt electrical systems with a minimum flow rating of 23 and minimum pressure of 50 psi

Detailed Features and Specifications

The Carter P76023M fuel pump module assembly is engineered to meet the specific requirements of Ford Expedition vehicles. It features a regular grade electric pump that operates on a 12-volt system, ensuring consistent fuel flow and pressure. The module includes a fuel sending unit for accurate fuel level monitoring and an external strainer inlet to protect the pump from debris. The four-pin male terminals and round connector shape facilitate straightforward electrical connections. While the regulator and mounting hardware are not included, the assembly comes with a gasket and wire harness to support installation. The quick connect outlet and 3/8-inch outlet fitting thread size allow for compatibility with factory fuel lines.

Compatible Applications and Common Uses

• Replacement of faulty or worn fuel pump modules in Ford Expedition models
• Resolving fuel delivery issues such as engine stalling or hesitation
• Fixing inaccurate fuel gauge readings due to a malfunctioning sending unit
• Addressing fuel pump noise or failure symptoms
• Restoring proper fuel pressure to improve engine performance

Installation Notes and Tips

Installation of the Carter P76023M fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket should be replaced to maintain a proper seal and prevent leaks. Verify the four-pin male terminals align correctly with the vehicle’s wiring harness. Since mounting hardware and regulator are not included, reuse existing components if they are in good condition or source replacements as needed. Properly secure the quick connect outlet to avoid fuel leaks.

Quality Assurance and Warranty Information

Carter manufactures the P76023M fuel pump module assembly to meet OEM specifications for Ford Expedition vehicles. The product undergoes quality control testing to ensure reliable operation and durability. While specific warranty details are not provided here, Carter typically offers limited warranties on their fuel delivery components. Refer to Carter’s official documentation for exact warranty terms.
