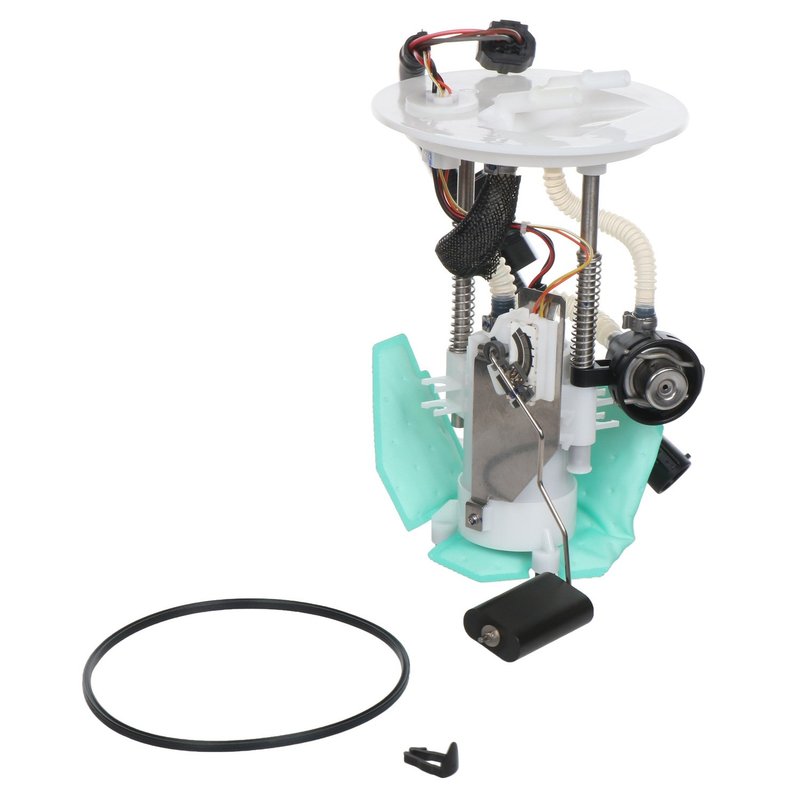

Carter P76026M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Explorer and Mercury Mountaineer

The Carter P76026M fuel pump module assembly is designed specifically for Ford Explorer and Mercury Mountaineer models. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored for your vehicle's fuel system requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical grounding
• Pin-type terminals with 8 male connectors for secure wiring
• External strainer inlet type with quick connect outlet for efficient fuel flow
• Includes gasket and wire harness for streamlined installation
• Designed for 12V electrical systems with a minimum flow rating of 21 and minimum pressure of 65 psi
• Specific fit for Ford Explorer and Mercury Mountaineer models

Detailed Product Features and Specifications

The Carter P76026M fuel pump module assembly is engineered to meet the precise fuel delivery needs of your Ford Explorer or Mercury Mountaineer. This module includes a fuel sending unit to provide accurate fuel level data to your dashboard. It operates on a 12-volt system with a minimum flow rating of 21 gallons per hour and a minimum pressure of 65 psi, ensuring steady fuel supply under various driving conditions.

The assembly features an external strainer inlet and a quick connect outlet, facilitating efficient fuel filtration and connection. The pin-type terminals include eight male connectors arranged in a round connector shape, compatible with the vehicle’s wiring harness, which is included for ease of installation. While the regulator is not included, the module is designed for regular grade fuel and negative ground electrical systems.

Compatible Vehicles and Common Applications

• Replacement for failing or noisy fuel pumps in Ford Explorer models
• Resolves fuel delivery issues causing engine hesitation or stalling in Mercury Mountaineer
• Addresses inaccurate fuel gauge readings due to faulty sending units
• Fixes fuel system leaks by replacing worn gaskets and seals
• Improves fuel system reliability in vehicles with external strainer setups

Installation Notes and Tips

Installation of the Carter P76026M fuel pump module assembly requires removal of the fuel tank access panel. The included gasket and wire harness simplify the replacement process. Ensure the negative ground connection is properly secured to avoid electrical issues. Since mounting hardware and lock ring are not included, reuse existing components or source compatible parts as needed. Verify the connector shape and terminal type match your vehicle’s wiring before installation.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P76026M part number undergoes rigorous testing to ensure durability and consistent performance in Ford Explorer and Mercury Mountaineer vehicles. While specific warranty details vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation for exact warranty terms.
