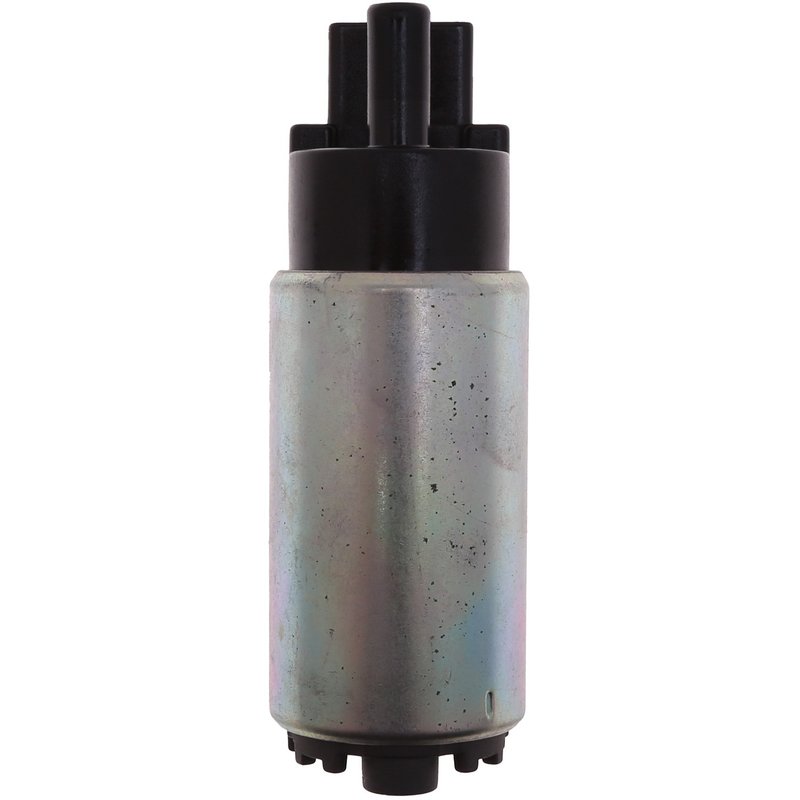

Carter P76068 Electric Fuel Pump - In-Tank
| Brand | Carter P76068 |
|---|---|
| Position | In-Tank |
| Connector Gender | Male |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Outside Diameter | 0.43 |
| Inlet Type | Strainer |
| Internal Or External | Internal |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Type | Hose Barb |
| Pump Placement | In Tank |
| Pump Type | Electric |
| Regulator Included | No |
| Seal And Lock Ring Included | No |
| Strainer Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Spade |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wiring Harness Included | No |
| Fits | Scion, Toyota, and Lexus · 25 vehicles |
OE fit, form, and function. Specific-fit electric fuel pump for straightforward replacement.
Internal pump design. Built for in-tank use with a hose barb outlet.
Gasket included. Helps simplify installation and sealing.
Cross-references Airtex Fuel Pumps E8404, Delphi FE0527 and Spectra Premium SP1184 for the same application. See all 15.
Carter P76068 Electric Fuel Pump Overview
The Carter P76068 is an in-tank electric fuel pump built for specific vehicle applications that require a 12V, negative-ground fuel delivery solution. It is engineered for OE fit, form, and function, with a rectangular male connector, spade terminals, and a hose barb outlet for direct replacement use in supported Toyota, Lexus, and Scion applications.
- Electric in-tank fuel pump for specific fit applications
- 12V operation with negative-ground electrical system
- Rectangular connector with 2 male spade terminals
- Hose barb outlet and strainer-style inlet type
- Gasket or seal included
- No regulator, wiring harness, mounting hardware, strainer, or lock ring included
Fitment and Application Details
Compatible with 2005-2010 Scion tC, 2001-2003 Toyota Highlander, 2006-2010 Toyota Highlander, 1999-2003 Lexus RX300, and 2006-2008 Lexus RX400h. This Carter P76068 fuel pump is a specific-fit replacement for in-tank fuel system service on these vehicles, including Toyota Highlander and Lexus RX applications.
This part cross-references Airtex Fuel Pumps E8404 and Delphi FE0527 for the same application.
Key Features
- Specific-fit electric fuel pump for in-tank mounting
- OE-style fit, form, and function focus
- Internal pump design with 12V electrical specification
- Male connector and male terminal configuration
- Outlet hose barb connection for fuel line attachment
- Seal included for service replacement
What This Fuel Pump Helps Address
- Hard starting caused by weak fuel delivery
- Engine stalling related to low fuel pressure
- Fuel starvation under load or acceleration
- Intermittent pump operation from worn internal components
- Fuel system service needs on high-mileage Toyota, Lexus, and Scion models
Installation Notes and Tips
Install the pump in the tank using the correct vehicle-specific fuel module procedure. Verify connector style, terminal orientation, inlet and outlet configuration, and seal condition before assembly. Because mounting hardware, wiring harness, strainer, and lock ring are not included, reuse or source the required vehicle-specific components as needed.
Quality Assurance
Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system components. The P76068 is built to match the specified application requirements for dependable replacement service in supported vehicles.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Scion | tC | 2.4L | L4 | — | N/A | — |
| 2010 | Toyota | Highlander | 3.3L | V6 | ELECTRIC/GAS | In-Tank | — |
| 2009 | Scion | tC | 2.4L | L4 | — | N/A | — |
| 2009 | Toyota | Highlander | 3.3L | V6 | ELECTRIC/GAS | In-Tank | — |
| 2008 | Lexus | RX400h | 3.3L | V6 | — | In-Tank | — |
| 2008 | Scion | tC | 2.4L | L4 | — | N/A | — |
| 2008 | Toyota | Highlander | 3.3L | V6 | ELECTRIC/GAS | In-Tank | — |
| 2007 | Lexus | RX400h | 3.3L | V6 | — | In-Tank | — |
| 2007 | Scion | tC | 2.4L | L4 | — | N/A | — |
| 2007 | Toyota | Highlander | 3.3L | V6 | ELECTRIC/GAS | In-Tank | — |
| 2006 | Lexus | RX400h | 3.3L | V6 | — | In-Tank | — |
| 2006 | Scion | tC | 2.4L | L4 | — | N/A | — |
| 2006 | Toyota | Highlander | 3.3L | V6 | ELECTRIC/GAS | In-Tank | — |
| 2005 | Scion | tC | 2.4L | L4 | — | N/A | — |
| 2003 | Lexus | RX300 | 3.0L | V6 | — | In-Tank | — |
| 2003 | Toyota | Highlander | 3.0L | V6 | — | In-Tank | — |
| 2003 | Toyota | Highlander | 2.4L | L4 | — | In-Tank | — |
| 2002 | Lexus | RX300 | 3.0L | V6 | — | In-Tank | — |
| 2002 | Toyota | Highlander | 3.0L | V6 | — | In-Tank | — |
| 2002 | Toyota | Highlander | 2.4L | L4 | — | In-Tank | — |
| 2001 | Lexus | RX300 | 3.0L | V6 | — | In-Tank | — |
| 2001 | Toyota | Highlander | 3.0L | V6 | — | In-Tank | — |
| 2001 | Toyota | Highlander | 2.4L | L4 | — | In-Tank | — |
| 2000 | Lexus | RX300 | 3.0L | V6 | — | In-Tank | — |
| 1999 | Lexus | RX300 | 3.0L | V6 | — | In-Tank | — |
