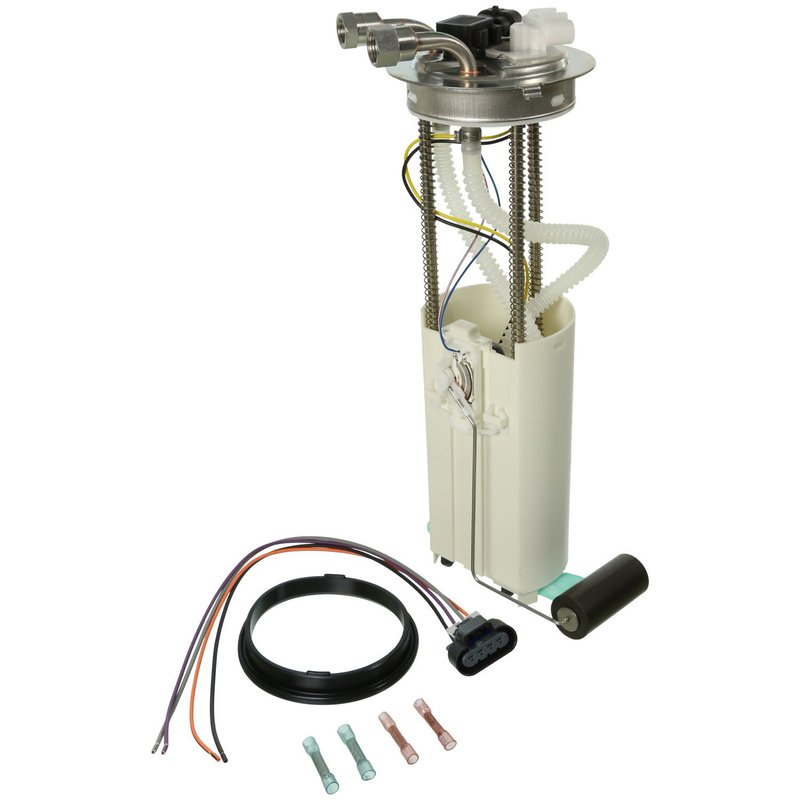

Carter P76086M Fuel Pump Module Assembly

Brand Carter P76086M
Fuel Sending Unit Included Yes
Negative Ground Yes
Connector Color White
Regulator Included No
Terminal Type Blade
Mounting Hardware Included No
Universal Or Specific Fit Specific
Wire Quantity 4
Grade Type Regular
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Connector Gender Male
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Threaded
Fuel Filter Included No
Internal Or External Strainer External
Wire Harness Included Yes
Fuel Tank Pressure Sensor Included Yes
Minimum Flow Rating 24
Pump Type Electric
Voltage 12v
Fits Chevrolet and GMC · 4 vehicles

OE-style replacement. Built for premium fit, form, and function in a specific-fit fuel module.

Integrated module design. Includes the sending unit, strainer, seal, harness, and pressure sensor.

12V electric pump. Uses a threaded outlet and 4-wire, 4-terminal electrical layout.

Cross-references Delphi FG0404, 953-5123 and 2920204 for the same application. See all 14.

$201.90Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $201.90
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Fuel Pump Module Assembly Overview

This Carter fuel pump module assembly is a specific-fit replacement built for 2004 full-size vans that need dependable fuel delivery and integrated tank-side components. It combines the pump, sending unit, gasket or seal, strainer, and fuel tank pressure sensor in one assembly for a direct service replacement.

Key Features

  • Specific-fit fuel pump module assembly for targeted application coverage.
  • 12V electric pump with a 24 minimum flow rating.
  • Includes fuel sending unit, gasket or seal, strainer, wire harness, and fuel tank pressure sensor.
  • White connector with male connector and blade terminals.
  • Threaded outlet and external strainer design.
  • Negative ground configuration with 4-wire, 4-terminal layout.

Detailed Description

Carter P76086M is engineered as an OE-style fuel pump module assembly for 2004 Chevrolet Express 1500, 2004 Chevrolet Express 2500, 2004 GMC Savana 1500, and 2004 GMC Savana 2500. It is built for the fuel system service needs of Chevrolet Express and GMC Savana vans, with the pump, sending unit, and pressure sensor integrated into one specific-fit unit. Carter P76086M follows the brand’s focus on OE fit, form, and function while providing the components needed for a complete tank module replacement.

This part cross-references Delphi FG0404 for the same application.

What It Is Used For

  • Restoring fuel delivery when the in-tank pump is no longer maintaining pressure.
  • Replacing a faulty fuel level sending unit.
  • Addressing fuel tank pressure sensor faults tied to module operation.
  • Correcting hard-start or no-start conditions related to fuel supply.
  • Resolving intermittent fuel starvation caused by a worn module assembly.

Installation Notes and Tips

Verify connector style, terminal count, outlet type, and sensor configuration before installation. This module uses a threaded outlet and includes a gasket or seal, but mounting hardware and lock ring are not included. Confirm tank access and electrical connections match the original setup on the vehicle before service.

Quality Assurance

Carter positions this fuel system program around premium OE fit, form, and function with broad vehicle coverage and problem-solving features. Part number P76086M is built as a specific-fit replacement for the listed applications.

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2004ChevroletExpress 15004.3LV6—
2004ChevroletExpress 25004.3LV6—
2004GMCSavana 15004.3LV6—
2004GMCSavana 25004.3LV6—
Directly replaces or cross-references 14 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Delphi — FG0404953-512329202048896541189060656A30276B11111766TGC0227ME3588MM2510471MU1267RE0890SSP6654MUSEP3588M
