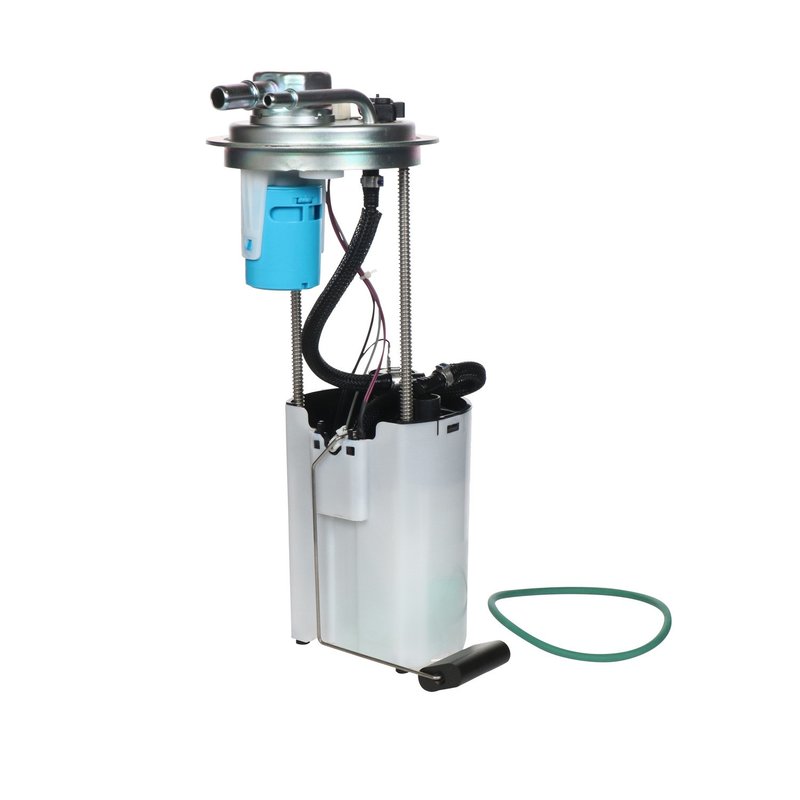

Carter P76088M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Vans

The Carter P76088M fuel pump module assembly is designed specifically for Chevrolet Express and GMC Savana vans, ensuring precise fitment and dependable fuel delivery. This electric fuel pump module supports the fuel system needs of Express 1500, 2500, 3500 and Savana 1500, 2500, 3500 models.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical grounding
• White oval connector with 4 male blade terminals
• Internal strainer inlet type with quick connect outlet fitting
• Includes gasket or seal and fuel tank pressure sensor
• Designed for 12-volt electrical systems with a minimum flow rating of 37
• Specific fit for Chevrolet Express and GMC Savana vans

Detailed Features and Specifications

The Carter P76088M fuel pump module assembly is engineered as a direct replacement part for select Chevrolet Express and GMC Savana vans. It features an electric pump type operating at 12 volts, delivering a minimum flow rating of 37 to maintain consistent fuel pressure. The module includes a fuel sending unit for accurate fuel gauge readings and a fuel tank pressure sensor to monitor system performance. The connector is white and oval-shaped with four male blade terminals, ensuring secure electrical connections. The internal strainer inlet type helps filter debris before fuel reaches the pump, while the quick connect outlet fitting simplifies installation. Although the regulator and mounting hardware are not included, the assembly comes with a gasket or seal to prevent leaks.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Express 1500, 2500, 3500
• GMC Savana 1500, 2500, 3500

It is designed to replace faulty or worn fuel pump modules in these specific models, addressing issues such as fuel delivery interruptions, inaccurate fuel level readings, and fuel system pressure inconsistencies.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel pump failure causing engine stalling
• Inaccurate fuel gauge readings due to faulty sending unit
• Fuel pressure drops affecting engine performance
• Fuel contamination from debris due to damaged or missing strainer
• Fuel tank pressure sensor malfunctions impacting emissions control

Installation Notes and Tips

Installation of the Carter P76088M fuel pump module assembly requires removal of the fuel tank access panel. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The included gasket or seal must be properly seated to avoid fuel leaks. Since mounting hardware and wire harness are not included, reuse existing components or source compatible parts as needed. Verify connector orientation and terminal connections to ensure proper electrical function. This module is a specific fit for Chevrolet Express and GMC Savana vans, so confirm vehicle compatibility before installation.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P76088M part number undergoes quality control testing to ensure reliable operation within the fuel system. While specific warranty details are not provided here, Carter typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
