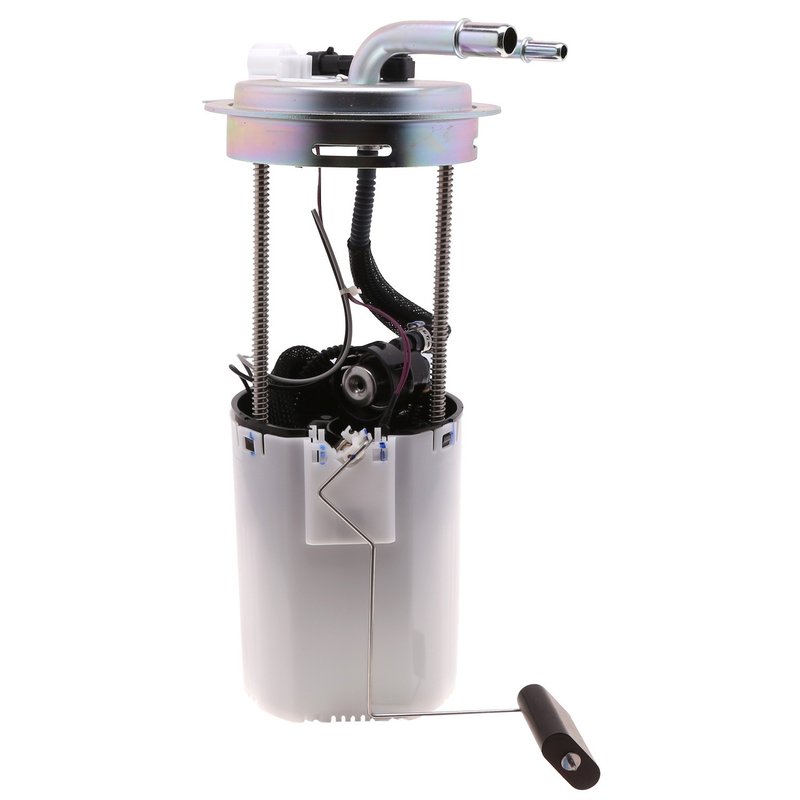

Carter P76090M Fuel Pump Module Assembly

Carter P76090M Fuel Pump Module Assembly

The Carter P76090M fuel pump module assembly is a specific-fit replacement for select Chevrolet Express 3500 and GMC Savana 3500 applications. Built for OE fit, form, and function, it combines the fuel pump, sending unit, and tank pressure sensor in one assembly for direct service on the listed vehicles.

Key Features

• Specific-fit fuel pump module assembly for listed Chevrolet and GMC vans
• 12V electric pump with a minimum flow rating of 37
• Fuel sending unit included for accurate fuel level reporting
• Fuel tank pressure sensor included
• Internal strainer included with gasket or seal included
• Quick-connect outlet and 4-terminal blade connection
• Negative ground design with white male connector
• Regular grade replacement part

Detailed Description

Carter P76090M is engineered as a direct replacement fuel pump module assembly for 2005-2008 Chevrolet Express 3500 and 2005-2008 GMC Savana 3500 models listed below. It is built for the fuel delivery system on these vans and includes the sending unit, internal strainer, and fuel tank pressure sensor, helping restore proper fuel supply and tank signal performance. This part cross-references Airtex Fuel Pumps E3583M and Delphi FG0400 for the same application.

Compatible vehicle coverage includes Fits 2005-2008 Chevrolet Express 3500, N/A and Fits 2005-2008 GMC Savana 3500, N/A. Notes for the listed applications include California emissions coverage on select models, no 55 gallon tank, and possible wiring harness 888-601 requirement before installation. The part number P76090M is the correct reference when matching this module to the vehicle application.

Common Issues This Part May Resolve

• Hard starting caused by weak or inconsistent fuel delivery
• Fuel gauge readings that do not match the tank level
• Fuel tank pressure sensor faults related to the module assembly
• Poor engine performance from inadequate pump output
• Fuel starvation concerns in the listed Express 3500 and Savana 3500 applications

Installation Notes and Tips

Verify the vehicle’s emissions configuration, tank size, and connector style before installation. Some applications may require wiring harness 888-601, so check the existing harness and connector condition prior to service. Confirm the quick-connect outlet, blade terminals, and gasket or seal alignment during installation, and inspect the tank opening for debris before seating the module.

Quality Assurance

Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and application-specific problem-solving features. The P76090M follows that approach for the listed Chevrolet Express 3500 and GMC Savana 3500 fuel system applications.
