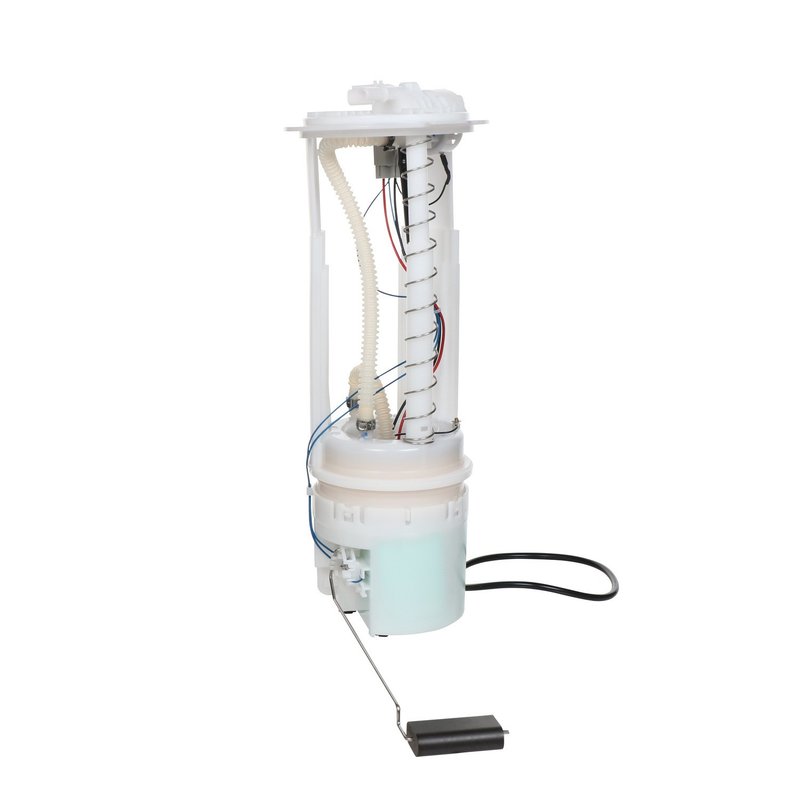

Carter P76100M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Liberty

The Carter P76100M fuel pump module assembly is designed specifically for Jeep Liberty models, providing a precise fit and dependable fuel delivery. This electric fuel pump module includes essential components to maintain optimal engine performance and fuel efficiency.

Key Features of Carter P76100M Fuel Pump Module

• Fuel sending unit included for accurate fuel level readings
• Negative ground design compatible with Jeep Liberty electrical systems
• White rectangular connector with four male blade terminals
• Internal strainer inlet type to protect the pump from debris
• Quick connect outlet with 3/8 inch fitting thread size
• Gasket or seal included for secure installation
• Electric pump operating at 12 volts with a minimum flow rating of 29 and minimum pressure of 58 psi
• Specific fitment for Jeep Liberty ensuring proper compatibility

Detailed Description of the Carter Fuel Pump Module

The Carter P76100M fuel pump module assembly is engineered to meet the exact specifications of Jeep Liberty vehicles. It features an electric pump designed to deliver a minimum flow of 29 gallons per hour and maintain a pressure of at least 58 psi, ensuring consistent fuel supply to the engine. The module includes a fuel sending unit for accurate fuel gauge readings and an internal strainer inlet to prevent contaminants from entering the fuel system. The connector is a white rectangular shape with four male blade terminals, designed for a secure electrical connection. Although the regulator and mounting hardware are not included, the assembly comes with a gasket or seal to ensure a leak-free installation. The quick connect outlet simplifies fuel line attachment, making it easier to install and maintain.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Jeep Liberty models
• Restores accurate fuel level readings with the included sending unit
• Prevents fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection issues with properly designed terminals and connector
• Helps maintain consistent fuel pressure for improved engine performance

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical hazards
• Verify compatibility with Jeep Liberty model year before purchase
• Use the included gasket or seal to prevent fuel leaks during installation
• Check connector orientation and terminal alignment for proper electrical connection
• Inspect fuel lines and replace if damaged to ensure optimal fuel flow

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM standards for fit and function. The P76100M part number undergoes rigorous quality control to ensure durability and reliable operation in Jeep Liberty vehicles. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
