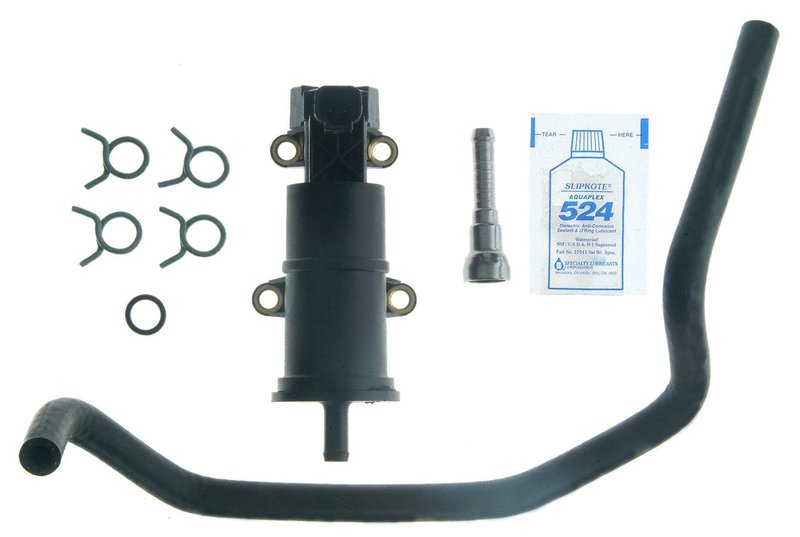

Carter P76110 Electric Fuel Pump - In-Line
| Brand | Carter P76110 |
|---|---|
| Position | In-Line |
| Fuel Pump Inlet Type | Hose barb |
| Fuel Sending Unit Included | No |
| Negative Ground | Yes |
| Inlet Outside Diameter | 10.0 |
| Length | 152.0 |
| Internal Or External | External |
| Regulator Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Port |
| Outlet Quantity | 1 |
| In Tank or External | External |
| Mounting Bracket Included | No |
| Minimum Flow Rating | 58.0 |
| Minimum Pressure | 5.0 |
| Outlet Fitting Thread Size | 1/2 |
| Outlet Outside Diameter | 12.7 |
| Pump Type | Electric |
| Voltage | 12v |
| Fits | Dodge · 6 vehicles |
OE fit, form, function. Built as a specific-fit electric fuel pump for straightforward replacement.
External pump design. Mounts outside the tank for a clean, serviceable fuel system setup.
12V electric operation. Uses a pin terminal, rectangular connector, and hose barb inlet.
Cross-references Airtex Fuel Pumps E7230, Delphi HFP943 and GMB 520-1090 for the same application. See all 15.
Carter P76110 Electric Fuel Pump
The Carter P76110 is a specific-fit external electric fuel pump built for 12V systems and OE-style replacement needs. It is engineered for 2002-2004 Dodge Ram 2500 and 2002-2004 Dodge Ram 3500 applications with an in-line, horizontal-mounted setup and a 34 gallon tank.
Key Features
- Electric fuel pump for 12V negative-ground systems
- External, in-line configuration with a specific fit
- Hose barb inlet and single port outlet design
- Minimum flow rating of 58.0 and minimum pressure of 5.0
- Rectangle connector shape with 2 male pin terminals
- OE fit, form, and function focus from Carter Fuel Systems
Detailed Description
Carter P76110 is an external electric fuel pump designed for direct replacement in select Dodge Ram truck applications. It uses a hose barb inlet, a port-style outlet, and a 1/2-inch outlet fitting thread size, with a 10.0 inlet outside diameter and 12.7 outlet outside diameter. The pump is built for negative-ground, 12V operation and is listed as a specific-fit unit for 2002-2004 Dodge Ram 2500 and 2002-2004 Dodge Ram 3500 models in an in-line position with horizontal mounting and a 34 gallon tank. This part cross-references Airtex Fuel Pumps E7230 and Delphi HFP943 for the same application.
Common Fuel Delivery Issues It Can Address
- Hard starting caused by weak fuel delivery
- Engine hesitation from low fuel pressure
- Fuel starvation under load or at higher demand
- Intermittent pump operation in an external fuel system
- Poor drivability related to inconsistent fuel flow
Installation Notes and Tips
Verify the vehicle is a 2002-2004 Dodge Ram 2500 or 2002-2004 Dodge Ram 3500 with the listed in-line, horizontal-mounted configuration and 34 gallon tank before ordering. This pump does not include a fuel sending unit, regulator, mounting hardware, gasket or seal, lock ring, wiring harness, or strainer, so reuse or source the required related components as needed for the application. Confirm inlet and outlet sizing, terminal style, and connector shape against the original unit before installation.
Quality Assurance
Carter Fuel Systems positions this pump within its OE fit, form, and function program, with coverage focused on direct replacement and application-specific fuel delivery performance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Dodge | Ram 2500 | 5.9L | L6 | In-Line | Horizontal Mounted; with 34 Gallon Tank |
| 2004 | Dodge | Ram 3500 | 5.9L | L6 | In-Line | Horizontal Mounted; with 34 Gallon Tank |
| 2003 | Dodge | Ram 2500 | 5.9L | L6 | In-Line | Horizontal Mounted; with 34 Gallon Tank |
| 2003 | Dodge | Ram 3500 | 5.9L | L6 | In-Line | Horizontal Mounted; with 34 Gallon Tank |
| 2002 | Dodge | Ram 2500 | 5.9L | L6 | In-Line | Horizontal Mounted; with 34 Gallon Tank |
| 2002 | Dodge | Ram 3500 | 5.9L | L6 | In-Line | Horizontal Mounted; with 34 Gallon Tank |
