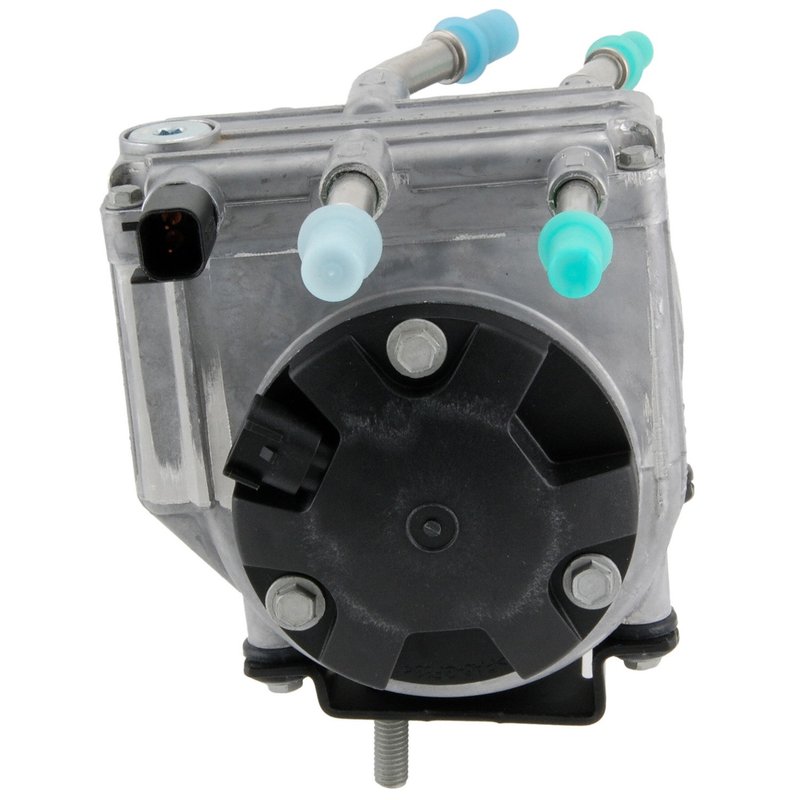

Carter P76115 Electric Fuel Pump - In-Line
| Brand | Carter P76115 |
|---|---|
| Position | In-Line |
| Connector Shape | Round |
| Fuel Pump Inlet Type | Strainer |
| Fuel Sending Unit Included | No |
| Gasket Or Seal Included | No |
| In Tank or External | External |
| Inlet Outside Diameter | 9.4 |
| Inlet Type | Strainer |
| Internal Or External | External |
| Minimum Flow Rating | 41.0 |
| Minimum Pressure | 43.5 |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Outside Diameter | 9.4 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Seal And Lock Ring Included | No |
| Strainer Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wiring Harness Included | No |
| Fits | Ford · 21 vehicles |
OE fit, form, and function. Specific-fit electric fuel pump for straightforward replacement.
External electric pump. Delivers 43.5 minimum pressure at 12V.
Quick-connect outlet. Round connector with pin terminals for clean installation.
Cross-references 3C3Z 9G282-AF, 3C3Z 9H307-DA and 3C3Z 9H307-EA for the same application. See all 19.
Carter P76115 Electric Fuel Pump for Ford Super Duty
The Carter P76115 electric fuel pump is a specific-fit, 12V external fuel pump built for select Ford Super Duty and Excursion applications. It uses a quick-connect outlet, pin-style terminals, and a round connector shape for OE-style serviceability on the fuel delivery system.
Key Features
- Electric fuel pump with 12V operation
- External, in-tank or external application design listed as external
- Specific fit for confirmed Ford applications
- Minimum pressure rating: 43.5
- Minimum flow rating: 41.0
- Strainer inlet type with 9.4 inlet and outlet outside diameter
- Quick-connect outlet with one outlet port
- Negative ground configuration
- Round connector with 4 male pin terminals
Detailed Description
Carter P76115 is an OE-style electric fuel pump engineered for fuel delivery service on Ford F-250 Super Duty, Ford F-350 Super Duty, and Ford Excursion applications listed below. Carter’s fuel systems lineup focuses on premium fit, form, and function with broad vehicle coverage and problem-solving replacement parts, and this pump follows that approach with a specific-fit design and the correct electrical and outlet configuration for the application.
This part cross-references Ford service numbers such as 3C3Z 9G282-AF and 3C3Z 9H307-DA for the same application. The Carter P76115 part number is also referenced in interchange listings for related fuel pump service needs.
Vehicle Fitment
- Fits 2003-2007 Ford F-250 Super Duty, In-Line
- Fits 2003-2007 Ford F-350 Super Duty, In-Line
- Fits 2003-2005 Ford Excursion, In-Line
- Fits 2001-2002 Ford F-250 Super Duty, N/A, Midship Fuel Tank (Calif) (Wheelbase 142") (Wheelbase 156")
- Fits 1999-2002 Ford F-350 Super Duty, N/A, Midship Fuel Tank (Exc.Calif) (Cab & Chassis)
- Fits 1999-2000 Ford F-250 Super Duty, N/A, Midship Fuel Tank (Exc.Calif) (Wheelbase 142") (Wheelbase 156")
What This Fuel Pump Helps Address
- Hard starting caused by weak fuel pressure
- Engine hesitation from inconsistent fuel delivery
- Fuel starvation under load or at higher demand
- Loss of prime or pump failure in the fuel system
- Driveability issues tied to incorrect pump output
Installation Notes and Tips
Verify the vehicle’s year, model, tank configuration, and notes before ordering, since this pump is specific to the listed Ford Super Duty and Excursion applications. Confirm the quick-connect outlet, pin terminal layout, and negative ground electrical setup match the original unit before installation. Because mounting hardware, gasket or seal, lock ring, wiring harness, regulator, and strainer are not included, reuse or source the required related components as needed for the repair.
Quality Assurance
Carter positions this fuel pump within its OE-fit, form, and function program for consistent replacement quality and application coverage. The P76115 is built as a direct replacement for the confirmed Ford applications listed above.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2007 | Ford | F-350 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2006 | Ford | F-250 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2006 | Ford | F-350 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2005 | Ford | Excursion | — | 6.0L | V8 | — | In-Line | — |
| 2005 | Ford | F-250 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2005 | Ford | F-350 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2004 | Ford | Excursion | — | 6.0L | V8 | — | In-Line | — |
| 2004 | Ford | F-250 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2004 | Ford | F-350 Super Duty | — | 6.0L | V8 | — | In-Line | — |
| 2003 | Ford | Excursion | — | — | — | — | In-Line | — |
| 2003 | Ford | F-250 Super Duty | — | — | — | — | In-Line | — |
| 2003 | Ford | F-350 Super Duty | — | — | — | — | In-Line | — |
| 2002 | Ford | F-250 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Calif) (Wheelbase 142") (Wheelbase 156") |
| 2002 | Ford | F-350 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Exc.Calif) (Cab & Chassis) |
| 2001 | Ford | F-250 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Calif) (Wheelbase 142") (Wheelbase 156") |
| 2001 | Ford | F-350 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Exc.Calif) (Cab & Chassis) |
| 2000 | Ford | F-250 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Exc.Calif) (Wheelbase 142") (Wheelbase 156") |
| 2000 | Ford | F-350 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Exc.Calif) (Cab & Chassis) |
| 1999 | Ford | F-250 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Exc.Calif) (Wheelbase 142") (Wheelbase 156") |
| 1999 | Ford | F-350 Super Duty | XLT | 5.4L | V8 | GAS | N/A | Midship Fuel Tank (Exc.Calif) (Cab & Chassis) |
