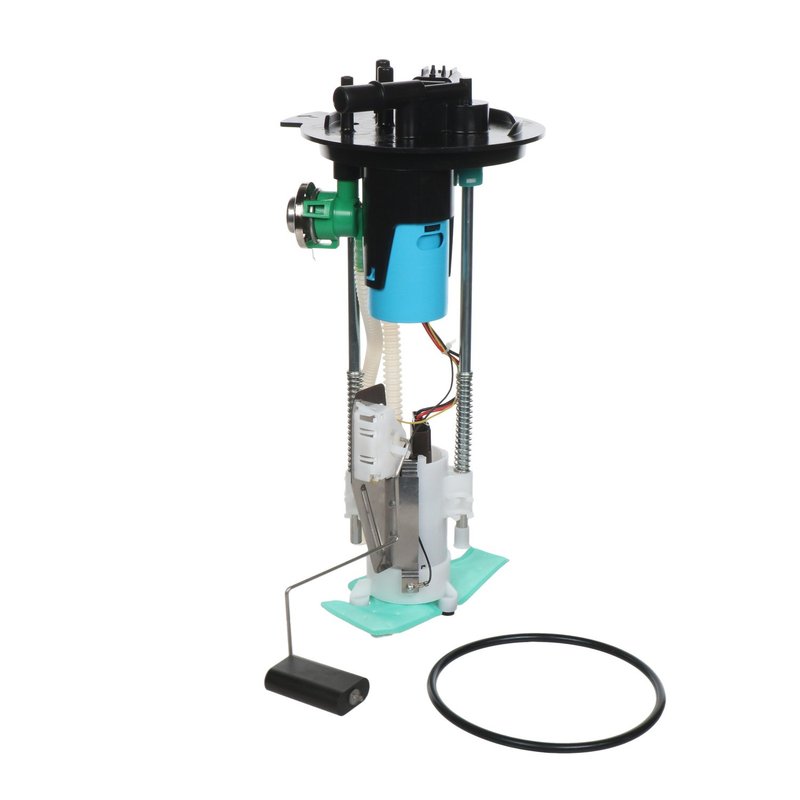

Carter P76131M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford and Mazda Trucks

The Carter P76131M fuel pump module assembly is designed specifically for Ford Ranger and Mazda B2300, B3000, and B4000 models. This electric fuel pump module ensures consistent fuel delivery with a built-in fuel sending unit and external strainer for optimal performance.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• Black oval-shaped connector with male blade terminals
• External strainer inlet type with quick connect outlet fitting
• Gasket or seal included for secure installation
• Specific fit for Ford Ranger and Mazda B-series trucks
• Electric pump with 12V operation, 21 GPH minimum flow, and 65 PSI minimum pressure

Detailed Features and Specifications

The Carter P76131M fuel pump module assembly is engineered to meet the exact specifications of Ford Ranger and Mazda B2300, B3000, and B4000 trucks. It features a built-in fuel sending unit to provide accurate fuel level data to the vehicle’s gauge. The pump operates on a 12-volt electric system with a minimum flow rating of 21 gallons per hour and a minimum pressure of 65 PSI, ensuring steady fuel delivery under various driving conditions.

This module includes an external strainer inlet type to protect the pump from debris, and the outlet uses a quick connect fitting with a 1/4-inch thread size for easy integration with the fuel line. The connector is black, oval-shaped, and equipped with male blade terminals for secure electrical connections. A gasket or seal is included to prevent leaks during installation. Note that mounting hardware, regulator, lock ring, fuel filter, wire harness, and fuel tank pressure sensor are not included.

Compatible Vehicles and Common Applications

• Replacement fuel pump module for Ford Ranger models
• Fuel pump assembly for Mazda B2300, B3000, and B4000 trucks
• Resolves fuel delivery issues such as low fuel pressure or inconsistent flow
• Addresses inaccurate fuel gauge readings due to faulty sending units
• Helps eliminate engine stalling or hesitation caused by fuel pump failure

Installation Notes and Tips

Installation of the Carter P76131M fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket or seal to prevent fuel leaks and verify that the black oval connector with male blade terminals is properly connected. Since mounting hardware and lock ring are not included, retain original components or source replacements as needed. This module is a specific fit for Ford Ranger and Mazda B-series trucks, so verify compatibility before installation.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76131M part number undergoes rigorous testing to ensure reliable operation and durability. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
