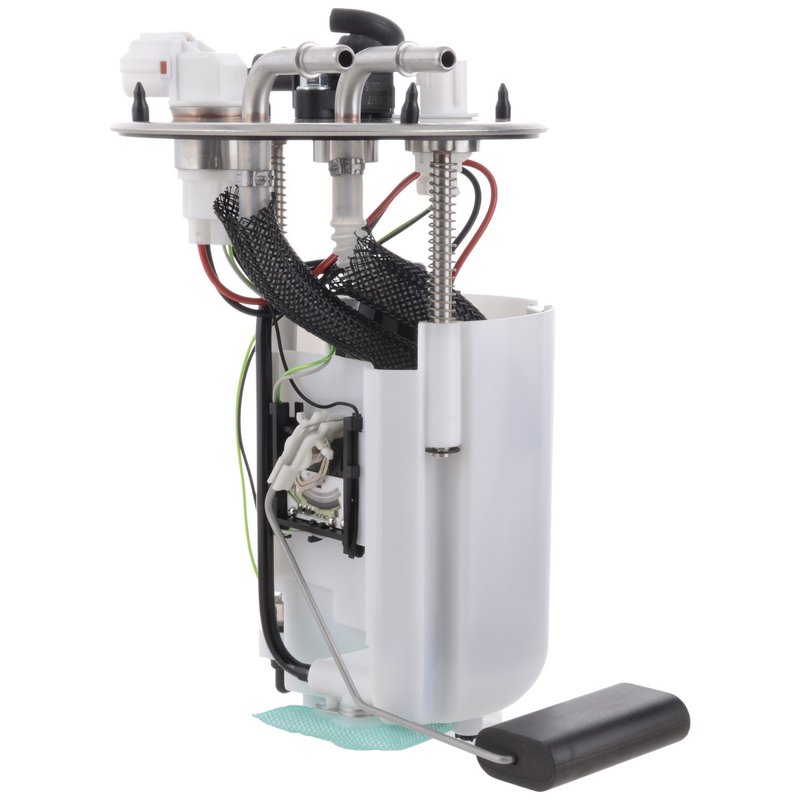

Carter P76139M Fuel Pump Module Assembly

Carter P76139M Fuel Pump Module Assembly

The Carter P76139M fuel pump module assembly is a specific-fit replacement for select Kia Sedona applications. Built for 12V electric operation, it includes the fuel sending unit, gasket or seal, and external strainer for a complete fuel delivery service solution.

Compatible with 2002 Kia Sedona and 2003 Kia Sedona built through 03/21/2003, this module is designed to restore proper fuel supply and tank-level signal performance. The Carter P76139M also features a quick-connect outlet, blade terminals, male connector, and negative-ground electrical setup for OE-style serviceability.

Key Features

• Specific-fit fuel pump module assembly for select Kia Sedona models
• 12V electric pump with a minimum pressure rating of 49.0
• Fuel sending unit included for fuel level signal restoration
• External strainer included with strainer inlet design
• Gasket or seal included for tank sealing
• Quick-connect outlet and 5/16 inlet and outlet fitting thread size
• Negative-ground, blade-terminal, male-connector configuration
• Regular grade replacement part from Carter

Detailed Description

Carter P76139M is a fuel pump module assembly engineered for OE fit, form, and function in select Kia Sedona vehicles. It combines the pump, sending unit, and external strainer in one service part to support consistent fuel delivery and accurate fuel level reporting. With a minimum flow rating of 20 and a minimum pressure of 49.0, this module is built for direct replacement use in the fuel tank system.

This part cross-references Delphi FG1670 for the same application. It also aligns with Kia Sedona fuel pump module replacement needs for 2002 and 2003 models, including 2003 Kia Sedona built through 03/21/2003. The Carter P76139M part number is useful when matching an OE-style fuel pump module assembly for these vehicles.

Common Problems This Part Can Address

• Hard starting caused by weak or failing fuel delivery
• Fuel gauge inaccuracies from a worn sending unit
• Engine hesitation from inconsistent pump pressure
• Fuel starvation from a restricted or worn strainer
• Fuel tank sealing issues when the original seal is damaged

Installation Notes and Tips

Verify the vehicle build date before ordering for 2003 Kia Sedona applications, since this part fits only through 03/21/2003. Confirm the connector style, outlet type, and fitting sizes before installation, and inspect the tank, wiring, and fuel lines for wear or contamination during service. The module uses a quick-connect outlet and does not include mounting hardware, lock ring, regulator, or wire harness.

Quality Assurance

Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system components. The P76139M follows that approach with application-specific construction for direct replacement service in supported Kia Sedona models.
