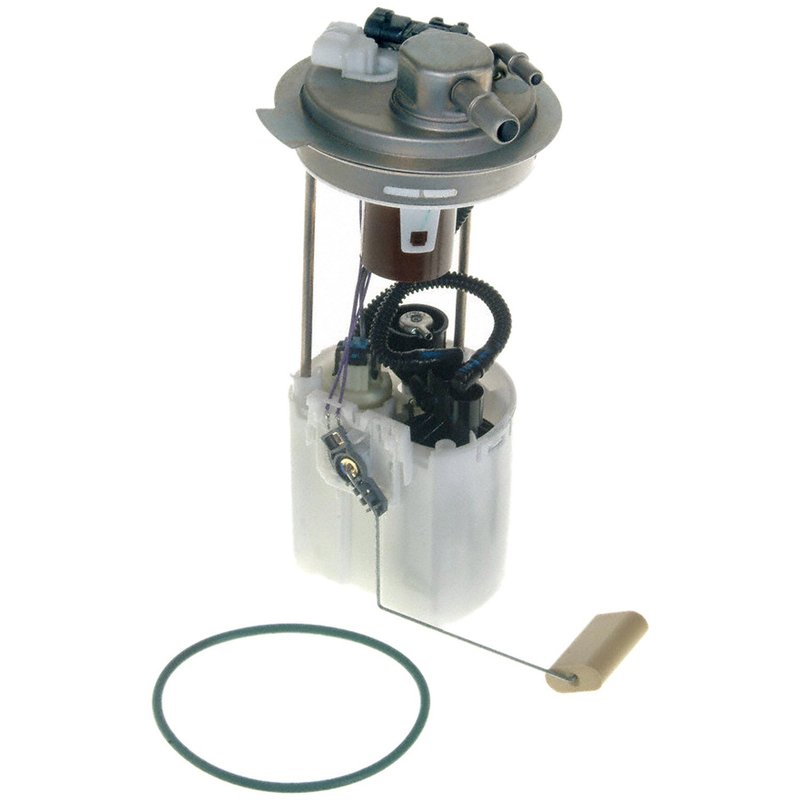

Carter P76147M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hummer H2

The Carter P76147M fuel pump module assembly is designed specifically for the Hummer H2, providing precise fuel delivery and reliable performance. This electric fuel pump module includes essential components to maintain optimal fuel system operation in your vehicle.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• Blade terminal type with male terminal gender for secure wiring
• Oval connector shape ensuring correct fitment
• Internal strainer and fuel tank pressure sensor included
• Quick connect outlet and port inlet for efficient fuel flow
• Gasket or seal included for leak prevention
• Designed for specific fitment to Hummer H2 models
• Electric pump operating at 12 volts with a minimum flow rating of 37
• Minimum pressure rating of 62.0 psi for consistent fuel delivery

Detailed Product Description

The Carter P76147M fuel pump module assembly is engineered to meet the exact specifications of the Hummer H2. This module features an electric pump with a 12-volt power supply, delivering a minimum flow rate of 37 liters per hour and maintaining a minimum pressure of 62 psi. The assembly includes a fuel sending unit for accurate fuel level monitoring and an internal strainer to protect the fuel system from contaminants. The negative ground design and blade-type male terminals with an oval connector ensure proper electrical connections. The module uses a port inlet fitting with a 3/8-inch thread size and a quick connect outlet for efficient fuel transfer. A gasket or seal is included to prevent leaks during installation. This fuel pump module does not include a regulator, lock ring, mounting hardware, wire harness, or fuel filter, so ensure compatibility with your existing components.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Hummer H2 vehicles experiencing fuel starvation
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Eliminates fuel pressure drops affecting engine performance
• Prevents fuel contamination with the included internal strainer
• Replaces worn or damaged fuel pump modules specific to Hummer H2

Installation Notes and Tips

Installation of the Carter P76147M fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized and battery disconnected before beginning. The included gasket or seal must be properly seated to avoid leaks. Since mounting hardware and wire harness are not included, reuse existing components or source compatible parts. Verify the negative ground connection and blade terminal compatibility with your vehicle’s wiring. Use appropriate tools for the 3/8-inch inlet fitting and quick connect outlet to secure fuel lines without damage.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76147M part number undergoes rigorous testing to ensure reliable operation under normal driving conditions. This product includes a fuel sending unit and pressure sensor to maintain system accuracy. Warranty coverage details should be confirmed with the original product documentation or authorized distributors.
