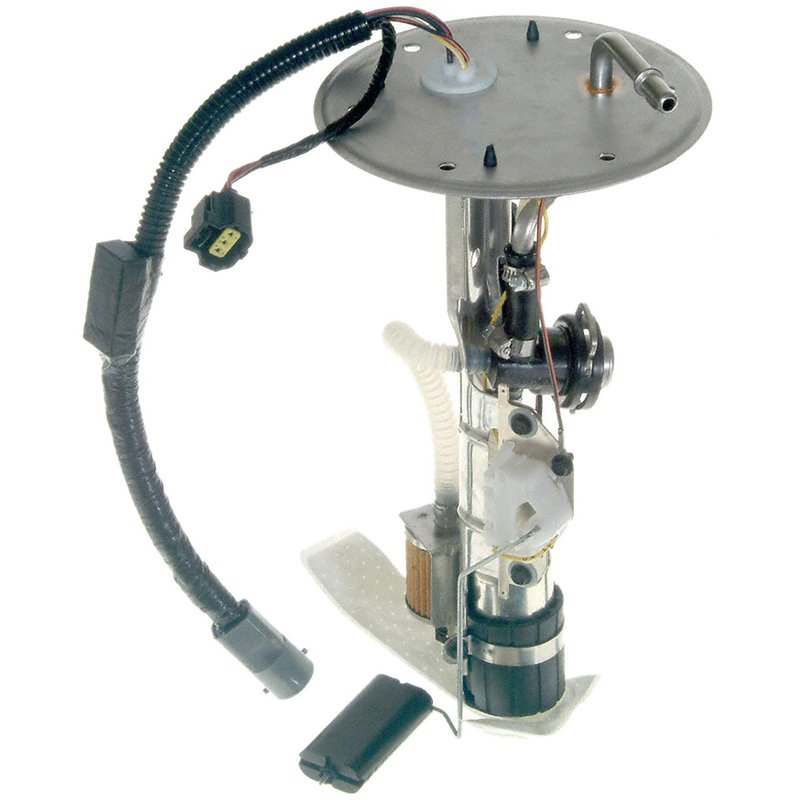

Carter P76156S Fuel Pump Hanger Assembly
| Brand | Carter P76156S |
|---|---|
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Included | No |
| Grade Type | Regular |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Minimum Flow Rating | 29.06 |
| Minimum Pressure | 43.5 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Type | Hose Connection |
| Pump Type | Electric |
| Strainer Included | Yes |
| Terminal Type | Pin |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | Yes |
| Fits | Ford · 2 vehicles |
OE fit, form, and function. Built for a specific fit with dependable replacement performance.
Fuel sending unit included. Adds integrated fuel level sensing in one assembly.
Electric pump design. 12V operation with a hose connection outlet for fuel delivery.
Cross-references 1L2Z 9H307-A, 1L2Z 9H307-B and 1L2Z 9H307-GA for the same application. See all 15.
Carter Fuel Pump Hanger Assembly for Explorer
The Carter P76156S fuel pump hanger assembly is a specific-fit, in-tank electric fuel delivery component for 2000-2001 Ford Explorer models with 1 tube ports. It includes the fuel sending unit, wire harness, and external strainer for a direct replacement focused on OE fit, form, and function.
Key Features
- Specific-fit fuel pump hanger assembly for Ford Explorer applications
- In-tank electric pump design with 12V operation
- Fuel sending unit included for fuel level signal restoration
- Wire harness included for electrical connection
- External strainer included; inlet type is strainer
- Hose connection outlet and pin terminal type
- Negative ground configuration
- Minimum flow rating of 29.06 and minimum pressure of 43.5
Detailed Description
Built for 2000-2001 Ford Explorer vehicles with 1 tube ports, the Carter P76156S is a fuel pump hanger assembly that combines the pump, sending unit, and harness into one service part. The in-tank electric design supports fuel delivery from the tank, while the included external strainer helps manage incoming fuel at the pump inlet. This part number, P76156S, is intended for direct replacement service where OE-style fit and electrical connection details matter. This part cross-references A30358 and PFS459 for the same application.
What It Helps Address
- Hard starting caused by weak or failing in-tank fuel delivery
- Fuel gauge inaccuracies from a worn sending unit
- Intermittent fuel supply from pump wear or internal electrical issues
- Fuel starvation symptoms related to restricted pickup filtration
- Electrical connection problems at the tank-mounted pump assembly
Installation Notes and Tips
Verify the vehicle is a 2000-2001 Ford Explorer with 1 tube ports before ordering. Confirm the tank connector style, hose connection routing, and pin terminal layout match the original assembly. The lock ring, gasket or seal, and mounting hardware are not included, so reuse or replace those service items as needed during installation. P76156S is a direct-fit replacement, but the fuel system should be depressurized and the tank area cleaned before removal and installation.
Quality Assurance
Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system components. The P76156S follows that approach for Ford Explorer fuel system service, with application-specific construction and included components that support a proper replacement.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Ford | Explorer | Stripped Chassis | 4.0L | V6 | N/A | with 1 Tube Ports |
| 2000 | Ford | Explorer | Stripped Chassis | 4.0L | V6 | N/A | with 1 Tube Ports |
