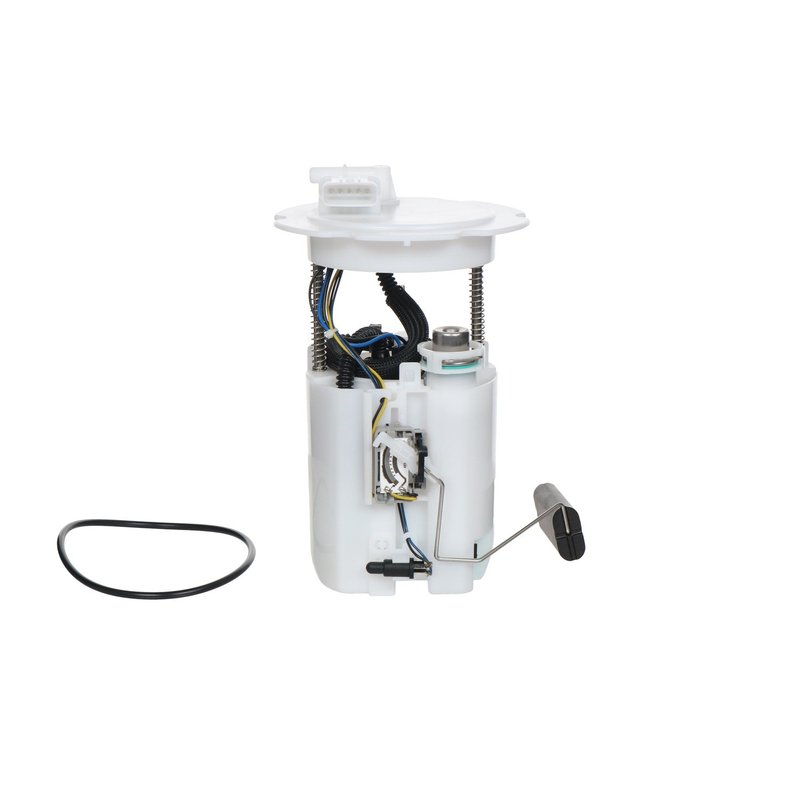

Carter P76174M Fuel Pump Module Assembly
| Brand | Carter P76174M |
|---|---|
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Spade |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Housing Material | Plastic |
| Inlet Fitting Thread Size | 3/8 |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Lock Ring Included | No |
| Minimum Flow Rating | 27 |
| Minimum Pressure | 51.0 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Spade |
| Top Mount Diameter | 146.0 |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Gauge Measurement | 20 |
| Wire Harness Included | No |
| Wire Quantity | 5 |
| Wiring Harness Length | 300.0 |
| Fits | Nissan · 3 vehicles |
OE fit, form, and function. Carter engineering delivers a specific-fit fuel pump module assembly.
Fuel sending unit included. A complete module setup for more efficient replacement.
Electric pump design. Built for 12V operation with a quick-connect outlet.
Cross-references Airtex Fuel Pumps E8660M, Delphi FG1783 and Spectra Premium SP4065M for the same application. See all 12.
Carter P76174M Fuel Pump Module Assembly
The Carter P76174M fuel pump module assembly is a specific-fit replacement built for OE fit, form, and function. It includes the fuel sending unit, internal strainer, and gasket/seal for a direct-service fuel tank repair on select Nissan Altima applications.
Key Features
- Specific-fit fuel pump module assembly for select Nissan Altima models
- Electric 12V pump with negative ground design
- Fuel sending unit included for fuel level signal restoration
- Internal strainer and gasket/seal included
- Quick-connect outlet for streamlined fuel line connection
- 5-wire, 5-terminal configuration with female connector and male terminals
- Plastic housing with white connector and spade terminal design
- Minimum pressure rating of 51.0 and minimum flow rating of 27
Detailed Description
Carter P76174M is a fuel pump module assembly engineered for direct replacement service in 2004 Nissan Altima models built from 09/2003 with California Emissions System and 2005-2006 Nissan Altima models with California Emissions System. This module is built around a 12V electric pump and includes the fuel sending unit, internal strainer, and gasket/seal to support fuel delivery and tank-level reporting in one assembly. The 3/8 inlet fitting thread size and quick-connect outlet help match the original fuel system layout, while the specific-fit design supports OE-style service on the Nissan Altima fuel tank module application. This part cross-references Airtex Fuel Pumps (e.g., E8660M) for the same application.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Fuel gauge readings that no longer track tank level accurately
- Engine hesitation or stalling related to low fuel pressure
- Noisy or failing in-tank pump operation
- Fuel system service needs on California Emissions Nissan Altima models
Installation Notes and Tips
Verify the vehicle’s emissions configuration before ordering, since this module is listed for California Emissions System applications only. Confirm connector style, outlet type, and top mount diameter before installation, and transfer no mounting hardware unless your vehicle service procedure requires separate reuse of existing components. Clean the tank area thoroughly before replacing the module to help protect the new strainer and seal.
Quality Assurance
Carter fuel systems are built to deliver OE fit, form, and function with application-specific coverage and problem-solving design features. The P76174M is a direct replacement fuel pump module assembly for the listed Nissan Altima applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Nissan | Altima | 2.5L | L4 | N/A | California Emissions System compatible |
| 2005 | Nissan | Altima | 2.5L | L4 | N/A | California Emissions System compatible |
| 2004 | Nissan | Altima | 2.5L | L4 | N/A | From 09/2003; with California Emissions System |
