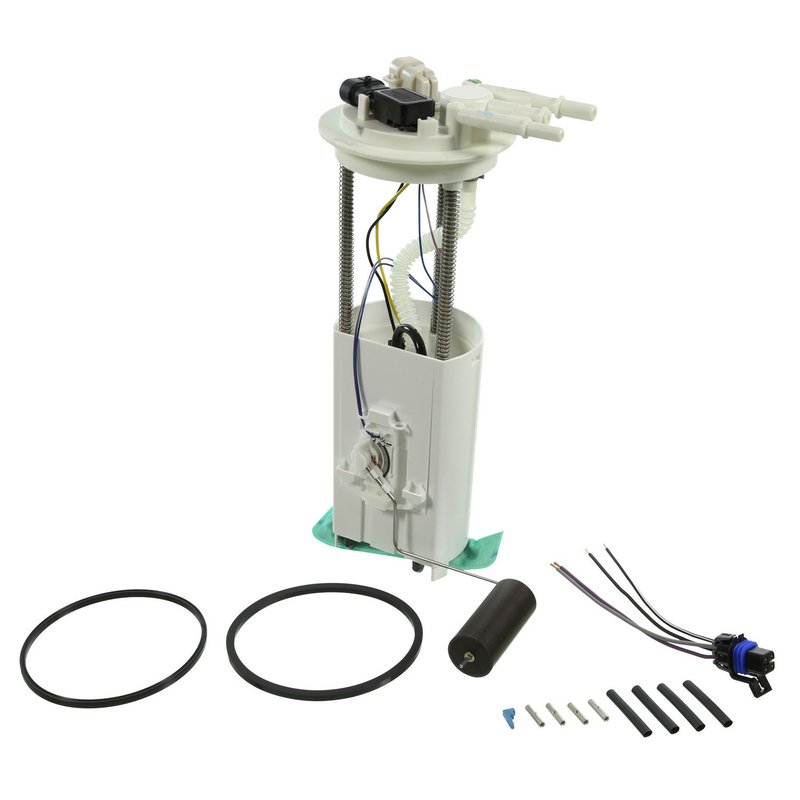

Carter P76178M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Honda and Isuzu Vehicles

The Carter P76178M fuel pump module assembly is designed specifically for select Honda and Isuzu models, including the Axiom, Passport, Rodeo, and Rodeo Sport. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored for precise fitment and performance.

• Fuel sending unit included for accurate fuel level readings
• Negative ground design compatible with vehicle electrical systems
• Beige oval-shaped male connector with four blade terminals
• External strainer inlet with quick connect outlet for efficient fuel flow
• Includes wire harness and gasket for secure installation
• Fuel tank pressure sensor integrated for monitoring system pressure
• Designed for specific fitment on Honda Axiom, Isuzu Passport, Rodeo, and Rodeo Sport
• Operates on 12-volt electric pump with minimum flow rating of 20 and pressure of 60 psi

Detailed Product Description

The Carter P76178M fuel pump module assembly is engineered to meet the exact specifications of Honda and Isuzu vehicles such as the Axiom, Passport, Rodeo, and Rodeo Sport. This module includes a fuel sending unit to provide accurate fuel level data to the vehicle’s gauge. The negative ground configuration and four-wire setup with blade terminals ensure compatibility with the vehicle’s electrical system. The beige oval male connector simplifies wiring connections, while the external strainer inlet and quick connect outlet maintain clean and efficient fuel flow. Although the regulator is not included, the integrated fuel tank pressure sensor helps monitor system performance. The assembly comes with a gasket and wire harness for a secure and reliable installation, but mounting hardware and lock ring are not included.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Honda Axiom and Isuzu Passport models
• Resolves fuel level gauge inaccuracies due to faulty sending units
• Eliminates fuel pressure drops affecting engine performance in Rodeo and Rodeo Sport
• Replaces worn or damaged fuel pump modules to prevent stalling or starting issues
• Addresses external strainer clogging that can restrict fuel flow

Installation Notes and Tips

• Ensure vehicle is compatible: Honda Axiom, Isuzu Passport, Rodeo, or Rodeo Sport
• Disconnect battery before installation to prevent electrical shorts
• Use the included gasket to prevent fuel leaks at the mounting surface
• Verify connector orientation and secure the beige oval male connector firmly
• Check fuel lines for proper quick connect fittings and secure connections
• Test fuel pump operation and fuel level sensor functionality after installation

Quality Assurance and Warranty

Carter manufactures the P76178M fuel pump module assembly to meet OEM standards for fit, form, and function. This product undergoes rigorous testing to ensure reliable fuel delivery and sensor accuracy. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Refer to Carter’s official documentation for exact warranty terms.
