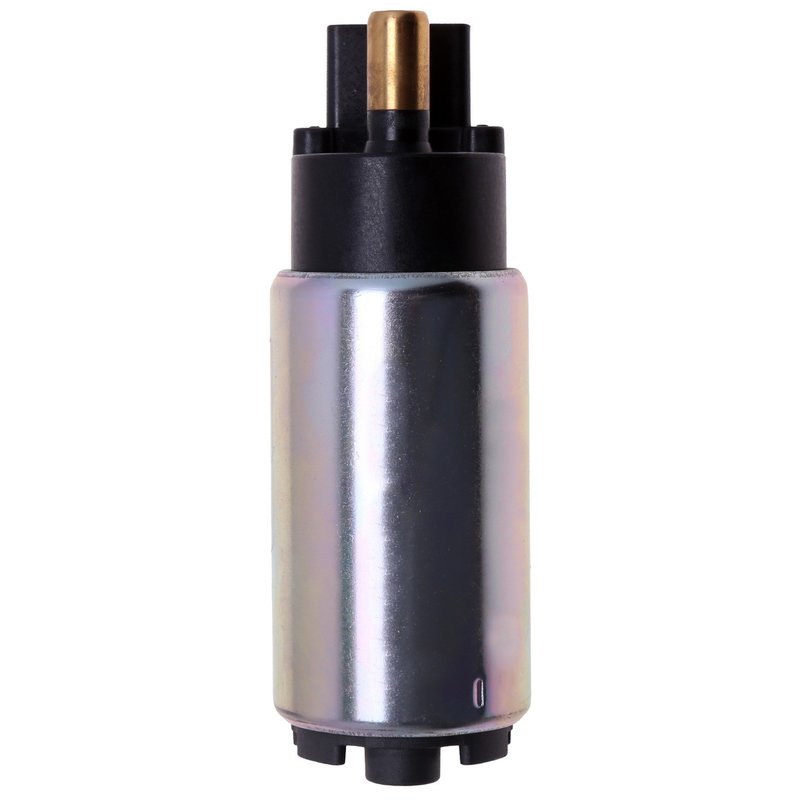

Carter P76230 Fuel Pump and Strainer Set - Front
| Brand | Carter P76230 |
|---|---|
| Position | Front |
| Connector Gender | Male |
| Connector Shape | Rectangle |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Outside Diameter | 0.43 |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Minimum Flow Rating | 60 |
| Minimum Pressure | 60 |
| Outlet Quantity | 1 |
| Outlet Type | Hose Barb |
| Pump Placement | In Tank |
| Pump Type | Electric |
| Regulator Included | No |
| Strainer Color | Green |
| Strainer Included | Yes |
| Strainer Material | Multi-Layer |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Spade |
| Voltage | 12V |
| Wiring Harness Included | Yes |
| Fits | Ford · 12 vehicles |
OE fit, form, and function. Premium replacement engineered for dependable fuel delivery.
Electric fuel pump. 12V design with a 60 minimum pressure rating.
Strainer included. Multi-layer construction with gasket and wiring harness.
Cross-references Autobest F1377, Delphi FE0443 and GMB 525-1290 for the same application. See all 14.
Carter P76230 Fuel Pump and Strainer Set
The Carter P76230 is an in-tank electric fuel pump and strainer set for gasoline applications. It is built for OE fit, form, and function, with vehicle coverage focused on 2005-2007 Ford F-250 Super Duty and 2005-2007 Ford F-350 Super Duty front applications.
With a 12V electric design, 60 minimum pressure, 60 minimum flow rating, and included wiring harness, gasket/seal, and strainer, this Carter fuel pump assembly supports direct replacement service for Ford Super Duty fuel delivery systems.
Key Features
- In-tank electric fuel pump for gas fuel systems
- Fits 2005-2007 Ford F-250 Super Duty, front
- Fits 2005-2007 Ford F-350 Super Duty, front
- Includes gasket or seal, wiring harness, and strainer
- 12V unit with spade terminals and rectangular connector
- Hose barb outlet with one outlet and external strainer
- Green multi-layer strainer material
- OE-style fit, form, and function from Carter
Detailed Description
Carter P76230 is a fuel pump and strainer set engineered for in-tank installation on gasoline-powered Ford Super Duty trucks. The pump uses a 12V electric design with a hose barb outlet, male connector, and male spade terminals for service replacement in the fuel tank assembly. The included external strainer and seal support a complete fuel delivery repair where the original pump has failed or fuel pressure has dropped. This part cross-references Delphi FE0443 for the same application.
For technicians and owners searching for a fuel pump for 2005-2007 Ford F-250 Super Duty front applications or a fuel pump for 2005-2007 Ford F-350 Super Duty front applications, the Carter P76230 provides a direct-fit service option backed by Carter’s OE-focused fuel system design approach. The part number P76230 is also useful when matching replacement components by catalog reference.
What It Helps Fix
- Hard starting caused by weak fuel delivery
- Engine stalling from low fuel pressure
- Fuel starvation under load or acceleration
- No-start conditions related to pump failure
- Fuel system service needs after tank removal
Installation Notes and Tips
Install the pump in the tank and verify the connector, terminal style, and outlet configuration before assembly. Replace the seal during service and confirm the strainer is positioned correctly in the tank. After installation, check for leaks, verify fuel pressure, and confirm proper electrical connection at the harness.
Quality Assurance
Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system components. The P76230 is built to match the application requirements for Ford F-250 Super Duty and Ford F-350 Super Duty fuel pump service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | 5.4L | V8 | Front | Includes Tank Seal and Wire Harness |
| 2007 | Ford | F-250 Super Duty | 6.8L | V10 | Front | Includes Tank Seal and Wire Harness |
| 2007 | Ford | F-350 Super Duty | 5.4L | V8 | Front | Includes Tank Seal and Wire Harness |
| 2007 | Ford | F-350 Super Duty | 6.8L | V10 | Front | Includes Tank Seal and Wire Harness |
| 2006 | Ford | F-250 Super Duty | 5.4L | V8 | Front | Includes Tank Seal and Wire Harness |
| 2006 | Ford | F-250 Super Duty | 6.8L | V10 | Front | Includes Tank Seal and Wire Harness |
| 2006 | Ford | F-350 Super Duty | 5.4L | V8 | Front | Includes Tank Seal and Wire Harness |
| 2006 | Ford | F-350 Super Duty | 6.8L | V10 | Front | Includes Tank Seal and Wire Harness |
| 2005 | Ford | F-250 Super Duty | 5.4L | V8 | Front | Includes Tank Seal and Wire Harness |
| 2005 | Ford | F-250 Super Duty | 6.8L | V10 | Front | Includes Tank Seal and Wire Harness |
| 2005 | Ford | F-350 Super Duty | 5.4L | V8 | Front | Includes Tank Seal and Wire Harness |
| 2005 | Ford | F-350 Super Duty | 6.8L | V10 | Front | Includes Tank Seal and Wire Harness |
