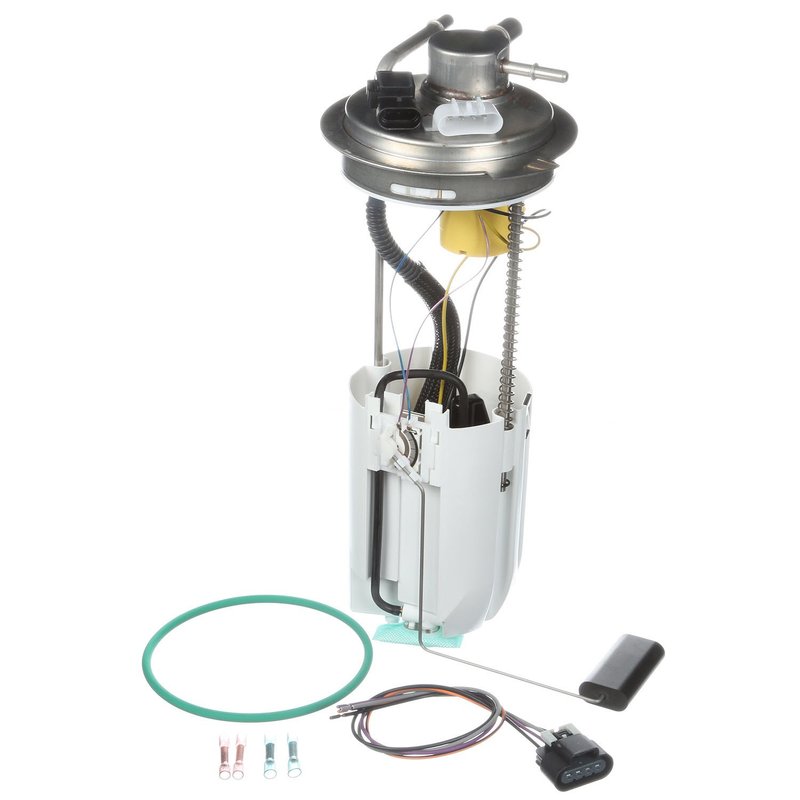

Carter P76241M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Carter P76241M fuel pump module assembly is designed specifically for select Chevrolet and GMC truck models, including the Sierra and Silverado series. This electric fuel pump module ensures consistent fuel delivery and integrates essential components for optimal performance.

Key Features of the Carter P76241M Fuel Pump Module

• Fuel sending unit included for accurate fuel level readings
• Negative ground electrical system compatibility
• White oval-shaped male connector with four spade terminals
• Internal strainer inlet type with quick connect outlet fitting
• Includes gasket or seal and wire harness for installation
• Fuel tank pressure sensor integrated for precise monitoring
• Designed for specific fitment on Chevrolet and GMC Sierra and Silverado models
• Electric pump type with 12V voltage rating and minimum flow rating of 42

Detailed Description of the Carter P76241M Fuel Pump Module

This fuel pump module assembly from Carter is engineered to meet the exact specifications of Chevrolet and GMC trucks such as the Sierra 1500, Sierra 2500 HD, Silverado 1500, and Silverado 3500 Classic models. The assembly includes a fuel sending unit and an internal strainer to protect the fuel system from contaminants. Featuring a white oval-shaped connector with four male spade terminals, it ensures secure electrical connections. The module operates on a 12-volt electric pump system with a minimum pressure of 55 psi and a minimum flow rating of 42, providing reliable fuel delivery under various driving conditions. The quick connect outlet and 3/8 inch inlet fitting thread size simplify installation, while the included gasket or seal helps maintain a proper fuel-tight connection. Additionally, the integrated fuel tank pressure sensor supports accurate fuel system diagnostics.

Compatible Vehicles and Common Applications

• Chevrolet Sierra 1500 and Sierra 1500 Classic
• Chevrolet Sierra 2500 and 2500 HD Classic
• Chevrolet Sierra 3500 and 3500 Classic
• Chevrolet Silverado 1500 and 1500 Classic
• Chevrolet Silverado 2500 and 2500 HD Classic
• Chevrolet Silverado 3500 and 3500 Classic
• GMC Sierra 1500, 2500, and 3500 series

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling
• Inaccurate fuel gauge readings due to faulty sending unit
• Fuel system contamination leading to clogged fuel filters
• Loss of fuel pressure affecting engine performance
• Electrical connection failures causing pump malfunction

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation
• Verify compatibility with your specific Chevrolet or GMC model and year
• Use the included gasket or seal to prevent fuel leaks
• Check connector orientation and secure all spade terminals firmly
• Inspect fuel lines and fittings for wear or damage during replacement

Quality Assurance and Warranty Information

The Carter P76241M fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure durability and reliable operation. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
