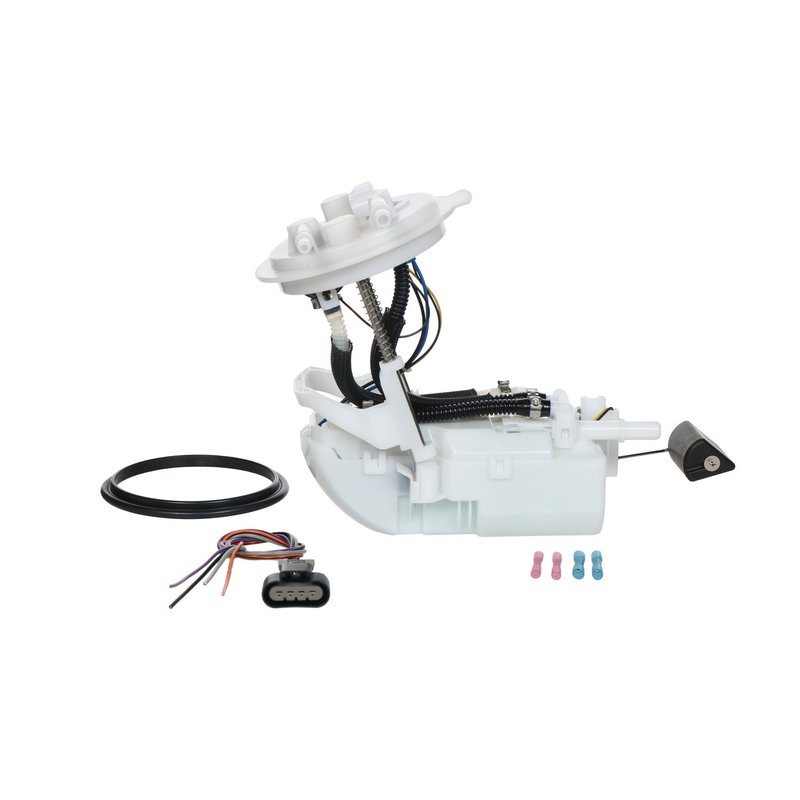

Carter P76253M Fuel Pump Module Assembly - Right

Reliable Fuel Pump Module Assembly for Cadillac CTS and STS

The Carter P76253M fuel pump module assembly is designed specifically for Cadillac CTS and STS models, providing a precise fit and dependable fuel delivery. This electric fuel pump module includes essential components to maintain optimal fuel system performance.

• Fuel sending unit included for accurate fuel level readings
• Negative ground design compatible with vehicle electrical systems
• White square-shaped connector with 4 male blade terminals
• Internal strainer inlet type with quick connect outlet fitting
• Includes gasket or seal and wire harness for installation
• Designed for 12-volt electrical systems with a minimum flow rating of 32-55 GPH
• Specific fit for Cadillac CTS and STS models

Detailed Features and Specifications

The Carter P76253M fuel pump module assembly is engineered to meet the fuel delivery requirements of Cadillac CTS and STS vehicles. It features a 12-volt electric pump with a minimum pressure rating of 60 psi, ensuring consistent fuel flow. The module includes a fuel sending unit for accurate fuel gauge readings and an internal strainer to protect the fuel system from contaminants. The connector is a white, square-shaped male type with four blade terminals, facilitating secure electrical connections. The assembly comes with a gasket or seal to prevent leaks and a wire harness to simplify installation. Note that mounting hardware, regulator, lock ring, and fuel filter are not included.

Compatible Applications and Common Issues Addressed

• Restores proper fuel delivery in Cadillac CTS and STS models experiencing fuel pump failure
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Eliminates fuel system contamination by utilizing the internal strainer
• Addresses electrical connection issues with the included wire harness and blade terminals
• Helps maintain consistent fuel pressure for engine performance stability

Installation Notes and Tips

Installation of the Carter P76253M fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle's negative ground system is compatible before installation. Use the included gasket or seal to prevent fuel leaks. The white square connector with four blade terminals should be securely connected to the vehicle’s wiring harness. Since mounting hardware and lock ring are not included, reuse existing components or source replacements as needed. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM specifications for fit and function. The P76253M part number undergoes rigorous quality control to ensure durability and reliable operation in Cadillac CTS and STS vehicles. While specific warranty details may vary, Carter typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
