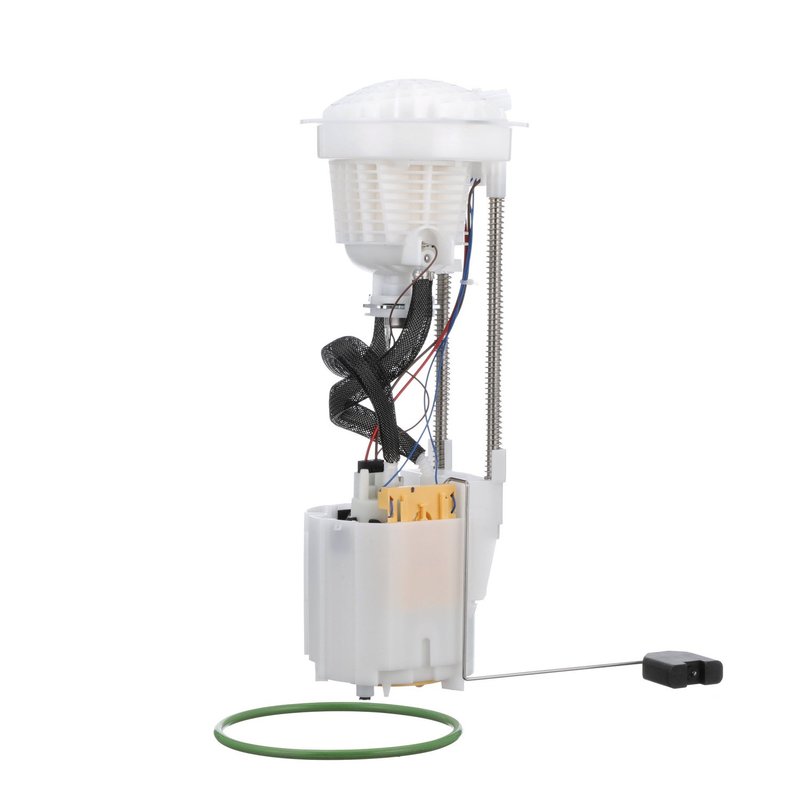

Carter P76259M Fuel Pump Module Assembly

Overview of Carter Fuel Pump Module Assembly P76259M

The Carter Fuel Pump Module Assembly P76259M is designed specifically for Dodge Ram 1500 models, providing reliable fuel delivery with integrated components for efficient operation. This electric fuel pump module includes essential features such as a fuel sending unit and regulator to maintain optimal fuel pressure and flow.

• Fuel sending unit included for accurate fuel level readings
• Electric pump type with a minimum flow rating of 50
• Negative ground compatible for proper electrical connection
• Includes regulator and internal strainer for fuel system protection
• Connector color: white with a rectangular male connector shape
• Blade terminal type with four male terminals
• Pom housing material ensuring durability and resistance
• Top mount diameter of 129.6 mm and height of 362 mm
• Gasket or seal included for secure installation
• Outlet outside diameter of 9.49 mm with quick connect outlet type
• Specific fitment for Dodge Ram 1500 vehicles

Detailed Product Description

The Carter P76259M fuel pump module assembly is engineered to meet the exact specifications of Dodge Ram 1500 trucks, ensuring compatibility and reliable performance. This module features an electric pump with a minimum flow rating of 50, suitable for regular grade fuel. The integrated fuel sending unit provides precise fuel level data to the vehicle’s gauge, while the included regulator maintains consistent fuel pressure. The internal strainer protects the fuel system by filtering out contaminants before fuel reaches the engine. Constructed with a durable Pom housing, this module withstands harsh operating conditions. The connector is a white rectangular male type with four blade terminals, designed for secure electrical connections. The assembly includes a gasket or seal to prevent leaks during installation. Note that mounting hardware and wire harness are not included.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pump modules in Dodge Ram 1500
• Resolves inconsistent fuel gauge readings due to sending unit failure
• Fixes low fuel pressure or engine stalling caused by regulator issues
• Eliminates fuel delivery interruptions from clogged strainers
• Addresses electrical connection problems with blade terminal design

Installation Notes and Tips

• Ensure vehicle is compatible with part number P76259M before installation
• Use proper tools to avoid damage to the Pom housing and connectors
• Verify gasket or seal is properly seated to prevent fuel leaks
• Check electrical connections for secure fit with blade terminals
• Mounting hardware is not included; reuse existing hardware or source separately

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76259M assembly undergoes rigorous testing to ensure durability and reliable fuel delivery performance. This product includes a gasket or seal to support leak-free installation. Warranty coverage details should be confirmed with the original product documentation or authorized distributor.
