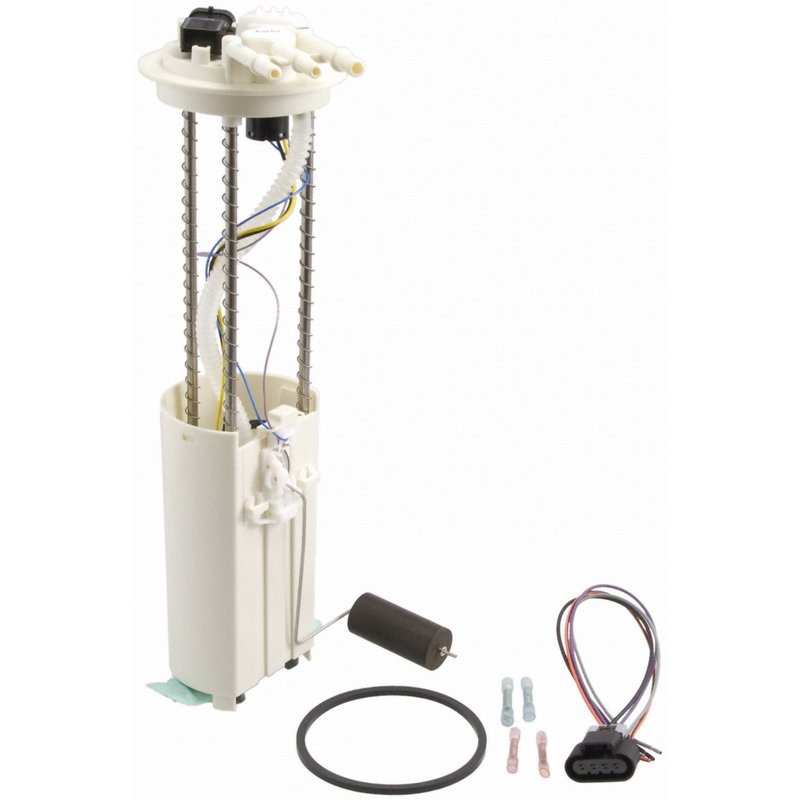

Carter P76265M Fuel Pump Module Assembly
| Brand | Carter P76265M |
|---|---|
| Connector Color | White |
| Connector Gender | Male |
| Fuel Filter Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Inlet Fitting Thread Size | 3/8 |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Minimum Flow Rating | 20 |
| Minimum Flow Rating | 20.0 |
| Minimum Pressure | 62.0 |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 5/16 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | Yes |
| Wire Quantity | 4 |
| Fits | Chevrolet and GMC · 4 vehicles |
OE fit, form, and function. Specific-fit fuel pump module assembly for straightforward replacement.
Electric pump. Delivers 62 psi minimum pressure with 12V operation.
Complete assembly. Includes sending unit, gasket or seal, strainer, and wire harness.
Cross-references Airtex Fuel Pumps E3506M, Autobest F2517A and Bosch 67465 for the same application. See all 16.
Carter P76265M Fuel Pump Module Assembly
The Carter P76265M fuel pump module assembly is a specific-fit replacement for select Chevrolet Astro and GMC Safari applications. It combines the electric pump, fuel sending unit, strainer, gasket or seal, wire harness, and fuel tank pressure sensor in one assembly for a direct-service fuel delivery repair.
Key Features
- Specific-fit fuel pump module assembly for select 2004-2005 Chevrolet Astro and GMC Safari models
- Electric 12V pump with a minimum pressure rating of 62.0
- Fuel sending unit included for fuel level signal restoration
- Fuel tank pressure sensor included
- Strainer included with external strainer design
- Quick-connect outlet with 5/16 outlet fitting thread size and 3/8 inlet fitting thread size
- White male connector with blade terminals, 4-wire harness, and 4 terminals
- Gasket or seal included; regulator, fuel filter, lock ring, and mounting hardware not included
Detailed Description
Carter builds the P76265M to deliver OE fit, form, and function for fuel system service on the Chevrolet Astro and GMC Safari. This module is built as a direct replacement for vehicles without a Robust Fuel System Sender, and it includes the components commonly needed to restore fuel delivery and tank signal performance in one service part. This part cross-references Airtex E3506M and Bosch 67465 for the same application.
Fits 2004-2005 Chevrolet Astro, N/A. Fits 2004-2005 GMC Safari, N/A. The P76265M is a practical choice when servicing a failing in-tank pump, inaccurate fuel level readings, or pressure-related drivability concerns on these vans.
What It Helps Fix
- Hard starting caused by weak or failed in-tank fuel pump output
- Fuel gauge errors related to a worn sending unit
- Low fuel pressure conditions that affect engine performance
- Intermittent stalling from inconsistent fuel delivery
- Fuel tank pressure sensor faults tied to module wear
Installation Notes and Tips
Verify vehicle configuration before ordering, since this module fits 2004-2005 Chevrolet Astro and GMC Safari models without a Robust Fuel System Sender. Confirm connector style, outlet connection, and tank access before installation. Replace the seal during service and inspect the tank, lines, and electrical connector for wear or corrosion while the module is out.
Quality Assurance
Carter positions this fuel pump module assembly as an OE-style replacement with specific vehicle coverage and problem-solving features for fuel system repair. The P76265M is built for regular-grade service and is intended to match the fit and function expected for direct replacement applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Chevrolet | Astro | 4.3L | V6 | N/A | without Robust Fuel System Sender |
| 2005 | GMC | Safari | 4.3L | V6 | N/A | without Robust Fuel System Sender |
| 2004 | Chevrolet | Astro | 4.3L | V6 | N/A | without Robust Fuel System Sender |
| 2004 | GMC | Safari | 4.3L | V6 | N/A | without Robust Fuel System Sender |
| No rows match your filter. | ||||||
