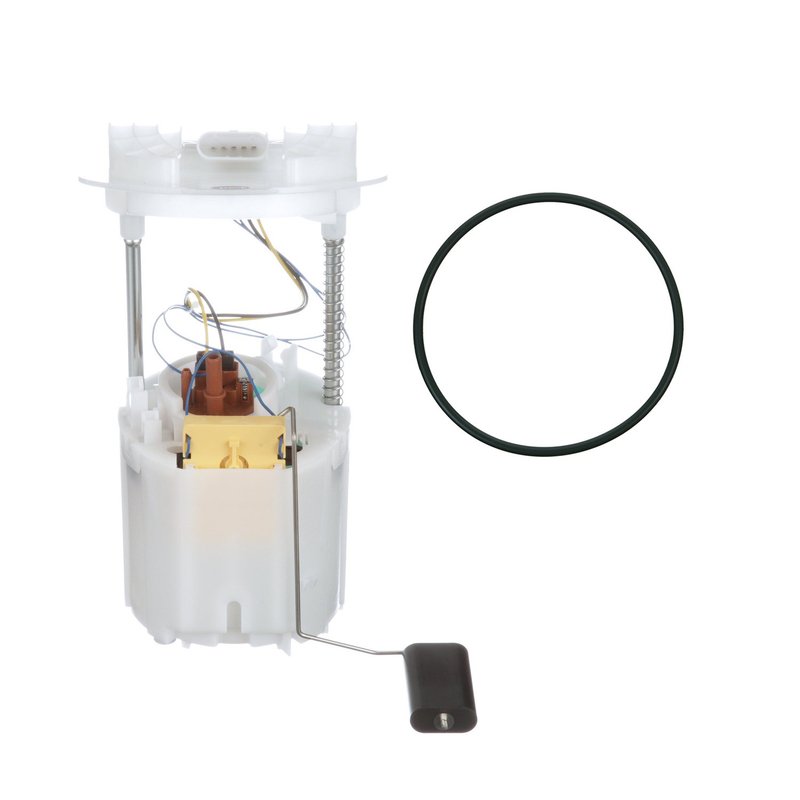

Carter P76270M Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Chrysler and Dodge Vehicles

The Carter P76270M fuel pump module assembly is designed specifically for select Chrysler and Dodge models, including the 300, Challenger, Charger, and Magnum. This electric fuel pump module ensures consistent fuel delivery and integrates essential components for efficient operation.

• Fuel sending unit included for accurate fuel level readings
• Negative ground design compatible with vehicle electrical systems
• 7.89-inch outlet outside diameter with quick connect outlet type
• White oval-shaped connector with 5 male blade terminals
• Internal strainer included to protect the fuel system
• Pom housing material for durability and resistance
• Gasket or seal included for secure installation
• Specific fit for Chrysler and Dodge 300, Challenger, Charger, and Magnum models
• Minimum flow rating of 24 ensures adequate fuel supply

Detailed Product Description

The Carter P76270M fuel pump module assembly is engineered to meet the precise requirements of Chrysler and Dodge vehicles such as the 300, Challenger, Charger, and Magnum. This electric pump module features a built-in fuel sending unit, allowing the vehicle’s fuel gauge to provide accurate readings. The module’s negative ground design aligns with the electrical systems of these vehicles, ensuring proper function and safety.

Constructed with a durable Pom housing, the module includes an internal strainer to filter out contaminants before fuel reaches the engine. The outlet has a quick connect type with a 7.89-inch outside diameter, facilitating straightforward connection to the fuel line. The white oval connector with five male blade terminals supports secure electrical connections. A gasket or seal is included to prevent leaks during installation.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Chrysler 300, Dodge Charger, Challenger, and Magnum models
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Eliminates fuel flow interruptions caused by clogged or damaged pump modules
• Prevents engine stalling or hesitation related to fuel supply problems
• Replaces worn or failing fuel pump assemblies to maintain vehicle performance

Installation Notes and Tips

• Ensure compatibility with your specific Chrysler or Dodge model before installation
• Use the included gasket or seal to prevent fuel leaks
• Verify the connector color and terminal type match your vehicle’s wiring harness
• Handle the fuel pump module carefully to avoid damage to the internal strainer
• Consult vehicle service manual for proper removal and installation procedures

Quality Assurance and Warranty

The Carter P76270M fuel pump module assembly is manufactured to meet OEM specifications for fit and function. While mounting hardware, regulator, lock ring, wire harness, and fuel tank pressure sensor are not included, the module is designed for direct replacement in compatible Chrysler and Dodge vehicles. Carter provides a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
