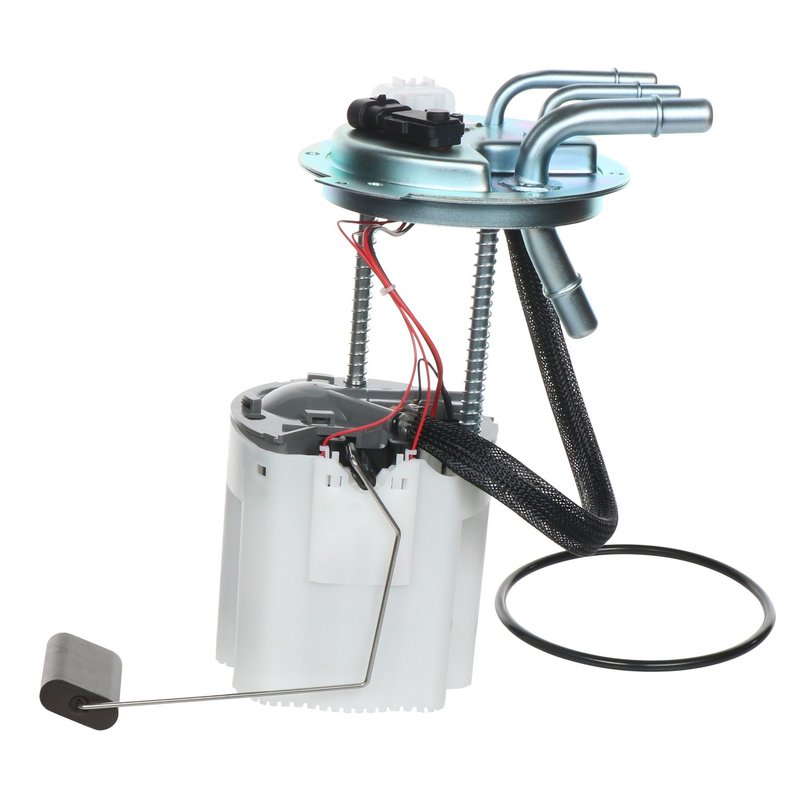

Carter P76272M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Select GM Vehicles

The Carter P76272M fuel pump module assembly is designed specifically for select Cadillac, Chevrolet, and GMC models, including the Avalanche 1500, Escalade ESV, Escalade EXT, Suburban 1500, and Yukon XL 1500. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored for your vehicle's fuel system requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical grounding
• White connector with spade-shaped, male blade terminals (4 terminals)
• Internal strainer inlet type with quick connect outlet fitting
• Includes gasket or seal and fuel tank pressure sensor
• Designed for specific fitment on GM full-size SUVs and trucks
• Operates on 12-volt electrical system with minimum flow rating of 74 and minimum pressure of 60 psi

Detailed Product Features and Specifications

The Carter P76272M fuel pump module assembly is an electric pump designed for regular grade fuel systems. It features an internal strainer inlet type with a 3/8-inch fitting thread size and a 5/16-inch quick connect outlet fitting, ensuring secure and leak-free fuel flow. The module includes a fuel sending unit for precise fuel level monitoring and a fuel tank pressure sensor to maintain optimal system performance. The connector is white with a spade shape and male blade terminals, providing reliable electrical connections. While mounting hardware and lock ring are not included, the assembly comes with a gasket or seal to ensure proper installation and prevent leaks.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following GM vehicles:

• Cadillac Escalade ESV and Escalade EXT
• Chevrolet Avalanche and Avalanche 1500
• Chevrolet Suburban 1500
• GMC Yukon XL 1500

It is designed for specific fitment, ensuring proper integration with the vehicle's fuel system and electrical components.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending unit
• Fuel system pressure inconsistencies affecting engine performance
• Fuel contamination caused by damaged or missing internal strainer
• Electrical connection problems related to terminal or connector wear

Installation Notes and Tips

When installing the Carter P76272M fuel pump module assembly, ensure the vehicle's battery is disconnected to prevent electrical hazards. Verify that the gasket or seal is properly seated to avoid fuel leaks. Since mounting hardware and lock ring are not included, reuse existing components or source compatible parts as needed. Confirm connector polarity and terminal alignment before securing electrical connections. It is recommended to inspect the fuel tank and lines for debris or damage during installation.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P76272M assembly undergoes rigorous testing to ensure reliable operation under normal driving conditions. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in its durability and performance for your Cadillac, Chevrolet, or GMC vehicle.
