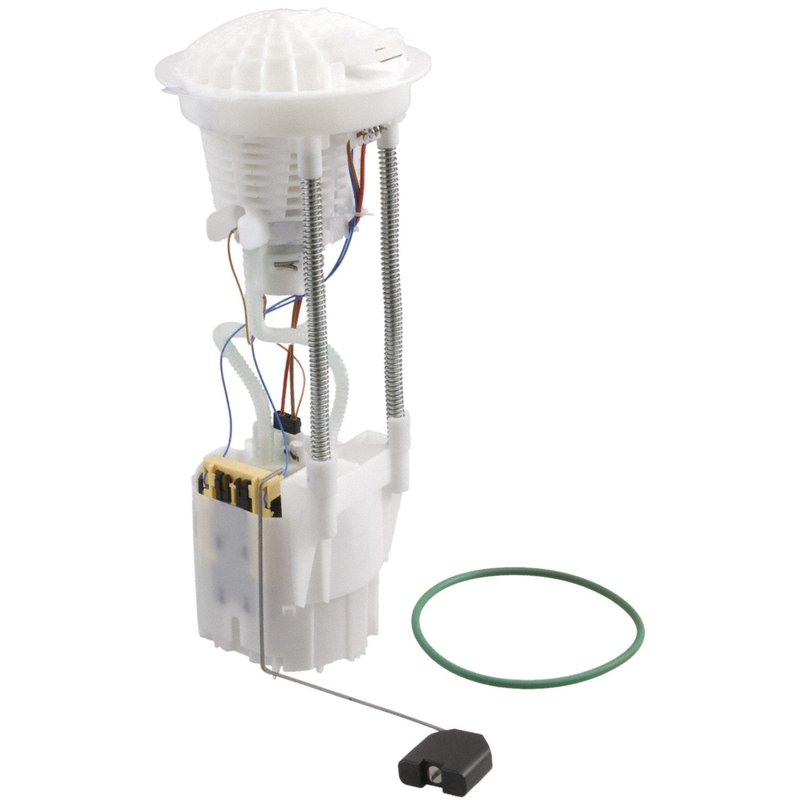

Carter P76277M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Carter P76277M fuel pump module assembly is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This electric fuel pump module ensures consistent fuel delivery and integrates essential components for optimal engine performance.

• Includes fuel sending unit and regulator for accurate fuel level and pressure control
• Negative ground design with a white rectangular connector and blade terminals
• Constructed with durable POM housing material and internal strainer for fuel filtration
• Top mount diameter of 152.0 mm and height of 367 mm for precise fitment
• Equipped with a fuel tank pressure sensor and gasket for secure installation
• Outlet quick connect port with 9.49 mm outside diameter for efficient fuel flow
• Compatible with specific Dodge Ram 1500, 2500, and 3500 models

Detailed Product Description

The Carter P76277M fuel pump module assembly is engineered to meet the exact specifications of Dodge Ram 1500, Ram 2500, and Ram 3500 trucks. Featuring an electric pump type with a minimum flow rating of 76, this module includes a fuel sending unit and regulator to maintain proper fuel pressure and accurate fuel level readings. The internal strainer and POM housing material provide reliable filtration and durability under demanding conditions. The module’s connector is a white, male, rectangular shape with four blade terminals, ensuring secure electrical connections. Designed for negative ground systems, it includes a fuel tank pressure sensor and gasket for a sealed installation. The top mount diameter of 152.0 mm and height of 367 mm allow for a precise fit in the fuel tank, while the quick connect outlet port simplifies fuel line attachment.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Dodge Ram 1500, 2500, and 3500 trucks
• Resolves fuel level gauge inaccuracies with integrated sending unit
• Eliminates fuel pressure fluctuations through built-in regulator
• Prevents fuel contamination with internal strainer
• Addresses fuel pump failure symptoms such as engine stalling or hard starts

Installation Notes and Tips

• Ensure compatibility with your specific Dodge Ram model and year before installation
• Use the included gasket to prevent fuel leaks during mounting
• Verify electrical connections match the white rectangular connector with blade terminals
• Check that the fuel tank is depressurized before removing the old pump module
• Mount the module securely using existing hardware; mounting hardware is not included

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76277M part undergoes rigorous testing to ensure reliable operation in Dodge Ram 1500, 2500, and 3500 trucks. This product includes a fuel sending unit, regulator, and pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the original product documentation or authorized sources.
