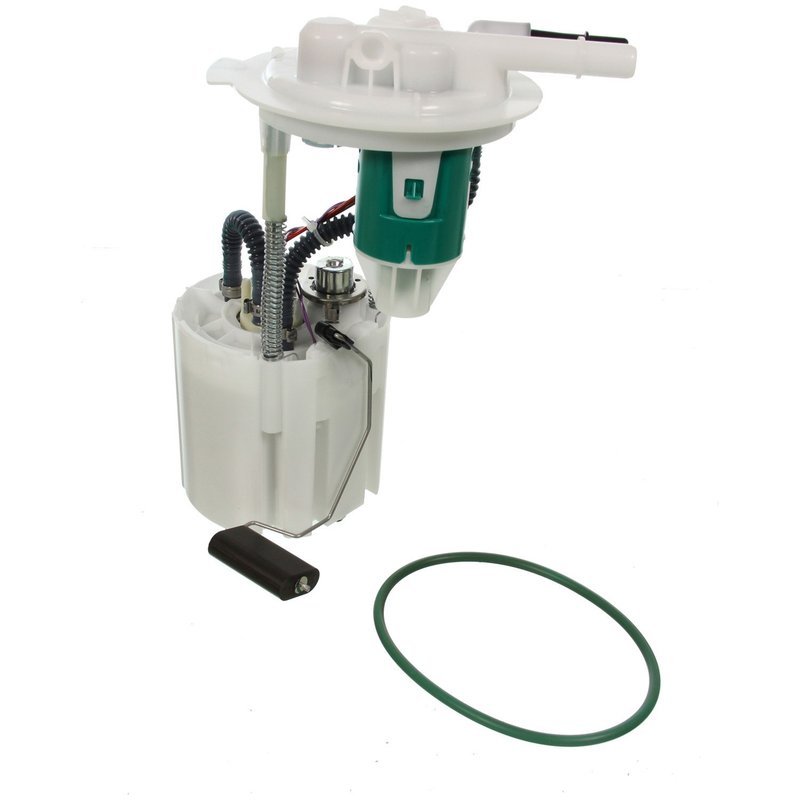

Carter P76279M Fuel Pump Module Assembly

Brand Carter P76279M
Fuel Sending Unit Included Yes
Negative Ground Yes
Connector Color White
Regulator Included No
Terminal Type Blade
Mounting Hardware Included No
Universal Or Specific Fit Specific
Grade Type Regular
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Connector Gender Male
Terminal Gender Male
Strainer Included Yes
Inlet Type Port
Outlet Type Quick connect
Fuel Filter Included No
Internal Or External Strainer Internal
Wire Harness Included No
Fuel Tank Pressure Sensor Included No
Minimum Flow Rating 63
Pump Type Electric
Inlet Fitting Thread Size 3/8
Minimum Pressure 55.0
Voltage 12v
Fits Buick, Chevrolet, and Pontiac · 9 vehicles

OE fit, form, function. Built as a specific-fit fuel pump module for targeted service applications.

Complete module design. Includes the sending unit, seal, and internal strainer for streamlined replacement.

Service-ready connections. Uses a quick-connect outlet and port inlet with a 12V electric pump.

Cross-references Airtex Fuel Pumps E3749M, Delphi FG1509 and Delphi FG1858 for the same application. See all 15.

$255.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $255.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Fuel Pump Module Overview

The Carter P76279M fuel pump module assembly is a specific-fit replacement built for applications that require OE fit, form, and function. It combines the pump, sending unit, gasket or seal, and strainer in one assembly for a direct service solution.

Compatible with Chevrolet Impala, Buick Allure, Buick LaCrosse, and Pontiac Grand Prix applications listed below, this module is built around a 12V electric pump with a quick-connect outlet and port inlet. The Carter P76279M is a practical choice when servicing fuel delivery issues on these vehicles.

Key Features

  • Specific-fit fuel pump module assembly for targeted applications
  • 12V electric pump with 55.0 minimum pressure and 63 minimum flow rating
  • Includes fuel sending unit, gasket or seal, and internal strainer
  • Male connector with blade terminals and white connector housing
  • Port inlet and quick-connect outlet for service-friendly fuel line connection
  • Negative ground design with 4-terminal configuration

Detailed Description

Carter P76279M is engineered as a fuel pump module assembly for vehicles that require a precise replacement rather than a universal part. The module is designed with a fuel sending unit, internal strainer, and seal included, helping restore fuel delivery and tank-level reporting in one service operation. Its regular-grade construction, 12V electric operation, and specific-fit design align with the needs of late-model GM applications such as Chevrolet Impala, Buick Allure, Buick LaCrosse, and Pontiac Grand Prix.

This part cross-references Airtex Fuel Pumps (e.g., E3749M) for the same application. The P76279M also cross-references Delphi FG1509 and FG1858 for the same application.

What It Is Used For

  • Restoring fuel pressure when the original pump no longer maintains output
  • Addressing inaccurate fuel level readings from a worn sending unit
  • Replacing a leaking or deteriorated module seal
  • Correcting fuel delivery interruptions caused by a restricted or failing strainer
  • Servicing fuel system complaints on listed Chevrolet, Buick, and Pontiac applications

Installation Notes and Tips

Verify the vehicle’s fuel system configuration before ordering, since fitment is limited to the listed applications and notes. Confirm the connector style, inlet and outlet style, and the Siemens fuel system requirement where specified. The module does not include mounting hardware or a lock ring, so reuse or source those items as needed during installation.

Quality Assurance

Carter Fuel Systems emphasizes OE fit, form, and function along with application-specific coverage and problem-solving design features. The P76279M is built to match the service requirements of the listed GM applications.

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersFuel TypeNotes
2010ChevroletImpala—3.5LV6GASApplies to Siemens Fuel System Fuel Systems Only; with 2 Tube Ports; Partial Zero Emissions Vehicle
2009BuickAllure—3.8LV6—with 2 Tube Ports; Partial Zero Emissions Vehicle
2009BuickLaCrosse—3.8LV6—with 2 Tube Ports; Partial Zero Emissions Vehicle
2009ChevroletImpala—3.5LV6GASwith 2 Tube Ports; Partial Zero Emissions Vehicle
2008BuickAllure—3.8LV6—Applies to Siemens Fuel System Fuel Systems Only; with 2 Tube Ports; Partial Zero Emissions Vehicle
2008BuickLaCrosse—3.8LV6—Applies to Siemens Fuel System Fuel Systems Only; with 2 Tube Ports; Partial Zero Emissions Vehicle
2008ChevroletImpala—3.5LV6GASApplies to Siemens Fuel System Fuel Systems Only; with 2 Tube Ports; Partial Zero Emissions Vehicle
2008PontiacGrand Prix—3.8LV6—Applies to Siemens Fuel System Fuel Systems Only; with 2 Tube Ports; Partial Zero Emissions Vehicle
2007ChevroletImpalaLS3.5LV6GASWith Vehicle Options: W(LZ4, FFW, NU6)
Directly replaces or cross-references 15 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E3749MDelphi — FG1509Delphi — FG185819168396191798241925791423120337A30373B11111983TGC0279MFP22050SM100134M2496220MU2166SP6031M
