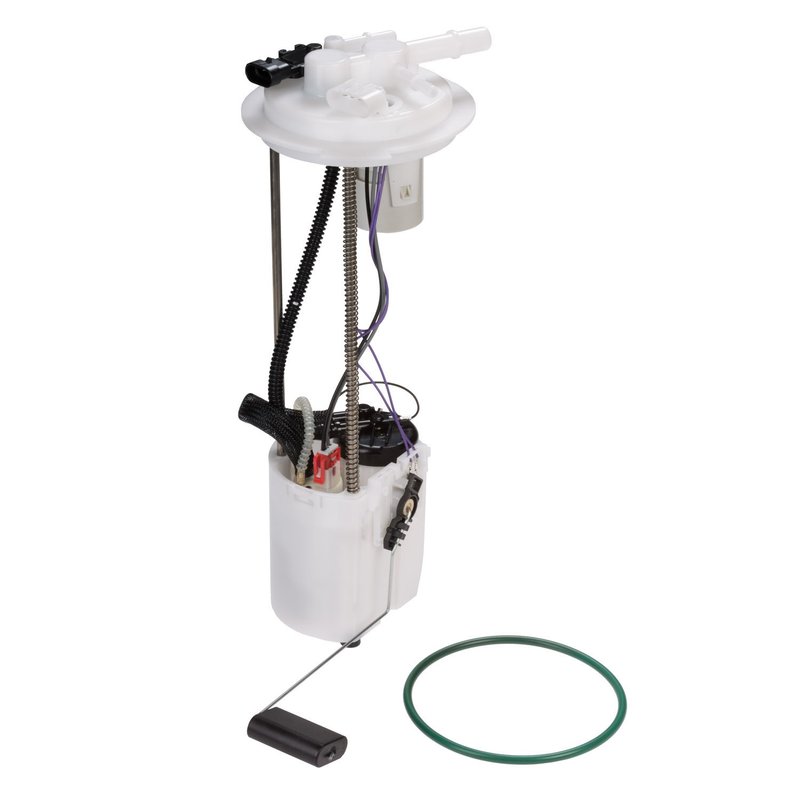

Carter P76294M Fuel Pump Module Assembly
| Brand | Carter P76294M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Outlet Outside Diameter | 9.5 |
| Connector Color | White |
| Regulator Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Fuel Filter Included | No |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Fuel Tank Pressure Sensor Included | Yes |
| Minimum Flow Rating | 53 |
| Pump Type | Electric |
| Inlet Fitting Thread Size | 3/8 |
| Minimum Pressure | 50.0 |
| Outlet Fitting Thread Size | 5/16 |
| Voltage | 12v |
| Fits | Chevrolet and GMC · 16 vehicles |
OE-style fit. Specific-fit fuel pump module assembly for direct replacement service.
Complete module. Includes the sending unit, strainer, seal, and tank pressure sensor.
Electric 12V design. Uses a quick-connect outlet and blade terminals for service replacement.
Cross-references Bosch 69965, Delphi FG0908 and Spectra Premium SP6629M for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly Overview
Carter P76294M is a specific-fit fuel pump module assembly for select full-size GM trucks. It combines the pump, fuel sending unit, gasket or seal, strainer, and fuel tank pressure sensor in one service assembly for a direct replacement approach.
Key Features
- Electric 12V fuel pump module with a specific-fit design
- Includes the fuel sending unit, strainer, gasket or seal, and fuel tank pressure sensor
- Quick-connect outlet and port-style inlet for service-friendly plumbing
- Male blade terminals with a 4-terminal oval connector
- Regular-grade construction with negative ground electrical design
Detailed Description
The Carter P76294M fuel pump module assembly is built for 2007-2008 Chevrolet Silverado 1500 and 2007-2008 GMC Sierra 1500 applications. It is engineered around OE fit, form, and function, making it a practical replacement for trucks that need a complete in-tank fuel delivery service part. The module uses a 12V electric pump, quick-connect outlet, and integrated fuel tank pressure sensor to match the original system layout. Carter P76294M is also referenced by cross numbers such as Bosch 69965 and Delphi FG0908 for the same application.
What It Is Used For
- Restoring fuel delivery when the in-tank pump is weak or inoperative
- Addressing inaccurate fuel level readings from a worn sending unit
- Replacing a leaking or deteriorated module seal
- Correcting fuel system faults related to the tank pressure sensor
- Servicing a truck that needs a direct-fit fuel pump module assembly
Installation Notes and Tips
Fits 2007-2008 Chevrolet Silverado 1500, N/A. Fits 2007-2008 GMC Sierra 1500, N/A. The fitment notes state that a wiring harness 888-601 may be required and that the vehicle should be checked prior to installation. Confirm connector count and tube-port configuration before beginning service. Use the correct fuel system procedures for the vehicle and verify all electrical and fuel line connections after installation.
Quality Assurance
Carter positions this fuel system program around premium OE fit, form, and function, with problem-solving features and broad vehicle coverage. P76294M is a specific-fit replacement built to match the original system layout for the listed applications.
| Year | Make | Model | Body Type | Bed Length | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | GMC | Sierra 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2008 | GMC | Sierra 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | GMC | Sierra 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 5.3L | V8 | GAS | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | GMC | Sierra 1500 | Standard Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
| 2007 | GMC | Sierra 1500 | Extended Cab Pickup | 8' 1" Foot Bed | 4.8L | V8 | — | May Require Wiring Harness 888-601. Check Prior to Installation; with 2 Connectors; with 3 Tube Ports |
