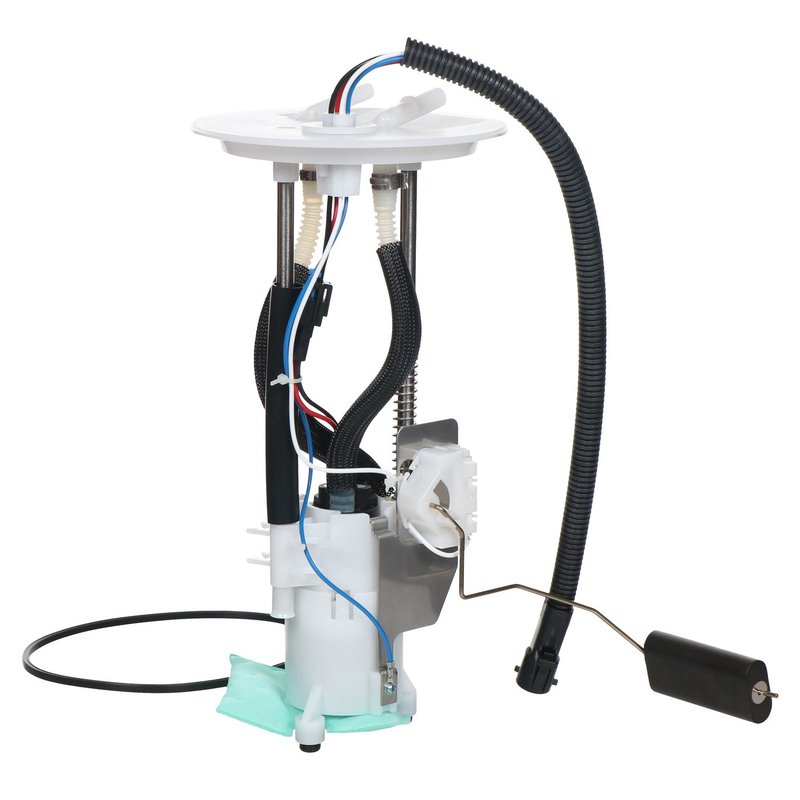

Carter P76296M Fuel Pump Module Assembly

Fuel Pump Module Overview

The Carter P76296M fuel pump module assembly is a specific-fit replacement built for fuel delivery service on the Lincoln Navigator. It combines the pump, sending unit, strainer, gasket or seal, and wire harness details needed for a complete module-style repair.

Fits 2003-2004 Lincoln Navigator, N/A. This Carter P76296M application is built around OE fit, form, and function for direct replacement service.

Key Features

• Electric 12V pump with a minimum pressure rating of 55.0 for fuel system service.
• Fuel sending unit, strainer, gasket or seal, and wire harness included in the module design.
• Male round connector with pin terminals and a quick-connect outlet for straightforward connection.
• Negative ground configuration with a specific-fit design for the listed application.
• External strainer layout and 4-wire construction for integrated fuel delivery operation.

Detailed Description

The Carter P76296M is a fuel pump module assembly engineered for the 2003-2004 Lincoln Navigator. It is designed as a specific-fit unit with OE-style fit, form, and function, making it a practical choice when replacing a worn or failing fuel delivery module. The module uses an electric 12V pump, includes the sending unit, and uses a quick-connect outlet with a round male connector and pin terminals. Carter P76296M is also cross-referenced to Airtex E2362M and Delphi FG0866 for the same application.

Carter’s fuel systems program focuses on application coverage and problem-solving design features, which is reflected in this module’s integrated construction and service-oriented layout. The P76296M supports fuel system restoration where consistent pressure, proper tank signal output, and secure electrical connection are required.

Common Issues This Part May Address

• Hard starting caused by weak or inconsistent fuel delivery.
• Fuel gauge readings that no longer match tank level.
• Engine stalling from insufficient fuel pressure.
• Electrical connection problems at the fuel pump module.
• Fuel system leaks at the module seal or outlet connection.

Installation Notes and Tips

Verify connector shape, terminal count, outlet style, and inlet size before installation. Confirm the tank opening and electrical interface match the listed application for the Lincoln Navigator. Replace the seal during service and inspect the tank and fuel lines for wear or contamination before installing the new module.

Quality Assurance

Carter positions this fuel systems program around premium OE fit, form, and function with broad vehicle coverage and problem-solving features.
