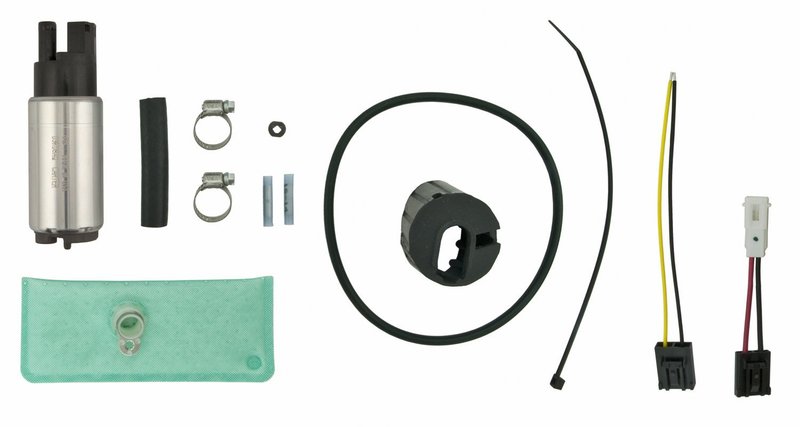

Carter P76304 Fuel Pump and Strainer Set - Rear

Reliable In-Tank Fuel Pump and Strainer Set for Ford E-Series

The Carter P76304 fuel pump and strainer set is designed specifically for Ford E-150, E-150 Club Wagon, E-250, E-350 Club Wagon, and E-350 Super Duty models. This electric in-tank fuel pump delivers consistent fuel flow and pressure to support your vehicle's gas engine performance.

• Electric in-tank fuel pump with integrated strainer
• Compatible with 12V systems and gas fuel type
• Includes wiring harness and gasket for secure installation
• Blade terminal type with rectangular male connector
• Strainer length of 138mm with green external strainer
• Inlet outside diameter: 11.0mm; outlet outside diameter: 9.0mm
• Minimum flow rating of 33 and minimum pressure of 60 psi

Technical Details and Specifications

The Carter P76304 fuel pump features a blade terminal type with two male terminals and a rectangular male connector shape, ensuring compatibility with factory wiring harnesses. The pump operates at 12 volts and draws an average current of 10 amps. It includes an external green strainer with a length of 138mm and an 11.0mm fitting diameter, designed to filter fuel before it enters the pump inlet. The outlet is a single hose barb type with a 9.0mm outside diameter, facilitating secure fuel line connections. This pump does not include a fuel pressure regulator or fuel tank pressure sensor but comes with a gasket or seal to prevent leaks during installation.

Compatible Ford Models and Applications

This fuel pump and strainer set is compatible with the following Ford vehicles:

• Ford E-150
• Ford E-150 Club Wagon
• Ford E-250
• Ford E-350 Club Wagon
• Ford E-350 Super Duty

Designed for in-tank placement, the Carter P76304 supports gas-powered engines requiring reliable fuel delivery and filtration.

Common Issues Addressed by This Fuel Pump

• Intermittent engine stalling due to inconsistent fuel flow
• Hard starting or failure to start caused by weak fuel pressure
• Fuel pump noise or failure from clogged or damaged strainers
• Reduced engine performance from insufficient fuel delivery
• Fuel leaks prevented by included gasket and proper sealing

Installation Notes and Tips

When installing the Carter P76304 fuel pump and strainer set, ensure the vehicle’s battery is disconnected to avoid electrical hazards. Verify the correct orientation of the pump with the inlet and outlet diameters matching the fuel lines. Use the included gasket or seal to prevent leaks and confirm the wiring harness connections match the blade terminal and rectangular connector shapes. This pump is designed for in-tank installation, so proper handling and safety precautions when accessing the fuel tank are essential.

Quality Assurance and Warranty

Carter fuel pumps are manufactured to meet OEM specifications for durability and performance. The P76304 model includes a wiring harness and gasket to support reliable installation. While specific warranty details may vary, Carter products typically come with a limited warranty covering defects in materials and workmanship. Always consult product documentation or authorized sources for exact warranty terms.
