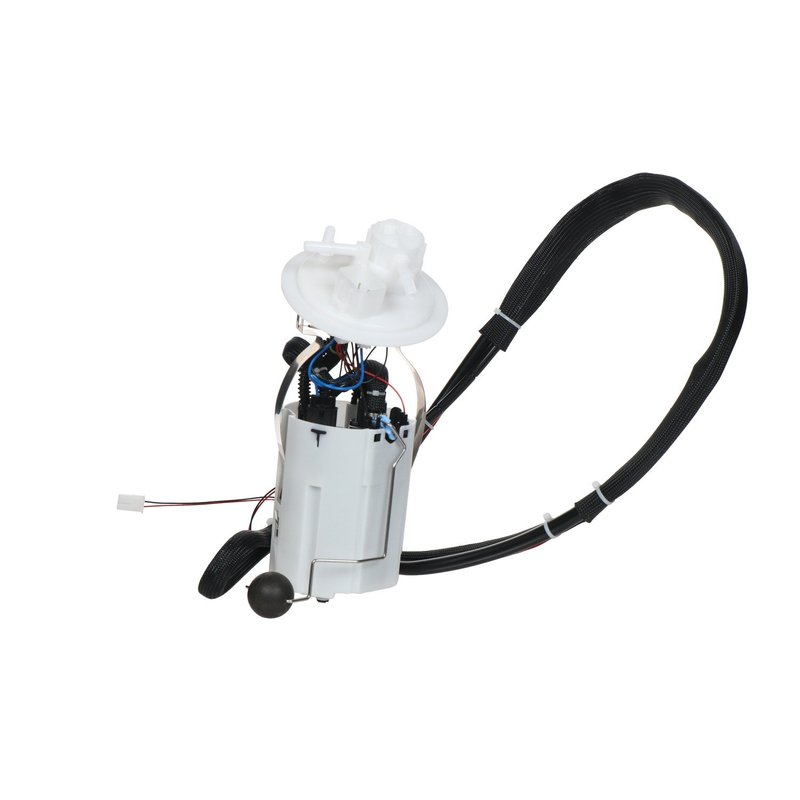

Carter P76325M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volvo Vehicles

The Carter P76325M fuel pump module assembly is designed specifically for select Volvo models, including the S60, S80, V70, XC70, and XC90. This electric fuel pump module ensures consistent fuel delivery with integrated components tailored to your vehicle's requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground design compatible with Volvo electrical systems
• White connector with male gender and blade-type terminals
• Internal strainer included to protect the fuel system
• Port inlet and quick connect outlet for secure fuel line attachment
• Minimum flow rating of 46 and minimum pressure of 57.0 psi
• Specific fit for Volvo S60, S80, V70, XC70, and XC90 models
• Operates on standard 12-volt electrical systems

Detailed Product Features and Specifications

The Carter P76325M fuel pump module assembly is engineered to meet the precise fuel delivery needs of Volvo vehicles. It includes a fuel sending unit to provide accurate fuel level data to the dashboard gauge. The pump operates on a 12-volt system with a negative ground configuration, matching Volvo’s electrical setup. The module features a white connector with seven blade-type terminals, all male, ensuring a secure and reliable electrical connection. An internal strainer is integrated to filter out contaminants before fuel reaches the engine, helping maintain system integrity. The inlet uses a port design, while the outlet employs a quick connect fitting for efficient installation and fuel line security. This assembly does not include a regulator, gasket, mounting hardware, or wire harness, so those components should be sourced separately if needed.

Compatible Volvo Models and Applications

This fuel pump module assembly is compatible with the following Volvo models:

• Volvo S60
• Volvo S80
• Volvo V70
• Volvo XC70
• Volvo XC90

It is designed for regular grade fuel systems and is intended to replace the original equipment fuel pump module in these vehicles.

Common Issues Addressed by the Carter P76325M

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sending unit
• Fuel system contamination causing engine performance issues
• Electrical connection problems with worn or damaged terminals
• Fuel pump noise or inconsistent pressure output

Installation Notes and Tips

Installation of the Carter P76325M fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on the vehicle model. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Since mounting hardware, gasket, and wire harness are not included, verify that these components are available or in good condition before installation. Use appropriate tools to avoid damaging the quick connect fittings and terminals. After installation, check for fuel leaks and proper fuel pressure to confirm correct operation.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The P76325M is tested for electrical performance and durability to ensure reliable operation in Volvo S60, S80, V70, XC70, and XC90 models. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
