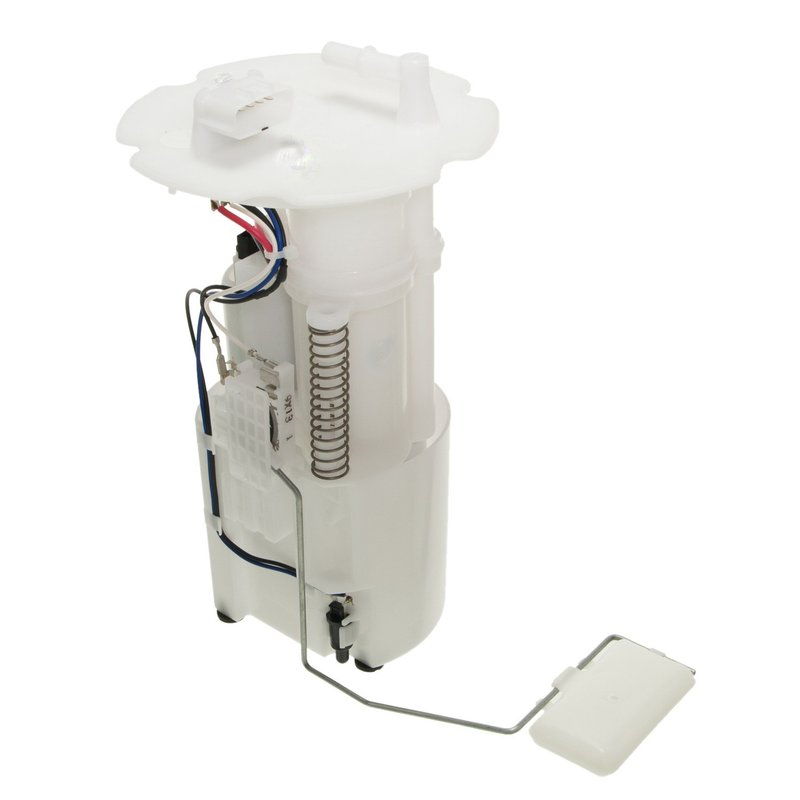

Carter P76334M Fuel Pump Module Assembly
| Brand | Carter P76334M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Connector Color | White |
| Regulator Included | No |
| Terminal Type | Spade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | No |
| Terminal Quantity | 5 |
| Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Fuel Filter Included | No |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Minimum Flow Rating | 36 |
| Pump Type | Electric |
| Inlet Fitting Thread Size | 3/8 |
| Minimum Pressure | 51.0 |
| Voltage | 12v |
| Fits | INFINITI and Nissan · 9 vehicles |
OE-style replacement. Built for specific-fit service with OE fit, form, and function.
Complete module design. Includes the fuel sending unit and internal strainer in one assembly.
Electrical details matter. 12V electric pump with a white rectangular connector and 5 terminals.
Cross-references Airtex Fuel Pumps E8534M, Autobest F4545A and Bosch 69868 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Nissan and INFINITI
Carter fuel pump module assembly P76334M is a specific-fit replacement for select Nissan and INFINITI applications. It combines the pump, sending unit, and internal strainer in one assembly to restore fuel delivery and tank level reporting.
- Specific-fit fuel pump module assembly for direct application matching
- Electric 12V pump with 51.0 minimum pressure and 36 minimum flow rating
- Includes fuel sending unit and internal strainer for complete fuel system service
- White rectangular connector with male spade terminals and 5 terminals
- Quick-connect outlet and 3/8 inlet fitting thread size
Detailed Product Overview
P76334M is built for 2003-2009 Nissan 350Z and 2005-2006 INFINITI G35 applications. The module is designed around premium OE fit, form, and function, giving technicians a direct replacement option for fuel system service on these platforms. This part cross-references Bosch 69868 and Delphi FG1084 for the same application.
As a fuel pump module assembly, this unit addresses the pump and sender together, which is important when diagnosing fuel delivery complaints or inaccurate fuel level readings. The Carter P76334M is a practical choice for Nissan 350Z and INFINITI G35 repairs where a specific-fit module is required.
Common Issues It Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge readings that do not match tank level
- Loss of fuel flow under load
- Fuel system service needs tied to a worn module assembly
Installation Notes and Tips
Verify connector style, outlet type, and tank configuration before installation. This module uses a male rectangular connector, male spade terminals, and a quick-connect outlet, so matching the original electrical and fuel connections is important for proper installation.
Quality Assurance
Carter positions this program around OE fit, form, and function, with vehicle coverage and problem-solving features developed for service replacement applications.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| 2008 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| 2007 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| 2006 | INFINITI | G35 | Coupe | Manual | 3.5L | V6 | — |
| 2006 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| 2005 | INFINITI | G35 | Coupe | Manual | 3.5L | V6 | — |
| 2005 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| 2004 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| 2003 | Nissan | 350Z | — | — | 3.5L | V6 | — |
| No rows match your filter. | |||||||
