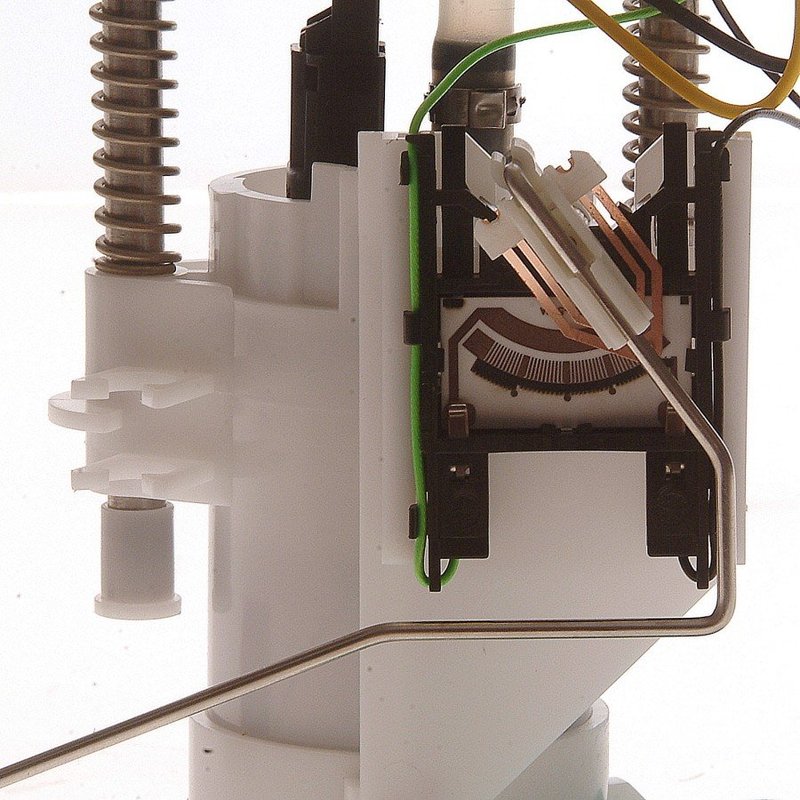

Carter P76336M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-150 and Lincoln Mark LT

The Carter P76336M fuel pump module assembly is designed specifically for Ford F-150 and Lincoln Mark LT models. This electric fuel pump module ensures consistent fuel delivery with a built-in fuel sending unit and external strainer for optimal performance.

Key Features of Carter P76336M Fuel Pump Module

• Includes fuel sending unit for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• White rectangular connector with 4 male blade terminals
• External strainer inlet type with quick connect outlet fitting
• Gasket or seal included for secure installation
• Designed for specific fitment to Ford F-150 and Lincoln Mark LT
• Electric pump operating at 12 volts with minimum flow rating of 25
• Inlet fitting thread size 3/8 inch and outlet fitting thread size 5/16 inch

Detailed Description of Carter Fuel Pump Module Assembly P76336M

This Carter fuel pump module assembly (part number P76336M) is engineered for direct replacement in select Ford and Lincoln trucks, including the F-150 and Mark LT. The module features a built-in fuel sending unit, allowing the vehicle’s fuel gauge to provide accurate readings. It operates on a 12-volt electric pump with a minimum flow rating of 25 and a minimum pressure of 45 psi, ensuring steady fuel delivery under various driving conditions. The external strainer inlet helps prevent debris from entering the fuel system, while the quick connect outlet fitting simplifies fuel line attachment. The connector is a white rectangular shape with four male blade terminals, designed for negative ground electrical systems. A gasket or seal is included to maintain a secure and leak-free installation. This module does not include a regulator, lock ring, wire harness, or fuel tank pressure sensor, so those components must be sourced separately if needed.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford F-150 and Lincoln Mark LT
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Prevents fuel delivery interruptions caused by clogged or damaged strainers
• Addresses low fuel pressure issues affecting engine performance
• Eliminates electrical connection problems with proper connector and terminal design

Installation Notes and Tips

• Ensure compatibility with your specific Ford F-150 or Lincoln Mark LT model year before installation
• Use the included gasket or seal to prevent fuel leaks during assembly
• Verify the negative ground electrical system matches the pump’s requirements
• Check that the connector color and terminal type align with your vehicle’s wiring harness
• Do not reuse old mounting hardware; new hardware is not included with this module

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P76336M part undergoes rigorous testing to ensure reliable operation and durability. While specific warranty details may vary, Carter typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
