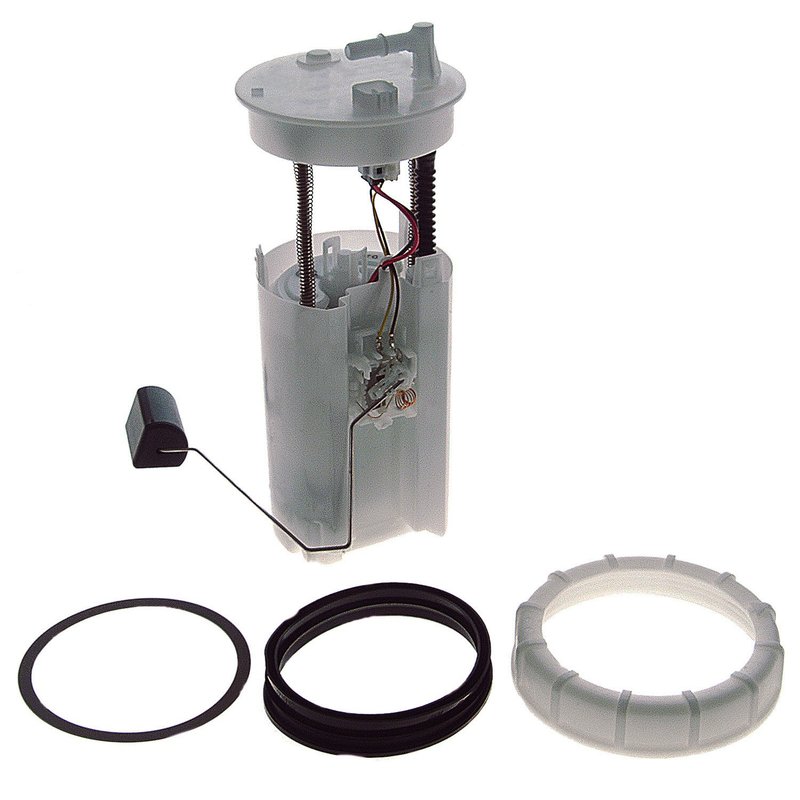

Carter P76419M Fuel Pump Module Assembly
| Brand | Carter P76419M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Connector Color | White |
| Regulator Included | No |
| Terminal Type | Spade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Housing Material | Pom |
| Terminal Quantity | 4 |
| Lock Ring Included | Yes |
| Connector Gender | Male |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Minimum Flow Rating | 43 |
| Pump Type | Electric |
| Inlet Fitting Thread Size | 3/8 |
| Minimum Pressure | 63.0 |
| Voltage | 12v |
| Fits | Acura and Honda · 13 vehicles |
Specific-fit design. Built for direct application matching on select fuel delivery systems.
Complete module service. Includes the sending unit, strainer, gasket or seal, and lock ring.
OE fit, form, function. Carter focuses on application coverage and problem-solving fuel system design.
Cross-references Delphi FG0958, Gates A33001 and Spectra Premium SP8049M for the same application. See all 13.
Fuel Pump Module Assembly Overview
The Carter P76419M fuel pump module assembly is a specific-fit replacement built for fuel delivery service on select Honda and Acura applications. It combines the pump module, sending unit, strainer, gasket or seal, and lock ring details needed for a complete service-focused replacement.
Key Features
- Specific-fit fuel pump module assembly for direct application matching.
- Electric pump design with 12V operation and a minimum pressure rating of 63.0.
- Minimum flow rating of 43 for consistent fuel delivery performance.
- Includes a fuel sending unit, internal strainer, gasket or seal, and lock ring.
- White square connector with male terminals and quick-connect outlet.
- POM housing material for the module body.
Detailed Description
Carter P76419M is engineered as a fuel pump module assembly for vehicles that require a specific-fit replacement rather than a universal part. The assembly is built around an electric pump with a 3/8 inlet fitting thread size, one quick-connect outlet, and a 4-terminal male spade connection layout. For buyers searching for a Honda Pilot fuel pump module assembly or an Acura MDX fuel pump module assembly, this part number provides the fitment and component layout needed for service work. It also applies to select Acura ZDX and Honda Pilot model years listed in the fitment data. The Carter P76419M part number should be verified against the vehicle application before ordering.
Common Problems This Part Can Address
- Hard starting caused by weak fuel delivery.
- Fuel level reading issues related to a worn sending unit.
- Fuel pressure loss from an aging pump module.
- Service concerns tied to a damaged strainer or seal.
- Connector or outlet mismatch during replacement work.
Installation Notes and Tips
Confirm the vehicle application, connector style, and outlet configuration before installation. This module uses a square white connector with male terminals, a quick-connect outlet, and a port-style inlet, so matching the original layout is important for proper installation. Mounting hardware and wire harness are not included. The Carter P76419M fuel pump module assembly is a specific-fit part, so compare the original unit and part number before service.
Quality Assurance
Carter Fuel Systems emphasizes OE fit, form, and function along with application coverage and problem-solving design. This part cross-references Delphi FG0958 and Spectra Premium SP8049M for the same application.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Honda | Pilot | — | 3.5L | V6 | — | — |
| 2014 | Honda | Pilot | — | 3.5L | V6 | — | — |
| 2013 | Honda | Pilot | LX | 3.5L | V6 | GAS | — |
| 2011 | Acura | MDX | — | 3.7L | V6 | — | — |
| 2011 | Acura | ZDX | — | 3.7L | V6 | — | — |
| 2011 | Honda | Pilot | — | 3.5L | V6 | — | — |
| 2010 | Acura | MDX | — | 3.7L | V6 | — | — |
| 2010 | Acura | ZDX | — | 3.7L | V6 | — | — |
| 2010 | Honda | Pilot | — | 3.5L | V6 | — | — |
| 2009 | Acura | MDX | — | 3.7L | V6 | — | — |
| 2009 | Honda | Pilot | — | 3.5L | V6 | — | — |
| 2008 | Acura | MDX | — | 3.7L | V6 | — | — |
| 2007 | Acura | MDX | — | 3.7L | V6 | — | — |
| No rows match your filter. | |||||||
