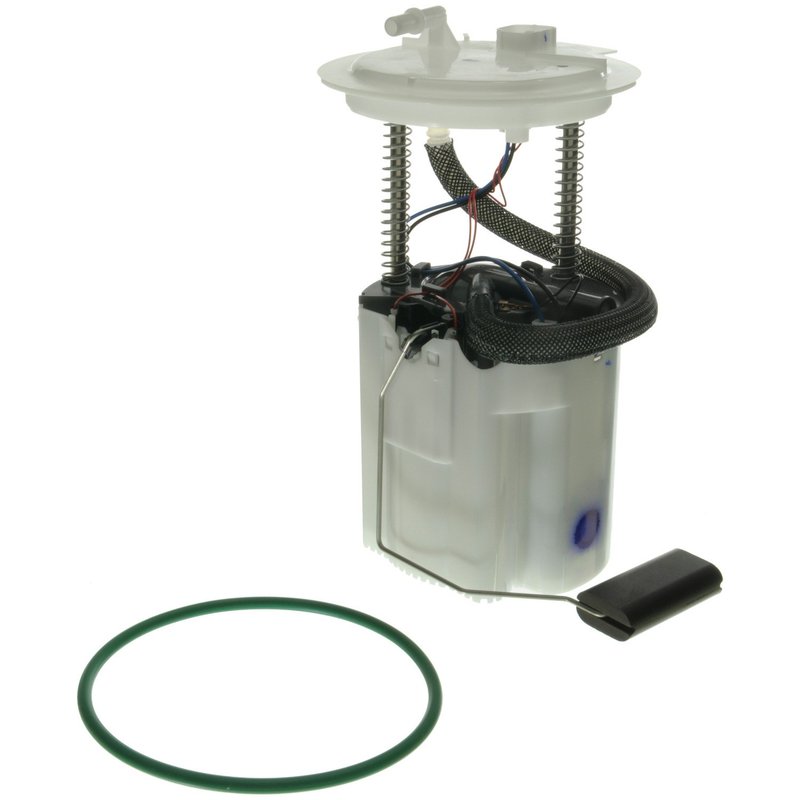

Carter P76462M Fuel Pump Module Assembly
| Brand | Carter P76462M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Wiring Harness Length | 300.0 |
| Wire Gauge Measurement | 20 |
| Connector Color | White |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| Wire Harness Included | No |
| Minimum Flow Rating | 44 |
| Pump Type | Electric |
| Inlet Fitting Thread Size | 3/8 |
| Minimum Pressure | 55.0 |
| Voltage | 12v |
| Fits | Ford · 4 vehicles |
OE fit, form, and function. Built for a specific fit with the right shape and performance.
Electric fuel pump module. Combines the pump, sending unit, and strainer in one assembly.
Plastic housing. Lightweight construction with a gasket or seal included.
Cross-references Airtex Fuel Pumps E2525M, Bosch 66029 and Delphi FG1327 for the same application. See all 13.
Carter P76462M Fuel Pump Module Assembly
The Carter P76462M fuel pump module assembly is a specific-fit replacement for 2009-2011 Ford Focus models. It combines the fuel pump, sending unit, and strainer in one assembly to restore fuel delivery and fuel level reporting with OE-style fit, form, and function.
Built for 12V electric operation, this module is a direct-fit option for Ford Focus fuel system service when the original in-tank assembly is worn or failing. The Carter P76462M is engineered for the 2009-2011 Ford Focus and includes the gasket or seal needed for installation.
Key Features
- Specific-fit fuel pump module assembly for 2009-2011 Ford Focus
- Electric 12V pump with a minimum pressure rating of 55.0
- Minimum flow rating of 44 for fuel delivery support
- Fuel sending unit included for fuel level signal restoration
- Strainer included to help protect the pump inlet
- Plastic housing with white male connector and trapezoid shape
- Quick connect outlet and 3/8 inlet fitting thread size
- Gasket or seal included
Detailed Description
Carter builds the P76462M as a direct replacement fuel pump module assembly for the Ford Focus, 2009-2011. It is a specific-fit unit with a 4-wire configuration, blade terminals, and a 300.0 wiring harness length, helping simplify replacement of the in-tank fuel delivery module. The assembly includes the fuel sending unit and strainer, making it a practical choice when the pump and level sender are serviced together. This part cross-references Bosch 66029 for the same application.
Common Problems This Part Can Help Solve
- Hard starting caused by weak fuel pressure
- Engine hesitation or stalling from inconsistent fuel delivery
- Inaccurate fuel gauge readings from a failing sending unit
- Fuel starvation from a worn pump or restricted inlet strainer
- Fuel system service needs on a 2009-2011 Ford Focus
Installation Notes and Tips
Verify the connector shape, terminal count, inlet type, and outlet style before installation. Replace the tank seal during service and confirm the module seats correctly in the fuel tank opening. Because this is a specific-fit Ford Focus fuel pump module assembly, compare the original unit to the Carter P76462M before final assembly.
Quality Assurance
Carter positions this fuel systems program around OE fit, form, and function with vehicle-specific coverage and problem-solving features. The P76462M is built to match the application requirements for 2009-2011 Ford Focus fuel system service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2011 | Ford | Focus | 2.0L | L4 | — |
| 2010 | Ford | Focus | 2.5L | L5 | — |
| 2010 | Ford | Focus | 2.0L | L4 | — |
| 2009 | Ford | Focus | 2.0L | L4 | — |
