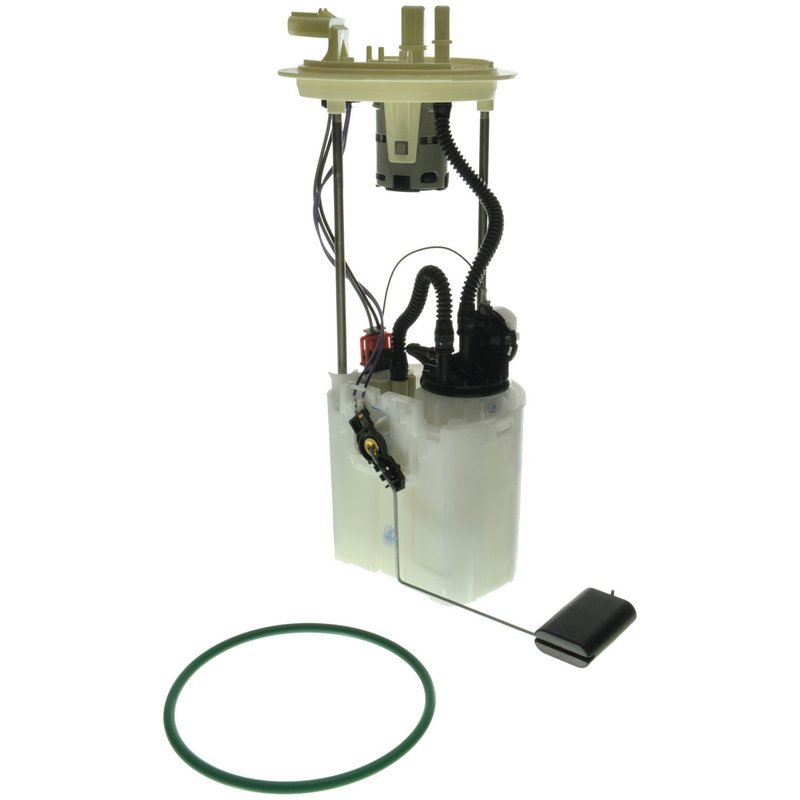

Carter P76466M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-150

The Carter P76466M fuel pump module assembly is designed specifically for Ford F-150 models, providing consistent fuel delivery and accurate fuel level readings. This electric fuel pump module ensures your vehicle maintains optimal performance with precise fitment and durable construction.

• Fuel sending unit included for accurate fuel level monitoring
• 300-inch wiring harness with 20-gauge wire for reliable electrical connections
• White rectangular male connector with 4 blade terminals
• Plastic housing with a 152mm top mount diameter for exact fit
• Includes gasket and strainer for secure sealing and fuel filtration
• Electric pump type with a minimum flow rating of 62 and minimum pressure of 60 psi
• Specific fitment for Ford F-150 models
• Inlet port with 3/8-inch fitting thread size and quick connect outlet

Detailed Product Description

The Carter P76466M fuel pump module assembly is engineered to meet the exact specifications of Ford F-150 trucks. Featuring a plastic housing and a top mount diameter of 152mm, this module fits securely into the fuel tank. The included fuel sending unit provides accurate fuel level data to the vehicle’s gauge. The wiring harness measures 300 inches and uses 20-gauge wire with four blade terminals housed in a white rectangular male connector, ensuring a stable and secure electrical connection. The electric pump delivers a minimum flow rating of 62 and maintains a minimum pressure of 60 psi, supporting consistent fuel delivery under various driving conditions. The assembly also includes a gasket and strainer to prevent leaks and filter out debris, although mounting hardware and wire harness are not included.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford F-150 trucks
• Resolves inaccurate fuel gauge readings due to faulty sending units
• Fixes fuel delivery problems causing engine hesitation or stalling
• Addresses fuel leaks by providing a proper gasket seal
• Improves fuel system reliability with a quality strainer to prevent clogging

Installation Notes and Tips

Installation requires removal of the fuel tank or access through the service panel, depending on the Ford F-150 model year. Ensure the wiring harness connections match the original setup, paying attention to the white rectangular male connector with four blade terminals. Use the included gasket to create a proper seal and prevent fuel leaks. Since mounting hardware and wire harness are not included, retain original components or source compatible parts. Verify the top mount diameter of 152mm for proper fitment before installation.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76466M part number undergoes rigorous testing to ensure reliable fuel delivery and accurate fuel level readings. This product includes a gasket and strainer to maintain system integrity. Warranty details should be confirmed with the distributor or retailer, as coverage may vary.
