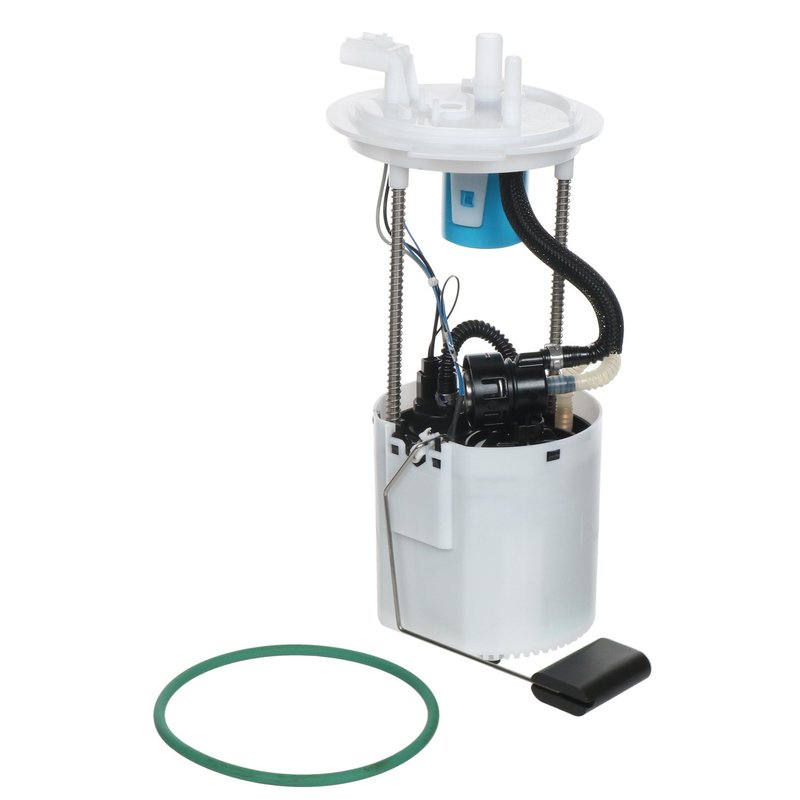

Carter P76467M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-150

The Carter P76467M fuel pump module assembly is designed specifically for Ford F-150 models, providing precise fuel delivery and consistent performance. This electric fuel pump module includes essential components to maintain your vehicle's fuel system efficiency.

• Fuel sending unit included for accurate fuel level readings
• 300-inch wiring harness with 20-gauge wire for secure electrical connections
• White rectangular connector with four blade terminals (male)
• Plastic housing with integrated strainer and gasket seal
• Quick connect outlet port with 3/8-inch inlet fitting thread size
• Minimum flow rating of 59 and minimum pressure of 60 psi
• Designed for specific fitment to Ford F-150 models

Detailed Features and Specifications

The Carter P76467M fuel pump module assembly is engineered to meet the fuel delivery requirements of Ford F-150 trucks. It features a 12-volt electric pump with a minimum flow rating of 59 and a minimum pressure of 60 psi, ensuring consistent fuel supply under various driving conditions. The module includes a fuel sending unit for accurate fuel level monitoring, and a strainer to prevent debris from entering the fuel system. The wiring harness measures 300 inches and uses 20-gauge wire with a white rectangular connector housing four blade terminals, providing reliable electrical connections. The outlet is a quick connect type, facilitating easier installation and maintenance. The plastic housing is durable and includes a gasket or seal to prevent leaks. This module is a specific fit for Ford F-150 models, ensuring compatibility and proper function.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford F-150 trucks
• Resolves inconsistent fuel pressure or flow issues
• Fixes inaccurate fuel gauge readings due to sending unit failure
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection problems with updated wiring harness and connectors

Installation Notes and Tips

Installation of the Carter P76467M fuel pump module assembly requires removal of the fuel tank and proper handling of fuel system components. Ensure the vehicle is depressurized before beginning work. The included gasket or seal must be properly seated to prevent leaks. Although mounting hardware is not included, use existing hardware or OEM replacements as needed. Verify the wiring harness connections match the vehicle’s factory setup, paying attention to the white rectangular connector and blade terminals. The quick connect outlet simplifies fuel line attachment. Professional installation is recommended for safety and optimal performance.

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The P76467M part undergoes rigorous quality control to ensure durability and reliable operation in Ford F-150 vehicles. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in its long-term performance.
