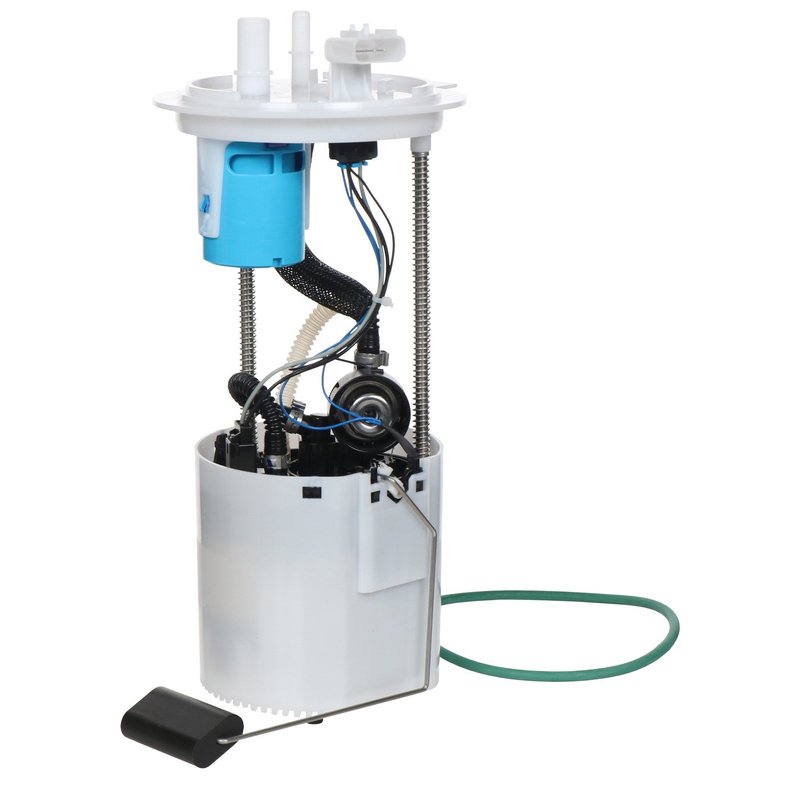

Carter P76474M Fuel Pump Module Assembly - Front

Reliable Fuel Pump Module Assembly for Ford E-Series Vans

The Carter P76474M fuel pump module assembly is designed specifically for Ford E-150, E-250, and E-350 Super Duty models. This electric fuel pump module ensures consistent fuel delivery and includes essential components for accurate fuel level readings and efficient operation.

• Fuel sending unit included for precise fuel level monitoring
• 300 mm wiring harness length with 20 gauge wire for reliable electrical connections
• White rectangular male connector with 4 blade terminals
• Plastic housing with a 152 mm top mount diameter
• Includes gasket and strainer for secure installation and fuel filtration
• Electric pump type with a minimum flow rating of 60 and minimum pressure of 50 psi
• Specific fit for Ford E-150, E-250, and E-350 Super Duty models
• Inlet port with 3/8 inch fitting thread size and quick connect outlet

Detailed Product Description

The Carter P76474M fuel pump module assembly is engineered to meet the exact specifications of Ford E-Series vans, including the E-150, E-250, and E-350 Super Duty. This module features a built-in fuel sending unit, allowing for accurate fuel level readings on your dashboard. The electric pump operates at 12 volts and delivers a minimum flow rate of 60 liters per hour with a pressure of at least 50 psi, ensuring consistent fuel supply to the engine.

The module's plastic housing is durable and designed for a top mount installation with a 152 mm diameter. It includes a white rectangular male connector with four blade terminals, providing secure and reliable electrical connections. The wiring harness length of 300 mm and 20 gauge wire ensures proper current flow. Additionally, the assembly comes with a gasket and strainer to prevent leaks and protect the pump from debris, although mounting hardware and wire harness are not included.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford E-150, E-250, and E-350 Super Duty vans
• Resolves inconsistent fuel gauge readings due to faulty sending units
• Fixes low fuel pressure problems causing engine hesitation or stalling
• Addresses fuel delivery interruptions from clogged strainers or damaged pump modules
• Restores proper fuel flow for improved engine performance and reliability

Installation Notes and Tips

• Ensure compatibility with Ford E-150, E-250, or E-350 Super Duty before installation
• Use the included gasket to prevent fuel leaks during top mount installation
• Check wiring connections carefully; the module uses a white rectangular male connector with four blade terminals
• Verify the inlet port thread size (3/8 inch) matches your vehicle’s fuel line fittings
• Mounting hardware and wire harness are not included and may need to be sourced separately

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76474M part undergoes rigorous testing to ensure durability and reliable performance in Ford E-Series vans. This product includes a gasket and strainer to maintain fuel system integrity. Warranty details should be confirmed with the product documentation or supplier.
