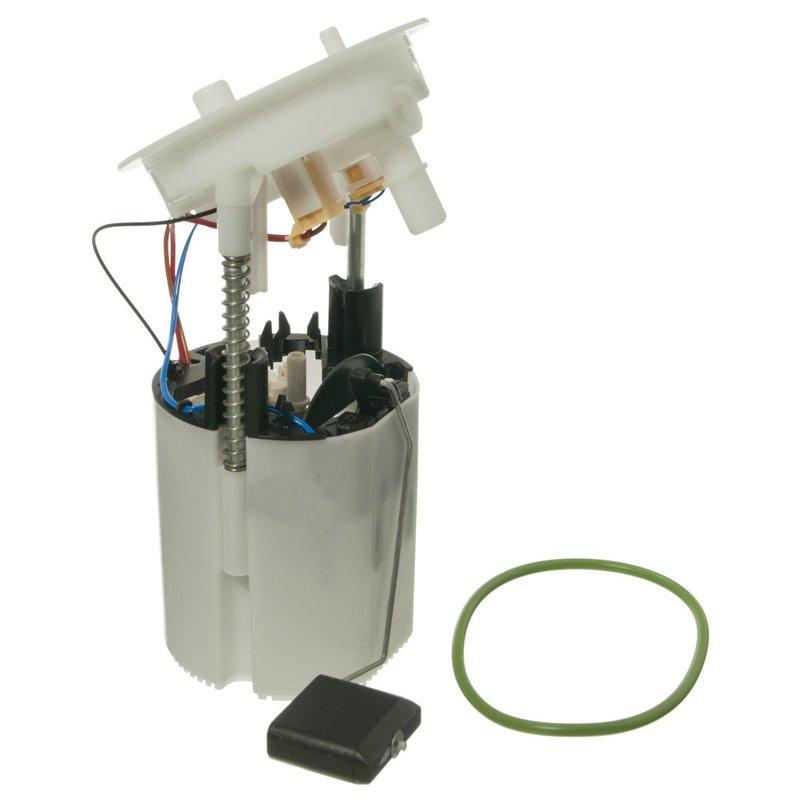

Carter P76486M Fuel Pump Module Assembly

Carter Fuel Pump Module Assembly P76486M

The Carter P76486M fuel pump module assembly is a specific-fit electric replacement for select BMW applications. It is built for OE fit, form, and function, with a focus on vehicle coverage and problem-solving design details for fuel delivery service.

Key Features

• Specific-fit fuel pump module assembly for select BMW models
• Electric pump type with a minimum pressure rating of 72.0
• Minimum flow rating of 23 for fuel delivery support
• Pin terminal type with an oval male connector
• Quick connect outlet and 5/16 inlet fitting thread size
• Gasket or seal included; mounting hardware not included
• No fuel filter included and no wire harness included

Detailed Description

Carter P76486M is a fuel pump module assembly engineered for direct replacement service on BMW 128i, 135i, 135is, 328i, 328i xDrive, 335i, 335i xDrive, 335is, 1 Series M, 323i, 328xi, 335xi, 325i, 325xi, 330i, and 330xi applications across the 2005-2015 model years. This part cross-references Airtex Fuel Pumps E8688M and Delphi FG0917 for the same application. For buyers searching for a BMW fuel pump module assembly, BMW 328i fuel pump replacement, or BMW 335i fuel pump module P76486M, this unit provides the specified connector, inlet, and outlet configuration needed for proper service.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation or stalling from insufficient pump output
• Fuel pressure loss in high-demand driving conditions
• Replacement of a worn or failing in-tank fuel pump module
• Restoration of proper fuel transfer to the engine

Installation Notes and Tips

Verify the connector shape, terminal type, inlet fitting size, and quick-connect outlet before installation. Because mounting hardware, wire harness, and fuel filter are not included, reuse or source the required related components as needed. Confirm vehicle-specific fitment for your BMW X1, 128i, 135i, 328i, or 335i application before service, and follow factory fuel system procedures to relieve pressure and inspect the tank seal during replacement.

Quality Assurance

Carter positions this fuel systems program around OE fit, form, and function, with application coverage and design details aimed at direct replacement service. The included gasket or seal supports proper reassembly at the tank interface.
