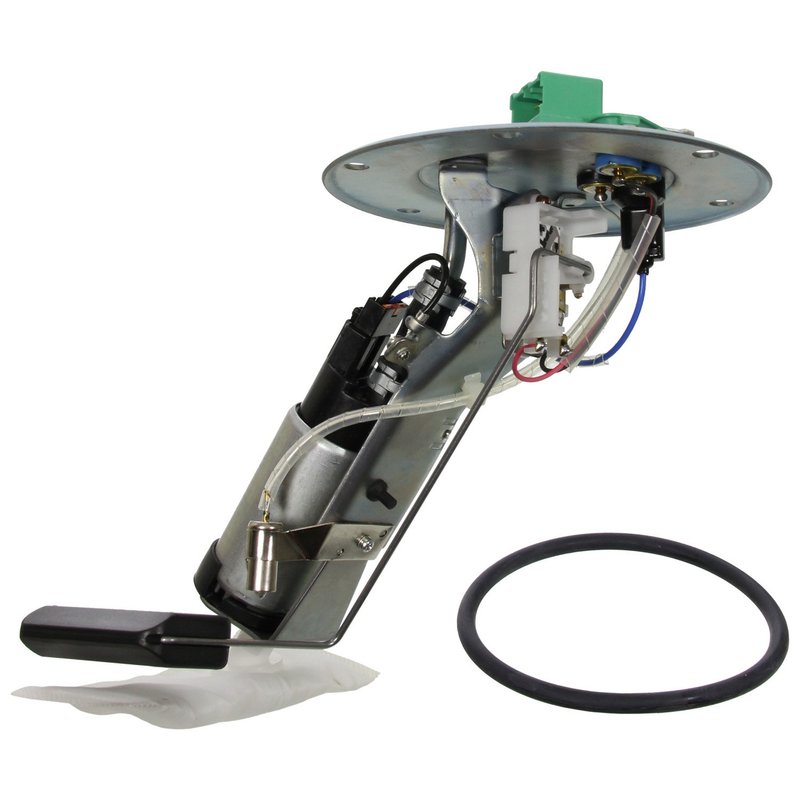

Carter P76553S Fuel Pump Hanger Assembly
| Brand | Carter P76553S |
|---|---|
| Connector Gender | Male |
| Connector Shape | Rectangle |
| Fuel Sending Unit Included | Yes |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Minimum Flow Rating | 22.45 |
| Minimum Pressure | 58 |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | 5/16 Inch |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Strainer Included | Yes |
| Terminal Quantity | 5 |
| Terminal Type | Spade |
| Universal Or Specific Fit | Specific |
| Voltage | 12V |
| Wire Harness Included | No |
| Fits | Honda · 2 vehicles |
OE fit, form, and function. Specific-fit fuel pump hanger assembly for straightforward replacement.
Fuel sending unit included. Built with a gasket, seal, and strainer for a complete assembly.
Electric pump design. 12V in-tank setup with quick-connect outlet and 58 psi minimum pressure.
Cross-references Delphi HP10240, Spectra Premium SP9155H and US Motor Works USEP8460S for the same application. See all 10.
Carter P76553S Fuel Pump Hanger Assembly
The Carter P76553S is a specific-fit fuel pump hanger assembly for in-tank fuel delivery service. Built for 1997-1998 Honda CR-V applications, it combines the fuel pump, sending unit, strainer, and sealing components needed for a direct replacement on the fuel system side.
For Honda CR-V owners searching for a fuel pump hanger assembly, Carter P76553S provides OE-style fit, form, and function with vehicle-specific coverage. It is a 12V electric in-tank unit with a quick-connect outlet and a 5/16 inch outlet fitting thread size.
Key Features
- Specific-fit fuel pump hanger assembly for 1997-1998 Honda CR-V
- Fuel sending unit included for fuel level signal replacement
- In-tank electric pump design with 12V operation
- Quick-connect outlet with 5/16 inch outlet fitting thread size
- Strainer and gasket/seal included
- 5-terminal spade-style connector with rectangle male connector shape
- Minimum pressure rating of 58 and minimum flow rating of 22.45
Product Details
Carter P76553S is engineered as a direct replacement fuel pump hanger assembly for the 1997-1998 Honda CR-V. It is built for in-tank installation and includes the fuel sending unit, strainer, and gasket or seal needed for the assembly. The unit uses a rectangular male connector with five terminals and spade-style terminals, along with a quick-connect outlet for fuel line connection.
This part cross-references Delphi HP10240 for the same application. If you are replacing a worn fuel pump hanger assembly on a Honda CR-V, Carter P76553S is a direct-fit option that matches the vehicle-specific fuel system layout.
Common Repair Uses
- Fuel pump failure on a 1997-1998 Honda CR-V
- Inaccurate fuel level readings from a worn sending unit
- Hard starting caused by weak in-tank fuel delivery
- Fuel pressure loss from a deteriorated pump assembly
- Fuel system service when the hanger assembly, strainer, or seal is worn
Installation Notes
Install this fuel pump hanger assembly in the tank using the vehicle’s specific fuel system layout. Verify connector shape, terminal count, outlet style, and outlet fitting size before installation. Because mounting hardware and wire harness are not included, reuse or source the required vehicle-specific components as needed. Always confirm the tank is clean and inspect the fuel lines and electrical connector before final assembly.
Quality Assurance
Carter Fuel Systems focuses on OE fit, form, and function with vehicle coverage and problem-solving features for fuel delivery service. P76553S is built to match the application requirements of the 1997-1998 Honda CR-V and support direct replacement needs in the fuel system.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Honda | CR-V | 2.0L | L4 | N/A | — |
| 1997 | Honda | CR-V | 2.0L | L4 | N/A | — |
