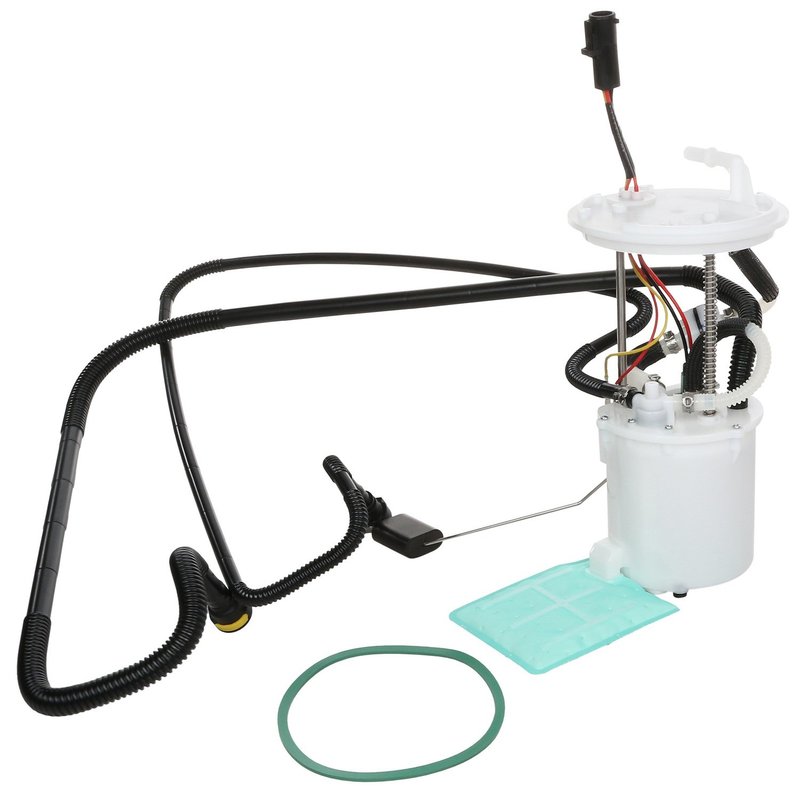

Carter P76604M Fuel Pump Module Assembly - Right
| Brand | Carter P76604M |
|---|---|
| Position | Right |
| Connector Gender | Male |
| Connector Shape | Round |
| Fuel Filter Included | No |
| Gasket Or Seal Included | Yes |
| Grade Type | Regular |
| Inlet Type | Strainer |
| Minimum Flow Rating | 39 |
| Minimum Pressure | 80.0 |
| Mounting Hardware Included | No |
| Outlet Outside Diameter | 9.7 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Terminal Type | Pin |
| Universal Or Specific Fit | Specific |
| Wire Harness Included | No |
| Fits | Jaguar · 12 vehicles |
OE fit, form, function. Built for a specific fit with premium replacement quality.
Electric fuel pump. Delivers dependable fuel delivery with 80.0 minimum pressure.
Quick-connect outlet. Makes installation cleaner with a round connector and pin terminals.
Cross-references Delphi FG1712, 2920595 and A30377 for the same application. See all 11.
Carter Fuel Pump Module Assembly P76604M
The Carter P76604M fuel pump module assembly is a specific-fit replacement built for OE fit, form, and function. It is engineered for the right-side fuel system location on select Jaguar applications, including 2003-2005 Jaguar S-Type, 2004-2005 Jaguar Vanden Plas, and 2004-2005 Jaguar XJ8.
Key Features
- Electric fuel pump module assembly for direct replacement service
- Specific fit for select Jaguar right-side applications
- Minimum pressure rating of 80.0
- Minimum flow rating of 39
- Quick-connect outlet for streamlined fuel line connection
- Round male connector with pin terminals
- Gasket or seal included for service replacement
- Strainer inlet helps support clean fuel delivery
Product Details
Carter P76604M is a fuel pump module assembly designed for vehicles that require a right-side, OE-style replacement. It uses an electric pump design with a quick-connect outlet, round connector shape, male connector gender, and pin terminal type. The assembly includes a gasket or seal and does not include a fuel filter, wire harness, or mounting hardware. This part cross-references Delphi FG1712 for the same application.
Compatible With 2005 Jaguar S-Type, right; 2005 Jaguar Vanden Plas, right; 2005 Jaguar XJ8, right; 2004 Jaguar S-Type, right; 2004 Jaguar Vanden Plas, right; 2004 Jaguar XJ8, right; 2003 Jaguar S-Type, right. The Carter P76604M is a direct-fit option for Jaguar fuel system service where the original module assembly is being replaced.
Common Uses
- Restoring fuel delivery when the original pump module is worn
- Addressing hard-start or no-start conditions tied to fuel pressure loss
- Replacing a noisy or inconsistent electric fuel pump module
- Correcting fuel supply issues on right-side Jaguar fuel tank applications
- Servicing a leaking module seal or degraded strainer assembly
Installation Notes
Verify the vehicle’s right-side application, model year, and chassis notes before installation. Confirm connector style, outlet type, and fuel line routing match the original module. Replace the seal during service and inspect the tank opening, electrical connector, and fuel lines for wear or contamination before reassembly.
Quality Assurance
Carter fuel systems are built around OE fit, form, and function with broad vehicle coverage and problem-solving design features. The P76604M is a regular-grade replacement fuel pump module assembly for select Jaguar applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Jaguar | S-Type | 4.2L | V8 | Right | California Emissions System compatible |
| 2005 | Jaguar | S-Type | 3.0L | V6 | Right | California Emissions System compatible |
| 2005 | Jaguar | Vanden Plas | 4.2L | V8 | Right | — |
| 2005 | Jaguar | XJ8 | 4.2L | V8 | Right | — |
| 2004 | Jaguar | S-Type | 4.2L | V8 | Right | with California Emissions System; From Chassis # N13089 |
| 2004 | Jaguar | S-Type | 4.2L | V8 | Right | To Chassis # N13088 |
| 2004 | Jaguar | S-Type | 3.0L | V6 | Right | with California Emissions System; From Chassis # N13089 |
| 2004 | Jaguar | S-Type | 3.0L | V6 | Right | To Chassis # N13088 |
| 2004 | Jaguar | Vanden Plas | 4.2L | V8 | Right | From Chassis # G27197 |
| 2004 | Jaguar | XJ8 | 4.2L | V8 | Right | From Chassis # G27197 |
| 2003 | Jaguar | S-Type | 4.2L | V8 | Right | — |
| 2003 | Jaguar | S-Type | 3.0L | V6 | Right | — |
