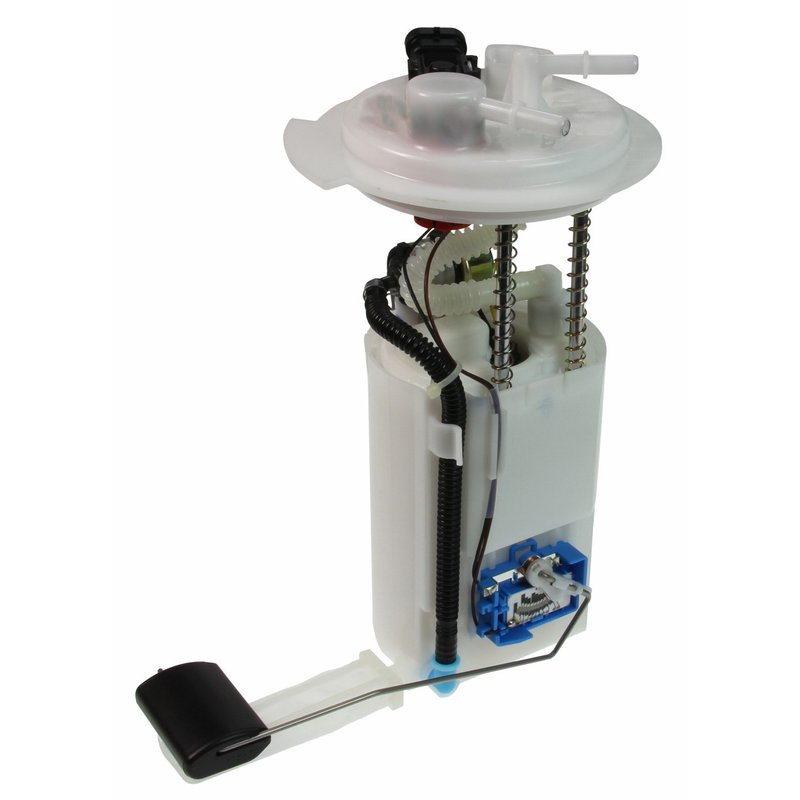

Carter P76616M Fuel Pump Module Assembly
| Brand | Carter P76616M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Outlet Outside Diameter | 7.9 |
| Terminal Type | Spade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | No |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Fuel Filter Included | No |
| Wire Harness Included | No |
| Minimum Flow Rating | 23 |
| Pump Type | Electric |
| Minimum Pressure | 40.0 |
| Voltage | 12v |
| Fits | Hyundai · 2 vehicles |
OE fit, form, function. Application-specific fuel pump module assembly for accurate replacement.
Complete module design. Includes the fuel sending unit and strainer for service replacement.
Electric 12V pump. Built with a 40.0 minimum pressure rating and quick-connect outlet.
Cross-references Delphi FG1728, Spectra Premium SP3005M and 31110-0A600 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Overview
The Carter P76616M fuel pump module assembly is a specific-fit replacement for fuel delivery service on select Hyundai Sonata applications. It combines the pump, sending unit, and strainer in one assembly to restore fuel system operation with OE fit, form, and function.
- Specific-fit fuel pump module assembly for direct application matching
- Electric 12V pump with a 40.0 minimum pressure rating
- Includes fuel sending unit and strainer for complete fuel delivery service
- Trapezoid connector shape with male spade terminals and quick-connect outlet
- Outlet outside diameter measures 7.9 for proper line connection
Detailed Product Description
Built for fuel system replacement work, the Carter P76616M is engineered as a specific-fit module assembly rather than a universal pump. It is intended for 2009-2010 Hyundai Sonata applications and is a practical choice when the original module has worn pump components, inaccurate fuel level reporting, or restricted fuel delivery. The P76616M uses an electric 12V design, a quick-connect outlet, and a strainer inlet to support consistent fuel transfer through the system.
Carter’s fuel systems program emphasizes OE fit, form, and function along with broad vehicle coverage and problem-solving features. For Hyundai Sonata fuel pump module assembly replacement, this part number P76616M provides the core components needed for service in one matched assembly. The included sending unit helps address fuel level signal issues, while the strainer supports cleaner fuel pickup at the module inlet.
What This Part Helps Address
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge readings that no longer track accurately
- Loss of pressure in the fuel supply circuit
- Poor drivability related to restricted fuel pickup
Installation Notes and Tips
Verify connector shape, terminal type, outlet style, and pressure requirements before installation. This module does not include mounting hardware, a gasket or seal, or a wire harness, so confirm the vehicle’s service needs before beginning the job. Use the vehicle’s service information for fuel system depressurization, tank access, and final leak checks.
Quality Assurance
Carter positions this fuel system line around OE fit, form, and function, with product engineering focused on application-specific replacement and vehicle coverage. Part number P76616M is built for the listed Hyundai Sonata fitment and is supported by Carter’s fuel systems program approach to replacement accuracy.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2010 | Hyundai | Sonata | 3.3L | V6 | — |
| 2009 | Hyundai | Sonata | 3.3L | V6 | — |
