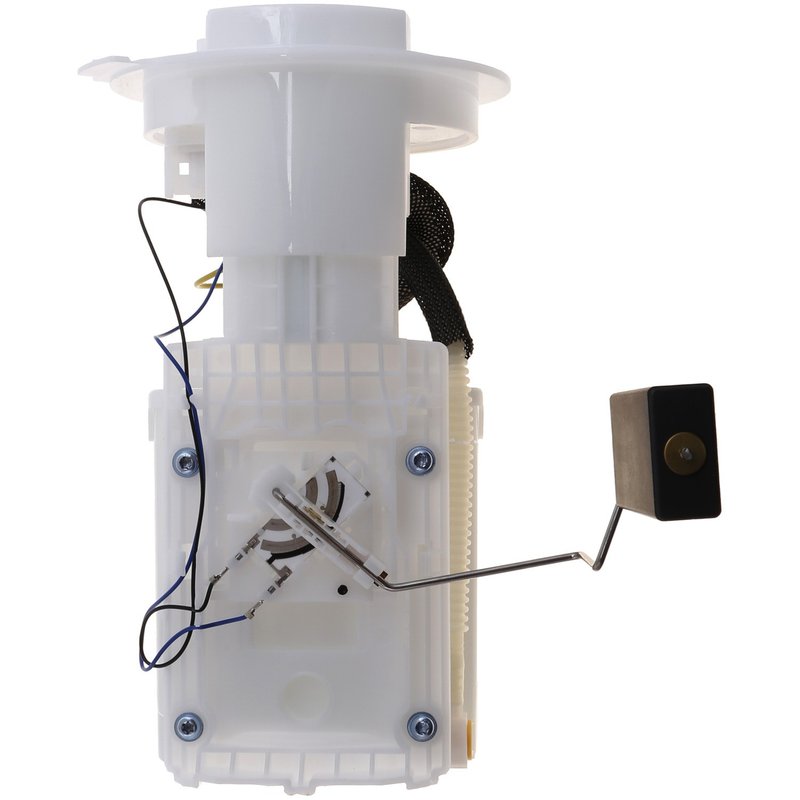

Carter P76626M Fuel Pump Module Assembly

Carter P76626M Fuel Pump Module Assembly

The Carter P76626M fuel pump module assembly is a specific-fit replacement for select Volkswagen fuel systems that require OE-style fit, form, and function. It is built for gas applications and includes the fuel sending unit for accurate fuel level reporting in the tank.

Compatible with 1998-2010 Volkswagen Beetle, 1999-2006 Volkswagen Golf, and 1999-2005 Volkswagen Jetta, this module is a direct-fit option for vehicles with a plastic tank or fuel tank protective coating where noted. The Carter P76626M is a practical choice when replacing a worn in-tank fuel delivery unit on Volkswagen Beetle, Golf, or Jetta models.

• Specific-fit fuel pump module assembly for select Volkswagen applications
• Electric pump type for gas fuel systems
• Fuel sending unit included for fuel level signal output
• Quick-connect inlet and outlet connections
• White female oval connector with blade terminals
• Internal strainer design
• POM housing material
• Resistance range: 50.0 ohms empty, 290.0 ohms full
• Minimum flow rating: 17.0 / 30.4

Detailed Product Overview

Built for OE-style replacement service, the Carter P76626M fuel pump module assembly supports fuel delivery and tank level sensing in one in-tank unit. Its specific-fit design helps match the original configuration on covered Volkswagen Beetle, Golf, and Jetta applications, while the quick-connect inlet and outlet layout simplifies line connection during service. The module uses an internal strainer and a POM housing, and it is configured for gas fuel systems.

This part cross-references Airtex Fuel Pumps E8705M and Delphi FG1079 for the same application. For shoppers searching for a Volkswagen Beetle fuel pump module assembly, Volkswagen Golf fuel pump replacement, or Volkswagen Jetta in-tank fuel pump module, the Carter P76626M provides a direct-reference option for the listed vehicles.

Common Problems This Part Can Address

• Hard starting caused by weak in-tank fuel delivery
• Engine stalling from inconsistent fuel pressure
• Incorrect fuel gauge readings from a failing sending unit
• Fuel starvation under load from a worn pump module
• Intermittent operation related to aging electrical pump components

Installation Notes and Tips

Verify tank style and application notes before installation. This module is listed for Volkswagen Beetle models with a plastic tank and fuel tank protective coating, Volkswagen Golf models with fuel tank protective coating, and Volkswagen Jetta models with a plastic tank and fuel tank protective coating. Confirm connector shape, connector gender, inlet and outlet type, and top mount diameter before removing the original unit. Because the gasket or seal and lock ring are not included, reuse or source the required sealing components separately as needed.

Quality Assurance

Carter Fuel Systems focuses on OE fit, form, and function with broad vehicle coverage and problem-solving fuel system designs. The P76626M follows that approach with a specific-fit configuration for the listed Volkswagen applications and a fuel sending unit included for integrated replacement service.
