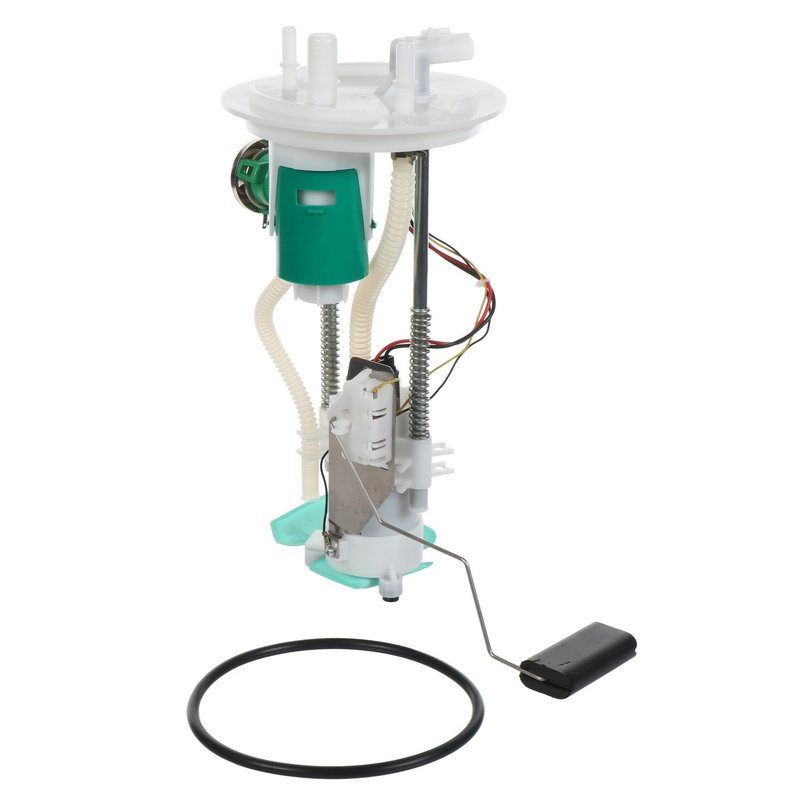

Carter P76657M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Expedition and Lincoln Navigator

The Carter P76657M fuel pump module assembly is designed specifically for Ford Expedition and Lincoln Navigator models. This electric fuel pump module ensures consistent fuel delivery with integrated components to maintain optimal engine performance.

• Fuel sending unit included for accurate fuel level readings
• Electric pump type with a minimum flow rating of 30
• Outlet outside diameter of 9.5 mm with quick connect outlet type
• Includes strainer and gasket/seal for secure installation
• Blade terminal type with male terminal gender and rectangular connector shape
• Inlet port type with 3/8 inch fitting thread size and 5/16 inch outlet fitting thread size
• Designed for 12-volt electrical systems
• Specific fit for Ford Expedition and Lincoln Navigator vehicles

Detailed Product Description

The Carter P76657M fuel pump module assembly is engineered to meet the exact specifications of Ford Expedition and Lincoln Navigator models. This assembly includes a fuel sending unit, allowing the vehicle’s fuel gauge to provide accurate readings. The electric pump operates at 12 volts and delivers a minimum flow rating of 30, with a minimum pressure of 70 psi, ensuring steady fuel supply under various driving conditions. The module features a 9.5 mm outlet diameter with a quick connect outlet type for efficient fuel line connection. The inlet port uses a 3/8 inch fitting thread size, while the outlet fitting thread size is 5/16 inch, matching factory specifications. The blade terminal type with male gender and rectangular connector shape facilitates straightforward electrical connections. Included strainer and gasket/seal components help maintain fuel system integrity and prevent contaminants from entering the fuel system.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Expedition and Lincoln Navigator
• Resolves inaccurate fuel gauge readings due to faulty fuel sending units
• Addresses fuel delivery interruptions causing engine hesitation or stalling
• Prevents fuel leaks with included gasket and seal components
• Improves overall fuel system reliability and performance

Installation Notes and Tips

Installation of the Carter P76657M fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket and seal should be replaced to prevent leaks. Verify electrical connections match the blade terminal and rectangular connector shape for proper fit. Since mounting hardware and wire harness are not included, reuse existing components or source compatible parts as needed. Follow manufacturer torque specifications for inlet and outlet fittings to maintain system integrity.

Quality Assurance and Warranty

Carter fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The P76657M part number undergoes rigorous testing to ensure durability and reliable performance in Ford Expedition and Lincoln Navigator vehicles. This product includes a gasket and strainer to support long-term operation. Warranty coverage details should be confirmed with the product documentation or supplier.
