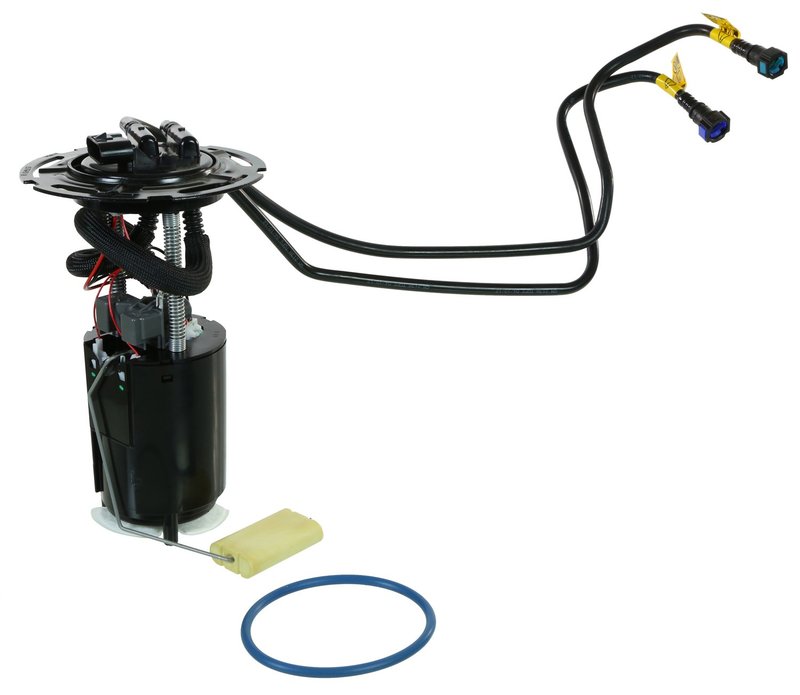

Carter P76680M Fuel Pump Module Assembly
| Brand | Carter P76680M |
|---|---|
| Fuel Sending Unit Included | Yes |
| Wiring Harness Length | 300.0 |
| Wire Gauge Measurement | 20 |
| Connector Color | Black |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| Wire Harness Included | Yes |
| Minimum Flow Rating | 16 |
| Pump Type | Electric |
| Minimum Pressure | 60.0 |
| Outlet Fitting Thread Size | 1/4 |
| Voltage | 12v |
| Fits | Chevrolet and Pontiac · 4 vehicles |
Specific-fit design. Built for application-matched fuel system replacement.
Complete module service. Includes sending unit, strainer, seal, and wiring harness.
OE fit, form, function. Carter fuel system engineering for direct replacement service.
Cross-references Airtex Fuel Pumps E3782M, 1234770 and 2920729 for the same application. See all 11.
Fuel Pump Module Assembly for Specific Applications
The Carter P76680M fuel pump module assembly is built for specific-fit applications and combines the pump, sending unit, strainer, and seal in one service part. It is a practical replacement for fuel delivery issues on Chevrolet Cobalt and Pontiac G5 applications that match the listed fitment.
- Specific-fit fuel pump module assembly for direct application matching
- Includes fuel sending unit, strainer, gasket or seal, and wiring harness
- Electric 12V pump with a quick-connect outlet and oval male connector
- Plastic housing with a 4-wire, 4-terminal harness layout
- Minimum pressure rating of 60.0 and minimum flow rating of 16
Detailed Product Overview
Use this Carter fuel pump module assembly when the original in-tank fuel delivery unit needs replacement and the vehicle calls for the listed configuration. The P76680M is built with a plastic housing, blade terminals, black connector, and a port inlet, and it includes the sending unit and strainer for a more complete service replacement. This part cross-references Airtex Fuel Pumps E3782M for the same application.
Carter Fuel Systems focuses on OE fit, form, and function with application coverage aimed at solving common fuel system service needs. For Chevrolet Cobalt and Pontiac G5 owners, the P76680M provides a fitment-specific option that aligns with the original system layout.
What This Part Helps Address
- Hard starting caused by weak or failing fuel delivery
- Fuel pressure loss from a worn in-tank pump module
- Fuel gauge inaccuracies related to a faulty sending unit
- Fuel leaks at the module seal or connection points
- Poor fuel delivery from a restricted or damaged strainer
Installation Notes and Tips
Verify the vehicle’s connector, harness, and outlet style against the listed attributes before installation. Fitment notes indicate that some applications may require wiring harness 888-601, and one Pontiac G5 application excludes Partial Zero Emissions Vehicle configurations. Check prior to installation to confirm the exact match for the vehicle.
Quality Assurance
Carter positions this fuel system program around OE fit, form, and function. The P76680M is a specific-fit replacement built for the listed applications and supported by Carter’s fuel system engineering approach.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2010 | Chevrolet | Cobalt | 2.2L | L4 | Check prior to installation, may require wiring harness 888-601. |
| 2010 | Pontiac | G5 | 2.2L | L4 | May Require Wiring Harness 888-601. Check Prior to Installation; Except Partial Zero Emissions Vehicle |
| 2009 | Chevrolet | Cobalt | 2.2L | L4 | Check prior to installation, may require wiring harness 888-601. |
| 2009 | Pontiac | G5 | 2.2L | L4 | Check prior to installation, may require wiring harness 888-601. |
