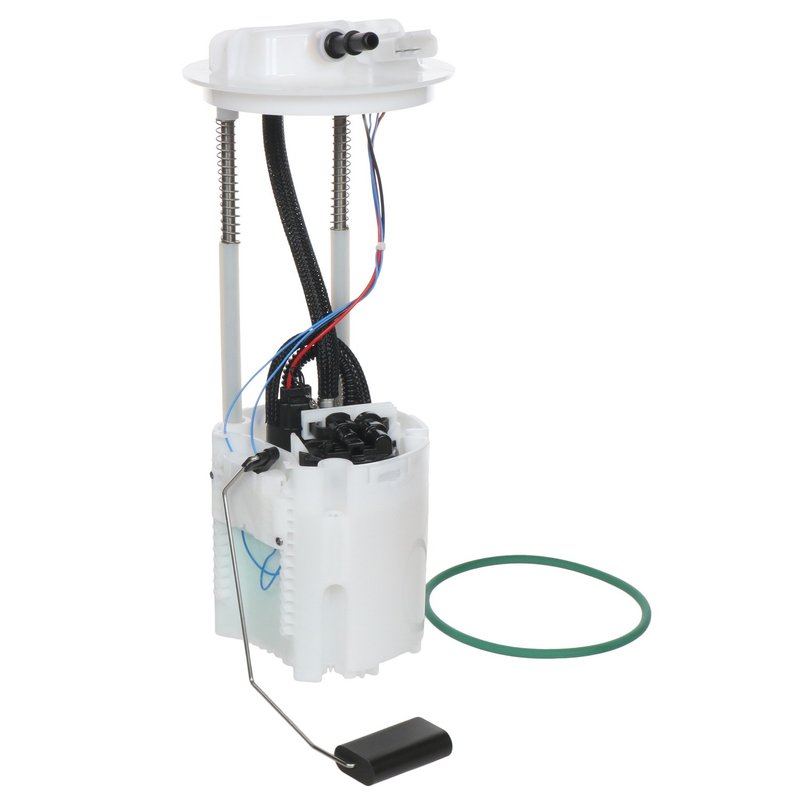

Carter P76702M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram 1500

The Carter P76702M fuel pump module assembly is designed specifically for Dodge Ram 1500 models, providing precise fuel delivery and consistent performance. This electric fuel pump module includes essential components to ensure proper fuel system operation and vehicle reliability.

Key Features of Carter P76702M Fuel Pump Module

• Fuel sending unit included for accurate fuel level readings
• Electric pump type with a minimum flow rating of 39 gallons per hour
• Outlet outside diameter of 9.5 mm with quick connect outlet type
• Blade terminal type with male terminal gender and rectangular connector shape
• Includes gasket or seal and strainer for secure installation and filtration
• Inlet port type with 3/8 inch fitting thread size
• Designed for 12-volt electrical systems with a minimum pressure rating of 58 psi
• Specific fitment for Dodge Ram 1500 ensuring compatibility and performance

Detailed Description of the Carter Fuel Pump Module Assembly

The Carter P76702M fuel pump module assembly is engineered to meet the exact specifications of Dodge Ram 1500 trucks. This module integrates an electric fuel pump with a built-in fuel sending unit, allowing for accurate fuel level monitoring. The assembly features a quick connect outlet and a port-type inlet with a 3/8 inch fitting thread size, facilitating straightforward connection to the vehicle's fuel system. The included strainer helps prevent debris from entering the pump, while the gasket or seal ensures a leak-free installation. The blade terminal type with a rectangular connector shape and male terminal gender supports secure electrical connections. Rated for 12 volts, this fuel pump module maintains a minimum pressure of 58 psi and a flow rate of 39 gallons per hour, supporting efficient fuel delivery under regular driving conditions.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Dodge Ram 1500 fuel systems
• Resolves fuel gauge inaccuracies by including the fuel sending unit
• Eliminates fuel delivery interruptions caused by faulty or worn pumps
• Prevents engine stalling and hesitation due to inconsistent fuel supply
• Replaces damaged or leaking fuel pump modules to maintain system integrity

Installation Notes and Tips

• Ensure compatibility with Dodge Ram 1500 model year before installation
• Use the included gasket or seal to prevent fuel leaks during assembly
• Verify electrical connections match the blade terminal and rectangular connector shape
• Check fuel lines for proper fit with the 9.5 mm outlet diameter and quick connect type
• Follow vehicle manufacturer guidelines for fuel system depressurization before removal

Quality Assurance and Warranty Information

Carter fuel pump modules are manufactured to meet OEM standards for durability and performance. The P76702M part undergoes rigorous testing to ensure reliable operation within the Dodge Ram 1500 fuel system. While specific warranty details may vary, Carter typically offers coverage against defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
