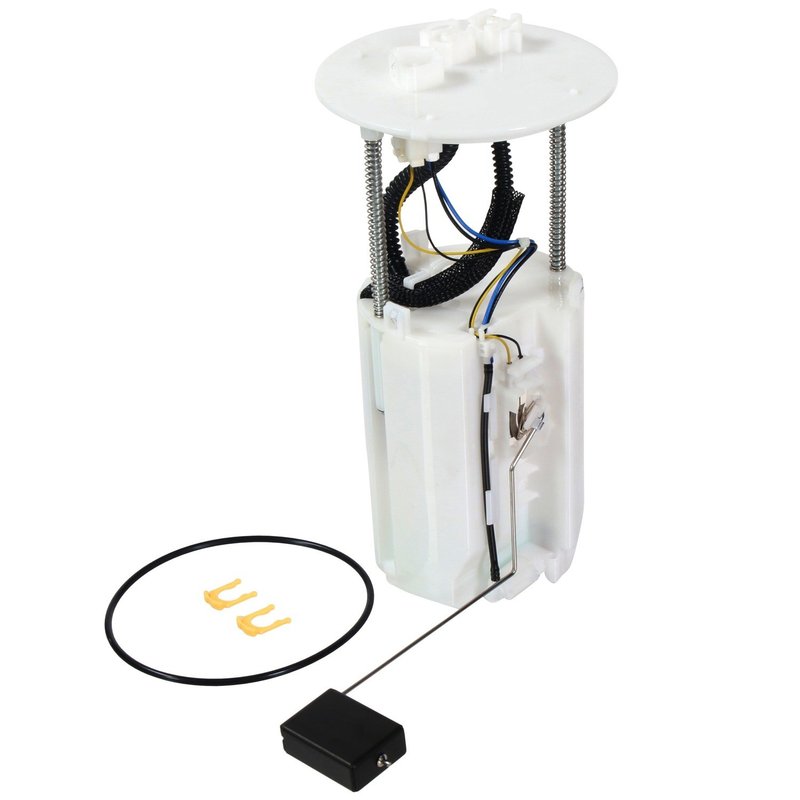

Carter P76713M Fuel Pump Module Assembly

Brand Carter P76713M
Fuel Sending Unit Included Yes
Outlet Outside Diameter 7.9
Terminal Type Spade
Mounting Hardware Included No
Universal Or Specific Fit Specific
Grade Type Regular
Connector Shape Trapezoid
Gasket Or Seal Included Yes
Terminal Quantity 4
Connector Gender Male
Strainer Included Yes
Inlet Type Port
Outlet Type Quick connect
Fuel Filter Included No
Wire Harness Included No
Minimum Flow Rating 28
Minimum Flow Rating 43
Pump Type Electric
Inlet Fitting Thread Size 5/16
Minimum Pressure 41.0
Voltage 12v
Fits Toyota · 54 vehicles

OE fit, form, function. Built for a specific fit with premium replacement performance.

Fuel pump module assembly. An electric fuel delivery module with sending unit, strainer, and seal.

Quick-connect outlet. Spade terminals and a trapezoid connector simplify installation.

Cross-references Airtex Fuel Pumps E8806M, Delphi FG0931 and Delphi FG0932 for the same application. See all 17.

$132.63Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $132.63
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Carter P76713M Fuel Pump Module Assembly

The Carter P76713M fuel pump module assembly is a specific-fit replacement for select Toyota trucks and SUVs, including Toyota Tundra and Toyota Sequoia applications. Built for OE fit, form, and function, it combines the fuel pump, sending unit, and strainer in one assembly for direct replacement service.

Key Features

  • Specific-fit fuel pump module assembly for select Toyota applications
  • Electric 12V pump with a minimum pressure rating of 41.0
  • Fuel sending unit included for accurate fuel level reporting
  • Strainer included and gasket or seal included
  • Quick connect outlet with trapezoid male connector and 4 terminals
  • Outlet outside diameter: 7.9; inlet fitting thread size: 5/16
  • Regular grade replacement built for OE-style fit and function

Detailed Description

Carter P76713M is a fuel pump module assembly engineered for direct replacement in Toyota fuel system service. It is listed for 2007-2019 Toyota Tundra with seal, 2014-2020 Toyota Tundra with seal and 26 gallon tank, 2008-2018 Toyota Sequoia with seal, 2019 Toyota Sequoia with seal to 11/2018, and 2021-2022 Toyota Tundra and Toyota Sequoia applications. This part number, P76713M, is built around OE-style fitment details that matter during fuel pump replacement, including the included sending unit, strainer, and seal.

This part cross-references Airtex Fuel Pumps (e.g., E8806M) for the same application.

What It Helps Address

  • Hard starting caused by a weak or failing in-tank fuel pump
  • Inaccurate fuel gauge readings from a worn sending unit
  • Fuel delivery loss under load or during acceleration
  • Fuel starvation from a restricted or damaged strainer
  • Seal-related leaks at the module interface

Installation Notes and Tips

Verify the vehicle year, model, tank configuration, and notes before installation. This module uses a quick connect outlet, a male trapezoid connector, and 4 terminals, so connector and line matching should be confirmed before service. Mounting hardware is not included, and the fuel filter is not included. Use the included gasket or seal during installation and inspect the tank opening, electrical connector, and fuel lines for wear before reassembly.

Quality Assurance

Carter’s fuel systems program focuses on OE fit, form, and function with broad vehicle coverage and problem-solving design features. P76713M follows that approach for Toyota Tundra and Toyota Sequoia fuel system replacement.

This part fits 54 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersFuel TypeNotes
2022ToyotaSequoia—5.7LV8——
2021ToyotaTundra1794 Edition5.7LV8——
2020ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2019ToyotaSequoia—5.7LV8—Includes Seal; To 11/2018
2019ToyotaTundra—4.6LV8—Includes Seal
2019ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2018ToyotaSequoia—5.7LV8GASIncludes Seal
2018ToyotaTundra—4.6LV8—Includes Seal
2018ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2017ToyotaSequoia—5.7LV8GASIncludes Seal
2017ToyotaTundra—4.6LV8—Includes Seal
2017ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2016ToyotaSequoia—5.7LV8GASIncludes Seal
2016ToyotaTundra—4.6LV8—Includes Seal
2016ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2015ToyotaSequoia—5.7LV8GASIncludes Seal
2015ToyotaTundra—4.6LV8—Includes Seal
2015ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2014ToyotaSequoia—5.7LV8GASIncludes Seal
2014ToyotaTundra—4.6LV8—Includes Seal
2014ToyotaTundra—4.0LV6—Includes Seal
2014ToyotaTundra—5.7LV8GASIncludes Seal; with 26 Gallon Tank
2013ToyotaSequoia—5.7LV8GASIncludes Seal
2013ToyotaTundra—4.6LV8—Includes Seal
2013ToyotaTundra—4.0LV6—Includes Seal
2013ToyotaTundra—5.7LV8GASIncludes Seal
2012ToyotaSequoia—4.6LV8—Includes Seal
2012ToyotaSequoia—5.7LV8GASIncludes Seal
2012ToyotaTundra—4.6LV8—Includes Seal
2012ToyotaTundra—4.0LV6—Includes Seal
2012ToyotaTundra—5.7LV8GASIncludes Seal
2011ToyotaSequoia—4.6LV8—Includes Seal
2011ToyotaSequoia—5.7LV8GASIncludes Seal
2011ToyotaTundra—4.6LV8—Includes Seal
2011ToyotaTundra—4.0LV6—Includes Seal
2011ToyotaTundra—5.7LV8GASIncludes Seal
2010ToyotaSequoia—4.6LV8—Includes Seal
2010ToyotaSequoia—5.7LV8GASIncludes Seal
2010ToyotaTundra—4.6LV8—Includes Seal
2010ToyotaTundra—4.0LV6—Includes Seal
2010ToyotaTundra—5.7LV8GASIncludes Seal
2009ToyotaSequoia—4.7LV8—Includes Seal
2009ToyotaSequoia—5.7LV8GASIncludes Seal
2009ToyotaTundra—4.0LV6—Includes Seal
2009ToyotaTundra—4.7LV8—Includes Seal
2009ToyotaTundra—5.7LV8GASIncludes Seal
2008ToyotaSequoia—5.7LV8—Includes Seal
2008ToyotaSequoia—4.7LV8—Includes Seal
2008ToyotaTundra—5.7LV8—Includes Seal
2008ToyotaTundra—4.0LV6—Includes Seal
2008ToyotaTundra—4.7LV8—Includes Seal
2007ToyotaTundra—5.7LV8—Includes Seal
2007ToyotaTundra—4.0LV6—Includes Seal
2007ToyotaTundra—4.7LV8—Includes Seal
Directly replaces or cross-references 17 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E8806MDelphi — FG0931Delphi — FG0932Spectra Premium — SP9009M77020-0C07077020-0C07177020-0C07277020-0C08215033712347462920651A30433C0686MC15112809TGE8869MM2496393P76710M
