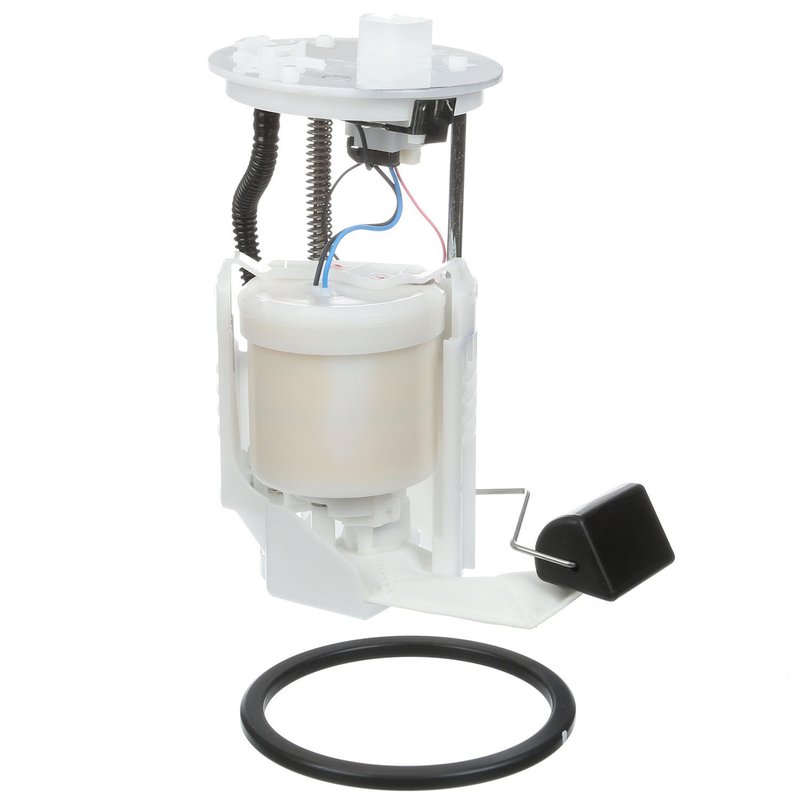

Carter P76796M Fuel Pump Module Assembly
| Brand | Carter P76796M |
|---|---|
| Wiring Harness Length | 300.0 |
| Wire Gauge Measurement | 18 |
| Connector Color | White |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Top Mount Diameter | 109.0 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| Wire Harness Included | No |
| Minimum Flow Rating | 18 |
| Pump Type | Electric |
| Minimum Pressure | 50.0 |
| Fits | Toyota · 5 vehicles |
OE fit, form, function. Built as a specific-fit fuel pump module assembly for targeted replacement.
Electric pump design. Delivers fuel with a 50.0 minimum pressure rating and 18 minimum flow rating.
Seal included. Features a plastic housing, oval connector, and quick-connect outlet.
Cross-references Airtex Fuel Pumps E8937M, Delphi FG1170 and 77020-06130 for the same application. See all 11.
Fuel Pump Module Assembly Overview
The Carter P76796M fuel pump module assembly is a specific-fit replacement built for fuel delivery service on select Toyota applications. It combines OE fit, form, and function with application-specific coverage for a direct replacement approach.
- Specific-fit fuel pump module assembly for targeted vehicle applications
- Electric pump design with a 50.0 minimum pressure rating
- Plastic housing with a gasket or seal included
- Oval female connector with blade terminals and a quick-connect outlet
- White connector color and 4-wire harness interface
Fitment Details
Fits 2007-2011 Toyota Camry, N/A, with California Emissions System; Except Japan Built.
For Toyota Camry fuel pump module assembly replacement, verify the emissions configuration and build origin before installation. The P76796M uses a port inlet, one outlet, and a 300.0 harness length with 18-gauge wiring. This part cross-references Airtex Fuel Pumps (e.g., E8937M) and Delphi (e.g., FG1170) for the same application.
Common Uses
- Restores fuel delivery when the original module no longer maintains pressure
- Addresses hard starting caused by weak or inconsistent pump output
- Helps correct fuel starvation under load
- Replaces a worn module with damaged connectors, terminals, or seal surfaces
- Supports repair of fuel system issues tied to the in-tank pump assembly
Installation Notes
Confirm the connector shape, terminal count, outlet style, and top mount diameter before installation. This module includes a gasket or seal, and mounting hardware is not included. Match the vehicle’s emissions system and build specification to the listed fitment for proper application.
Quality Assurance
Carter Fuel Systems emphasizes premium OE fit, form, and function, along with application coverage and problem-solving design features.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2011 | Toyota | Camry | 2.5L | L4 | with California Emissions System; Except Japan Built |
| 2010 | Toyota | Camry | 2.5L | L4 | with California Emissions System; Except Japan Built |
| 2009 | Toyota | Camry | 2.4L | L4 | with California Emissions System; Except Japan Built |
| 2008 | Toyota | Camry | 2.4L | L4 | with California Emissions System; Except Japan Built |
| 2007 | Toyota | Camry | 2.4L | L4 | with California Emissions System; Except Japan Built |
