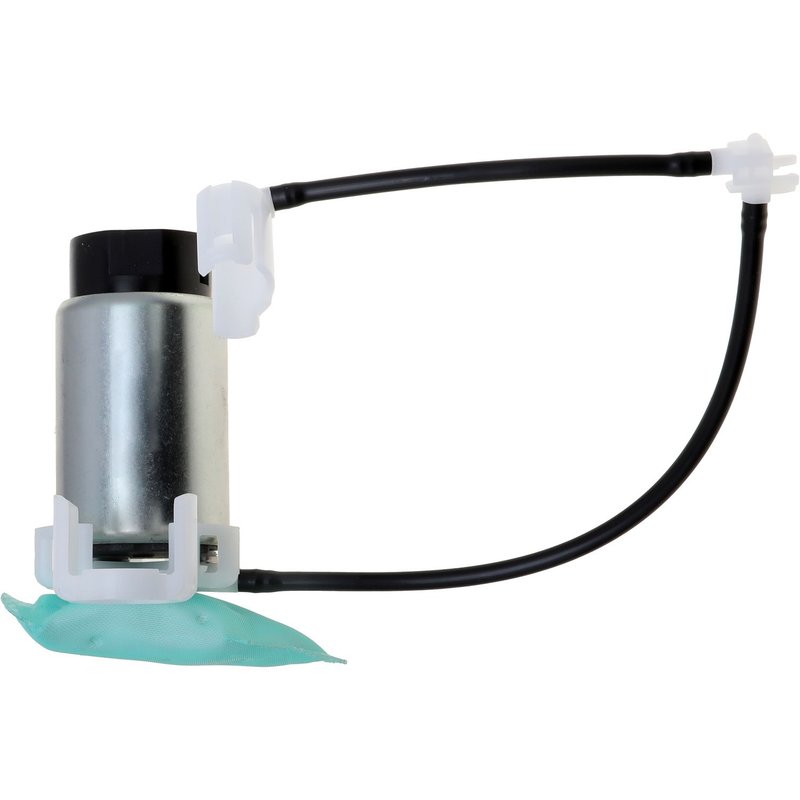

Carter P76811 Fuel Pump and Strainer Set

Overview

The Carter P76811 fuel pump and strainer set is built for gasoline applications with an in-tank electric pump design. It is engineered for OE fit, form, and function, making it a direct replacement option for service work on compatible Toyota fuel systems.

Compatible With 2009-2014 Toyota Matrix and 2009-2013 Toyota Corolla applications, this assembly includes a strainer and uses a 12V electric pump with a blade terminal design. The Carter P76811 is a practical choice when restoring fuel delivery performance and replacing a worn in-tank unit.

Key Features

• In-tank electric fuel pump for gasoline applications
• Includes a multi-layer strainer for fuel filtration at the pickup point
• 12V electrical design with blade terminals and a rectangular connector
• Female outlet configuration with one outlet connection
• OE fit, form, and function focus from Carter Fuel Systems

Detailed Description

The Carter P76811 is a fuel pump and strainer set designed for in-tank installation on select Toyota applications. It is specified for gasoline use and features a minimum pressure rating of 44, a minimum flow rating of 23, and an average current draw of 6.5, supporting consistent fuel delivery in the vehicle’s fuel system. The white, multi-layer strainer helps filter fuel at the pump inlet, while the electric pump layout and rectangular connector support straightforward replacement of the original assembly.

This part fits 2009-2014 Toyota Matrix and 2009-2013 Toyota Corolla applications, making it relevant for owners addressing fuel delivery concerns on these platforms. The Carter P76811 is also cross-referenced to DENSO Auto Parts 950-0230 for the same application.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation from insufficient fuel pressure
• Fuel starvation from a worn in-tank pump
• Poor filtration at the pump pickup point
• Intermittent drivability issues tied to pump wear

Installation Notes

Install this unit in the fuel tank and verify connector style, terminal layout, inlet and outlet dimensions, and fuel system requirements before replacement. The P76811 does not include a regulator, gasket, seal, or wiring harness, so those items must be confirmed separately during service. Always follow the vehicle service procedure for fuel system depressurization and electrical disconnection before removal.

Quality Assurance

Carter Fuel Systems emphasizes premium OE fit, form, and function, along with broad vehicle coverage and problem-solving design features. The P76811 follows that product approach for service replacement on compatible Toyota fuel systems.
