CarterPart #: P77016M

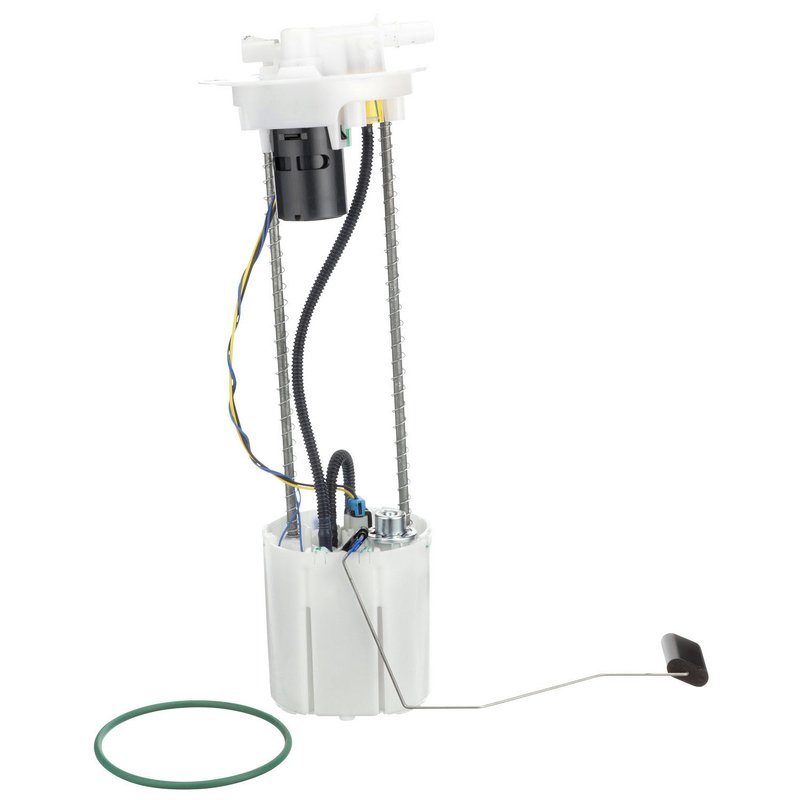

Carter P77016M Fuel Pump Module Assembly
34 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$305.84Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, Sierra 2500 HD, Sierra 3500 HD, Silverado 2500 HD, and Silverado 3500 HD
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Fuel Pump Module Assembly options
Carter P77016M Fuel Pump Module Assembly
| Brand | Carter |
|---|---|
| Part Number | P77016M |
| Fuel Sending Unit Included | Yes |
| Housing Width | 129 |
| Wiring Harness Length | 380.0 |
| Wire Gauge Measurement | 20 |
| Connector Color | White |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Height | 128 |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 4 |
| Grade Type | Regular |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Acetal |
| Terminal Quantity | 4 |
| Top Mount Diameter | 152.0 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Port |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| Wire Harness Included | No |
| Minimum Flow Rating | 36 |
| Pump Type | Electric |
| Minimum Pressure | 55.0 |
| Outlet Fitting Thread Size | 1/2 |
| Voltage | 12v |
This part fits 34 vehicles. Search below:
| Year | Make | Model | Body Type | Bed Length | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2014 | Chevrolet | Silverado 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | GAS | N/A | ||
| 2014 | Chevrolet | Silverado 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | FLEX | N/A | ||
| 2014 | Chevrolet | Silverado 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2014 | Chevrolet | Silverado 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2014 | GMC | Sierra 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | FLEX | N/A | ||
| 2014 | GMC | Sierra 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | GAS | N/A | ||
| 2014 | GMC | Sierra 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2014 | GMC | Sierra 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2013 | Chevrolet | Silverado 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | GAS | N/A | ||
| 2013 | Chevrolet | Silverado 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | FLEX | N/A | ||
| 2013 | Chevrolet | Silverado 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2013 | Chevrolet | Silverado 3500 HD | Extended Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2013 | Chevrolet | Silverado 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2013 | GMC | Sierra 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | FLEX | N/A | ||
| 2013 | GMC | Sierra 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | GAS | N/A | ||
| 2013 | GMC | Sierra 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2013 | GMC | Sierra 3500 HD | Extended Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2013 | GMC | Sierra 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2012 | Chevrolet | Silverado 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | N/A | |||
| 2012 | Chevrolet | Silverado 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2012 | Chevrolet | Silverado 3500 HD | Extended Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2012 | Chevrolet | Silverado 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2012 | GMC | Sierra 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | N/A | |||
| 2012 | GMC | Sierra 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2012 | GMC | Sierra 3500 HD | Extended Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2012 | GMC | Sierra 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2011 | Chevrolet | Silverado 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | N/A | |||
| 2011 | Chevrolet | Silverado 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2011 | Chevrolet | Silverado 3500 HD | Extended Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2011 | Chevrolet | Silverado 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2011 | GMC | Sierra 2500 HD | 6' 6" Foot Bed | 6.0L | V8 | N/A | |||
| 2011 | GMC | Sierra 3500 HD | Crew Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2011 | GMC | Sierra 3500 HD | Extended Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A | ||
| 2011 | GMC | Sierra 3500 HD | Standard Cab Pickup | 6' 6" Foot Bed | 6.0L | V8 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
1357763213581920135897072920891A49000D0391ME4042MFG1746M3542436MU1960SP4088M
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
